The BIG-IP Administration Control Plane Administration (F5CAB4) exam (F5CAB4)

A BIG-IP device group cannot be deleted if it still contains device members , even if one of those devices has already been decommissioned or is unreachable. Before deleting the device group, the administrator must explicitly remove the decommissioned device from the device group configuration .

Once the removed or unreachable device is deleted from the device group membership, the BIG-IP system allows the remaining administrator to successfully delete the device group.

Why the other options are incorrect:

A. Remove all members from the device group This is not required; the key requirement is removing the decommissioned device , not all members.

B. Make sure all members are in sync Synchronization status does not prevent device group deletion.

D. Disable the device group Device groups cannot be disabled; they must be modified or deleted.

Therefore, the correct prerequisite action is to remove the decommissioned device from the device group , making C the correct answer.

===========

In F5 TMOS, administrative roles and user permissions are partition-specific. The User Manager role allows an account to manage other user accounts, but this authority is restricted to the administrative partitions to which the User Manager has been granted access.

Partition Awareness: If User1 (the User Manager) attempts to modify User2 and fails, while the full Administrator succeeds, it indicates that User2 resides in a partition where User1 does not have management rights.

Principle of Least Privilege: This principle dictates that a user should be given only the minimum level of access necessary to perform their job functions.

Procedural Solution: Granting " Administrator " privileges (Option B) would violate least privilege by giving User1 full control over all system settings and all partitions. Moving users between partitions (Options A and C) might disrupt the organizational security structure. The correct and most secure administrative action is to modify the partition access for User1 to include the partition where User2 is located. This enables User1 to manage User2’s properties while maintaining their restricted role as a User Manager.

On BIG-IP systems, authentication and authorization events are logged in /var/log/secure . This includes:

Successful and failed SSH login attempts

Invalid user authentication attempts

PAM (Pluggable Authentication Module) authentication failures

Access denials related to secure services

Why the other options are incorrect:

/var/log/messages contains general system messages and service events, not detailed authentication failures.

/var/log/audit records administrative configuration changes (who changed what and when), not login attempts.

/var/log/ltm logs traffic-management (TMM) and application-related events.

Therefore, the correct log file for investigating unauthorized SSH login attempts is /var/log/secure .

===========

A QKView is a comprehensive snapshot of the device ' s Control Plane state, configuration, and logs used for troubleshooting. By default, the qkview utility stores its generated output file in the /var/tmp/ directory. Administrators must know this path to retrieve the file for upload to F5 iHealth or Support.

On a BIG-IP system, remote syslog server configuration is managed through the logging configuration framework. In the Configuration Utility, this is accessed via:

System > Logs > Configuration

This section allows the administrator to:

Define remote syslog destinations

Configure log publishers

Control which log types (system, audit, LTM, ASM, etc.) are forwarded to external syslog servers

Why the other options are incorrect:

A. System > Configuration > Local Traffic Used for traffic management settings, not logging.

C. System > Logs > Audit Displays audit log settings and content but does not configure remote syslog destinations.

D. System > Configuration > Device Used for device-level settings such as hostname and platform configuration, not logging.

Therefore, the correct location to reconfigure BIG-IP to send logs to new syslog servers is System > Logs > Configuration .

===========

Maintaining an accurate and synchronized clock across all members of a device group is a fundamental requir5ement for the BIG-IP Control P6lane to establis7h and maintain device tru8st9.

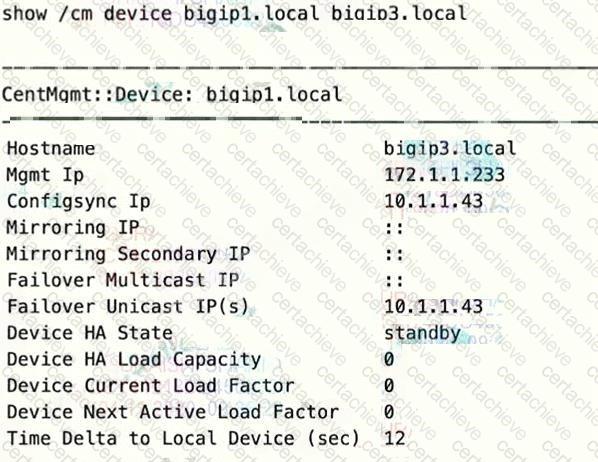

Time Delta Impact : As shown in the exhibit, the " Time Delta to Local Device (sec) " is 12 .

Trust Mechanism : Device trust relies on secure certificate-based communication (SSL/TLS) . If the time difference between devices is too large (typically more than a few seconds), the Control Plane cannot validate the certificates, leading to a failure in the trust relationship .

ConfigSync Failure : When device trust is broken due to time drift, the systems cannot verify the identity of the peer, which directly prevents the ConfigSync process from executing on the affected device, such as bigip3.local in this scenario.

Resolution : Administrators must ensure that all devices in a high availability pair are configured to use the same reliable NTP servers to keep their system clocks aligned.

The correct command for restoring an encrypted UCS archive via the command line is D. load /sys ucs <</b> filepath > passphrase <</b> password > .
