The BIG-IP Administration Support and Troubleshooting (F5CAB5) exam (F5CAB5)

Comprehensive and Detailed 150 to 250 Words Explanation From BIG-IP Administration, Support, and Troubleshooting Documents:

AQKViewfile is the primary diagnostic support bundle used by F5 Support to troubleshoot BIG-IP system issues. It contains comprehensive system information, including running configuration, licensing details, module provisioning, hardware status, software versions, log files, statistics, and the output of numerous diagnostic commands. Generating a QKView is a standard and recommended first step when investigating performance problems, configuration issues, or when opening a support case with F5.

In the BIG-IP Configuration Utility (GUI), the correct and supported location to generate a QKView isSystem > Support. This menu is specifically designed for support and troubleshooting operations. From this section, administrators can generate a QKView file, monitor its creation progress, download it locally, or upload it directly to F5 iHealth for automated analysis. This workflow is clearly documented in BIG-IP Administration and Support guides and aligns with F5 best practices.

The other menu options are not appropriate:

System > Configurationis used for system-wide settings such as DNS, NTP, and device identity.

System > Archiveis used to create UCS backup files, which are configuration backups, not diagnostic bundles.

System > Logsis used only for viewing system logs, not generating support files.

Therefore,System > Supportis the correct and only valid answer.

Comprehensive and Detailed Explanation From BIG-IP Administration Supp13ort and Troubleshooting documents: When troubleshooting a Virtual Server that is not working as expected, it is critical to ensure that the applied profiles match the type of traffic being processed. SSH (Secure Shell) is a non-HTTP protocol that operates over TCP. The exhibit indicates that an HTTP profile is applied to the Virtual Server14. An HTTP profile instructs the BIG-IP system to parse traffic as HTTP; however, since SSH traffic does not follow HTTP specifications, the BIG-IP ' s parser will fail to understand the data stream, typically resulting in dropped packets or reset connections15. To fix this, the administrator must set the HTTP profile to " None " 16. This allows the Virtual Server to act as a " Standard " or " FastL4 " listener that passes the encrypted SSH data transparently to the backend pool members without attempting application-layer inspection. This highlights a common troubleshooting step: verifying that L7 profiles are not inadvertently applied to L4 traffic, which disrupts the expected traffic flow between the client and the server.

When traffic " stabilizes after a few minutes " following a failover, it points to a network-level performance issue involving ARP cache on upstream routers and switches. Each BIG-IP interface has a unique hardware MAC address. During failover, the Standby device takes over the floating IP address, but the upstream switch still associates that IP with the MAC of the now-offline device. Traffic is lost until the switch learns the new MAC or its ARP entry expires. " MAC Masquerading " solves this by creating a shared, virtual MAC address for the floating traffic group. This virtual MAC is used by whichever device is currently active. Because the MAC address for the virtual server IP never changes from the perspective of the network, the upstream devices do not need to update their ARP tables. This troubleshooting solution eliminates the delay associated with failover, providing a seamless transition and ensuring that application traffic flow is not disrupted when the BIG-IP HA state changes.

BIG-IP status icons provide immediate visual feedback regarding the state of an object based on its availability and enabled/disabled status.

Color (Black): The color black indicates that an object has been manually Disabled by an administrator.

Shape (Circle): The circular shape indicates that the object is Available (i.e., its health monitors are passing).

Scenario Result: Since the virtual server is manually disabled (Black) but its associated pool has a working health monitor that is currently passing (Circle), the resulting icon is a Black Circle .

When load balancing is not working as 23expected and connections appear skewed across physical hardware, the administrator must distinguish between " member " 24 and " node " level balancing. A " member " refers to a specific IP and Port combination (e.g., 10.1.1.1:80), whereas a " node " refers to the underlying IP address (10.1.1.1) regardless of the port25. If a single server hosts multiple services (Web, FTP, API) across different pools, using " Least Connections (member) " would only balance connections within each individual pool26. This could lead to a scenario where one server is overwhelmed because it is winning the " least connections " count in three different pools simultaneously. By selecting " Least Connections (node), " the BIG-IP tracks the total number of concurrent connections to the physical IP address across all pools it belongs to27. This ensures that the administrator can maintain an equal distribution of work across the hardware, preventing performance degradation on backend servers that host multiple application services.

The issue is caused by the Source Address restriction configured on the virtual server.

Source Filter: The configuration contains the line source 192.168.0.0/16. This acts as an implicit Access Control List (ACL). The virtual server will only accept and process TCP connections if the client ' s source IP address falls within the 192.168.x.x range.

Why Ping Works: ICMP (Ping) is handled by the Virtual Address object, not the Virtual Server object. Unless ICMP is specifically disabled on the Virtual Address, it will respond to pings from any subnet, even if the Virtual Server itself is restricted by a source filter or is even disabled.

Evaluation of Other Options:

Disabled (Option A): If the VS were disabled, the configuration would typically show disabled or state down, and the symptoms would be similar, but the source filter is a more specific " misconfiguration " in this context.

Port 80 (Option C): The configuration destination 10.99.20.50:http explicitly confirms it is listening on port 80.

Unallowed Subnet: If a client from a different network (e.g., 10.10.1.5) tries to connect, the BIG-IP will silently drop the connection or send a reset because it does not match the defined source criteria.

In BIG-IP LTM, health monitors are used to determine if a pool member or node is " Up " and capable of processing traffic. Based on the provided exhibit, the specific configuration setting causing this behavior is Manual Resume .

Manual Resume (Enabled/Yes): When the Manual Resume setting is set to Yes , it changes the default behavior of how a pool member returns to service. Under normal circumstances (Manual Resume set to No), once a pool member starts passing its health check again, the BIG-IP system automatically marks it as " Up " and resumes sending traffic to it. However, with Manual Resume enabled, the system will continue to mark the pool member as " Down " (or " Unavailable " ) even after it passes the health check. It requires a manual intervention by an administrator to reset the status and allow traffic to flow again.

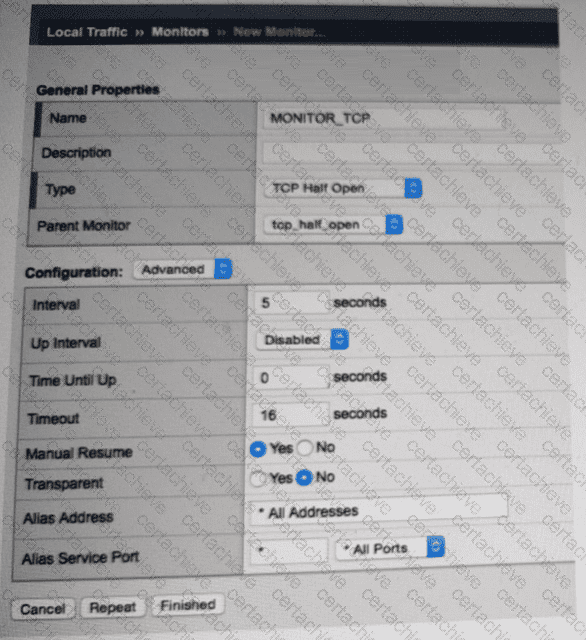

Exhibit Analysis: The screenshot clearly shows the Manual Resume radio button is selected as Yes . This explains why, even after the pool member " starts passing the monitor checks, " it does not receive new traffic.

Incorrect Options Analysis:

Time Until Up (0 seconds): This setting defines how long a member must consistently pass health checks before being marked " Up. " If it is set to 0, it should actually return to service immediately upon the first successful check.

The pool member is disabled: While a disabled member won ' t receive traffic, the question focuses on why passing a monitor check didn ' t restore service, which points specifically to the monitor configuration shown.

Monitor Type is TCP Half Open: This is simply the method used to check the service (sending a SYN and expecting a SYN-ACK, then sending a RST). It determines how the check is performed, not what happens after the check succeeds.

https://my.f5.com/manage/s/article/K83316932

F5 BIG-IP provides two distinct ways to throttle traffic on a Virtual Server: total capacity and velocity.

Connection Rate Limit: This setting specifically controls the number of new connection attempts per second . It is the correct tool for managing traffic spikes and protecting backend resources from being overwhelmed by a high frequency of new requests.

Comparison (Connection Limit): A standard Connection Limit (Option C) restricts the total concurrent connections allowed at any one time, regardless of how fast they arrive.

Other Profiles: OneConnect (Option A) is used for connection pooling and reuse to reduce server-side load, and HTTP Compression (Option B) reduces bandwidth usage but does not limit connection counts or rates.

When a virtual server is not working as expected despite the pool members being marked " UP " (Green), the issue is frequently a return-path routing failure. If the BIG-IP forwards a request with the original client ' s source IP address, the backend server will try to respond directly to that client. If the server does not have its default gateway pointed back to the BIG-IP, the response packet will be routed elsewhere (or dropped), resulting in a connection timeout for the user. To resolve this, the administrator must configure " Source Address Translation " (SNAT). By setting SNAT to " Automap " or a specific SNAT address, the BIG-IP replaces the client ' s IP with its own internal self-IP. The backend server then sees the BIG-IP as the source and sends the response back to it locally. This troubleshooting step ensures a functional, symmetric tr18affic flow. Identifying the need for SNAT is one of the most common troubleshooting tasks for new virtual server deployments where the BIG-IP is not the default gateway for the backend servers.
