The ISTQB Certified Tester Advanced Level - Technical Test Analyst (V4.0) (CTAL-TTA_Syll19_4.0)

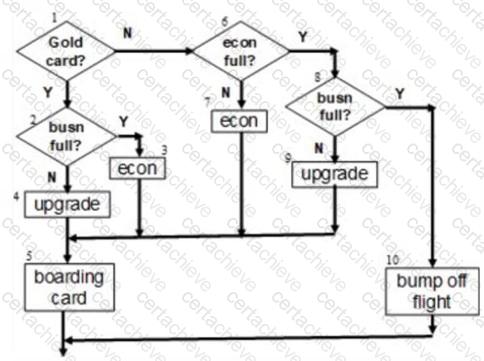

The control flow graph provided illustrates the decision points for an airline ' s upgrade and boarding process. Decision coverage is a measure of the percentage of decision points executed during testing:

Test 1 covers the decision points: Gold card? (Yes) and Business full? (No).

Test 2 covers: Gold card? (No) and Economy full? (No).

Test 3 covers the decision that leads to being bumped from the flight, which is Economy full? (Yes) and Business full? (Yes).

From the given tests, the decision points for Gold card? (No) and Business full? (No) are not tested, leaving us with 4 out of 6 decision points covered, which is approximately 67% decision coverage.

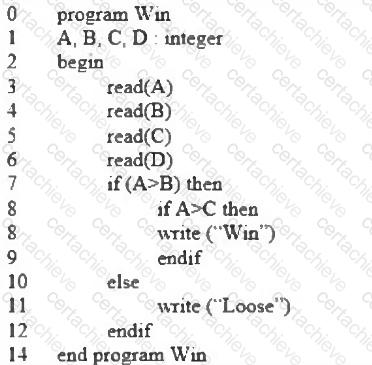

The pseudo-code provided for the " Win " program reads in variables A, B, C, and D. However, only variables A, B, and C are used in the conditional statements to determine if the output will be " Win " or " Loose " . Variable ' D ' is never used after it is read, which is a classic example of a ' defined but not used ' data flow anomaly. This means that while there is an instruction to read a value into variable ' D ' , there is no subsequent use of this variable in the program ' s logic or output.

A Technical Test Analyst is primarily involved in the technical aspects of test preparation and execution. One of their typical activities includes the execution of test cases, particularly those that are automated, and the subsequent analysis of any test failures to identify defects and issues. This activity is more technical than defining business processes or training other analysts, and while making decisions based on a business case may be part of their role, it is not an activity directly related to test automation.

An effective review preparation by a Technical Test Analyst includes ensuring that participants are well-prepared and that they spend enough time on preparation, which can be managed by checking the rate (option A). The use of review checklists (option C) and providing review training (option D) are also methods that contribute to more effective review preparation. However, managing the logging rate (option B), or the number of defects logged per minute during the meeting, is not related to the preparation phase but rather to the defect detection and logging phase during the actual review meeting. It is not a preparation activity but a review execution activity.

Multiple condition testing requires each possible combination of conditions to be tested, whereas modified condition/decision testing (MC/DC) requires each condition to be shown to independently affect the outcome. In the case of the ATM withdrawal, TC 3 (Customer does not have sufficient funds and credit has not been granted) would not result in the machine paying out, which is a result of applying multiple condition testing. However, for MC/DC, this test case would not be included because it doesn ' t provide an independent assessment of either condition ' s effect on the decision since both conditions are negative and the outcome is as expected (no payout).

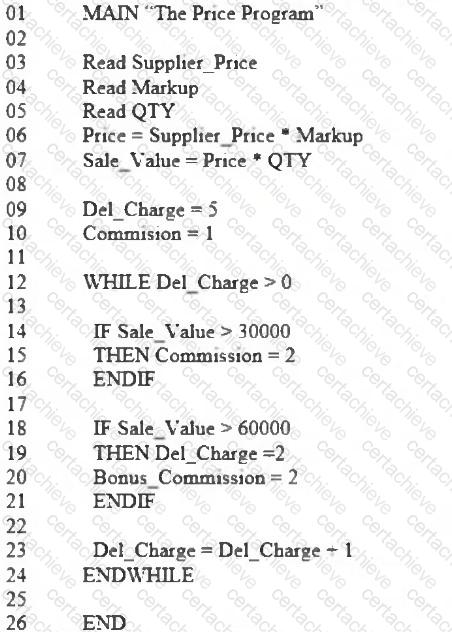

The pseudo code provided for the Price program shows a potential for an infinite loop due to the way the ' Del_Charge ' variable is being manipulated. The loop is set to continue ' WHILE Del_Charge > 0 ' , and within the loop, ' Del_Charge ' is initially set to 5 and then potentially decreased by 2 if ' Sale_Value > 60000 ' . However, at the end of each loop iteration, ' Del_Charge ' is increased by 1. This means that if ' Sale_Value ' is not greater than 60000, ' Del_Charge ' will not decrease and will instead increment indefinitely, causing an infinite loop. Even if ' Sale_Value ' is greater than 60000, the decrement by 2 could be negated by the subsequent increments if the loop runs enough times, potentially leading to an infinite loop situation. There is no guaranteed exit condition once the loop is entered, which is a control flow anomaly.

Including security testing in a test approach is valid when there are concerns about unauthorized access or activities, such as the threat of unauthorized copying of applications or data (option A). This type of testing aims to uncover vulnerabilities that could be exploited to compromise the confidentiality, integrity, or availability of the system. The other options listed—availability measurements (option B), system ' s peak load handling (option C), and frequent software changes (option D)—relate to different aspects of testing, such as reliability, performance, and maintainability, which are not directly associated with security testing.

In the context of consumer electronics, where there is rapid growth in embedded software and pressure to minimize code size due to cost constraints, dynamic analysis can be particularly useful for improving system performance. Dynamic analysis involves examining the system ' s behavior during execution, which can provide insights into the efficiency of the code at runtime, memory utilization, and processing speed. In a high-end TV project where the use of ROM and RAM is under severe restrictions, dynamic analysis would be most appropriately applied to improve system performance, ensuring that the software runs efficiently within the available hardware resources. This supports the project context by contributing to the optimization of the software to run within the constraints of the microcontroller used, thereby potentially reducing costs.

Reliability testing is aimed at verifying the software ' s ability to function under expected conditions for a specified period of time. It is typically conducted during system testing, where the software is tested in its entirety to ensure that all components work together as expected in an environment that closely simulates the production environment. Reliability testing is not typically associated with static testing, component testing, or functional acceptance testing, as these levels of testing do not address the overall behavior of the system over time.
