The Service Provider Routing and Switching - Specialist (JNCIS-SP) (JN0-364)

In a Juniper Networks environment, deploying RSVP-signaled LSPs requires a functional Traffic Engineering Database (TED) . This database is populated by the Interior Gateway Protocol (IGP) using specific extensions that carry link-state information beyond simple reachability, such as available bandwidth, administrative groups (link coloring), and Maximum Reservable Bandwidth.

The behavior of these extensions differs between OSPF and IS-IS in Junos OS:

OSPF (Option C): By default, OSPF is a "pure" routing protocol. To support RSVP-TE, it must carry Opaque LSAs (Type 10). According to Juniper documentation, you must explicitly configure traffic engineering within the OSPF protocol hierarchy using the set protocols ospf traffic-engineering command. Without this command, OSPF will not flood the TE information required by the Constrained Shortest Path First (CSPF) algorithm, and LSPs will fail to establish.

IS-IS (Option D): IS-IS was designed to be extensible through the use of TLVs (Type, Length, Value). In Junos OS, IS-IS traffic engineering extensions are enabled by default once the protocol is active. As soon as you enable IS-IS on an interface, it begins to advertise the wide metrics and TE TLVs (like TLV 22 and 135) necessary for building the TED.

This distinction is a common design consideration for network architects. While IS-IS simplifies the rollout of MPLS by having TE enabled "out of the box," OSPF requires that extra configuration step to transition from a standard IGP to a TE-aware protocol.

In the Border Gateway Protocol (BGP) , the Split Horizon rule is a fundamental loop-prevention mechanism for internal sessions. This rule dictates that a BGP speaker must not advertise a route learned from an Internal BGP (IBGP) peer to any other IBGP peer within the same Autonomous System (AS). This ensures that routes do not circulate infinitely inside a network, as IBGP does not modify the AS_PATH attribute. Consequently, to maintain full reachability, a network normally requires a "full mesh" of IBGP sessions, where every BGP-speaking router is directly peered with every other router.

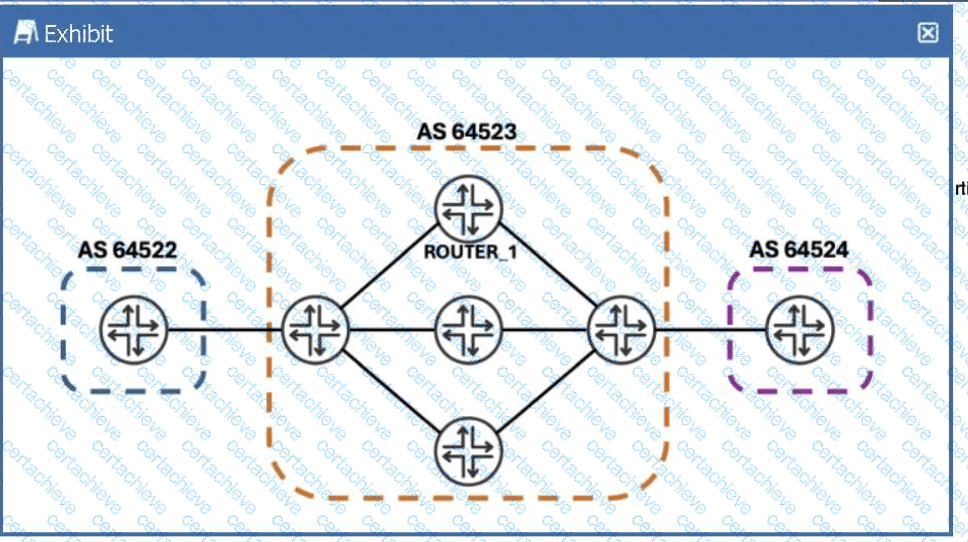

In the provided exhibit, ROUTER_1 is part of AS 64523. The requirement is for ROUTER_1 to take prefixes learned from its internal peers and re-advertise them to other internal peers in the same AS. This behavior is a direct violation of the standard Split Horizon rule. According to Juniper Networks technical documentation, the standard solution to scale IBGP without a full mesh is to configure Route Reflection .

When a router is configured as a Route Reflector (RR) , it is permitted to "reflect" (re-advertise) routes learned from one IBGP peer to another. In Junos OS, the mechanism to enable Route Reflection is to configure a cluster ID within the BGP group. By adding the cluster keyword followed by a unique 32-bit identifier (usually the router's loopback address) to the internal BGP group configuration, the router assumes the role of an RR. It then follows specific reflection rules:

Routes learned from an EBGP peer are reflected to all IBGP peers.

Routes learned from a Route Reflector Client are reflected to all other clients and non-clients.

Routes learned from a non-client are reflected to all clients.

Option A is incorrect because BGP advertisement rules are hard-coded; a standard export policy cannot override the Split Horizon rule. Option C handles traffic engineering tags but does not enable route reflection. Option D would change the session to EBGP, which does not address the internal reachability requirement within AS 64523. Therefore, configuring the cluster ID is the only valid way to achieve the desired re-advertisement behavior.

In Virtual Router Redundancy Protocol (VRRP) , the primary goal is to provide a highly available default gateway for end hosts. However, there is a specific operational behavior in the VRRP standard (RFC 3768/RFC 5798) regarding how the "Virtual Router" responds to traffic destined for its own Virtual IP (VIP).

According to Juniper Networks documentation, by default, a VRRP router that is in the Master state will only respond to packets destined for the VIP if that router is the IP Address Owner (meaning its physical interface IP matches the VIP). If the router is a "non-owner" (a common configuration in many networks), it will forward traffic on behalf of the VIP but will not respond to management traffic, such as ICMP Echo Requests (Pings) , directed at the VIP itself.

To satisfy the requirement that "servers connected to the network must be able to ping their gateway," the accept-data (Option D) parameter must be configured. In Junos OS, the accept-data statement allows the VRRP Master to respond to traffic destined for the virtual IP address even if it is not the address owner. This includes responding to Pings and allowing other management connections like SSH or Telnet to the VIP.

Regarding the other options:

Preempt (Option B): While preempt is often used to ensure the primary router regains control, in Junos, a router with the highest priority (255) defaults to preemptive behavior, and accept-data is specifically what solves the "pinging the gateway" requirement.

Track (Option A): Tracking is used for failover logic but doesn't affect the ability to ping the VIP.

Static ARP (Option C): This is unnecessary as VRRP uses a virtual MAC address to ensure hosts can resolve the VIP via standard NDP (for IPv6) or ARP (for IPv4).

In a Juniper Networks MPLS environment, the selection of a signaling protocol depends heavily on the requirement for traffic engineering and path control. To satisfy the requirement for an explicit path —where the network architect defines specific hop-by-hop routers that the traffic must traverse—the Resource Reservation Protocol (RSVP) is the necessary choice.

According to Juniper documentation, RSVP (specifically RSVP-TE) supports the use of Explicit Route Objects (EROs) . When you configure an LSP in Junos OS, you can define a path consisting of a series of IP addresses (strict or loose hops). RSVP then signals the LSP along that exact sequence of routers, reserving resources and establishing labels as it goes. This allows for precise control over the network's traffic patterns, enabling administrators to steer traffic away from congested links or toward specific high-bandwidth paths.

In contrast, LDP (Label Distribution Protocol) (Option D) is a "best-effort" signaling protocol. LDP strictly follows the Interior Gateway Protocol (IGP) shortest path. It does not support explicit paths or traffic engineering constraints; it simply builds a "mesh" of labels based on the existing routing table. IS-IS (Option C) is an IGP used to populate the routing table and TED but does not signal labels. BGP (Option A) is used for service delivery (like L3VPNs) but relies on an underlying transport LSP (built by RSVP or LDP) to reach its next hop. Therefore, only RSVP provides the mechanism for explicit path manipulation.

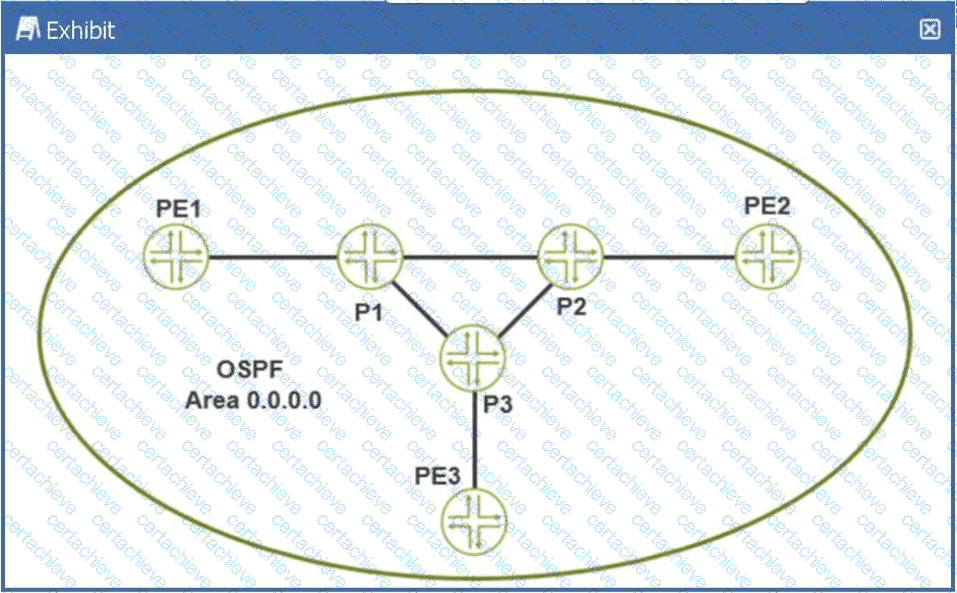

In Juniper Networks Junos OS, the Label Distribution Protocol (LDP) is specifically designed to automate the creation of Label Switched Paths (LSPs) based on the information provided by the underlying Interior Gateway Protocol (IGP), such as OSPF or IS-IS. When LDP is enabled on a set of interfaces within an OSPF area (as shown in the exhibit with Area 0.0.0.0), it automatically discovers neighbors and exchanges label mappings for all known unicast routes in the routing table.

The defining characteristic of LDP in this context is its "topology-driven" nature. Unlike RSVP (Resource Reservation Protocol), which typically requires the manual configuration of each LSP ingress point and destination, LDP follows the IGP's shortest path tree to automatically build a full mesh of LSPs between all participating routers. This means that every Provider Edge (PE) and Provider (P) router in the exhibit—PE1, PE2, PE3, P1, P2, and P3—will establish label-switched connectivity to every other router without the administrator having to define individual tunnels.

LDP accomplishes this through a downstream-unsolicited label distribution mode by default in Junos. Each router assigns a local label for its loopback address and other prefixes and advertises these to its neighbors. Because every router is performing this action for every reachable prefix in the OSPF domain, a complete fabric of label-switched paths is formed. While RSVP is more robust for traffic engineering and bandwidth reservation, LDP is the preferred protocol for creating a simple, scalable full mesh of LSPs for applications like Layer 3 VPNs or internal BGP tunneling where complex path manipulation is not required. BFD is a failure detection protocol, and BGP is used for service signaling, making LDP the only correct choice for automatic mesh creation.

In the world of BGP, controlling inbound traffic (traffic entering your network) is significantly more challenging than controlling outbound traffic because it requires influencing a decision made by an external Autonomous System (AS). According to Juniper Networks documentation, when you have multiple links to the same AS or even different ASes, the BGP path selection process is used by the upstream neighbor to decide which path to take to reach your prefixes.

AS-Path Prepending is the standard technique used to make a path appear less attractive to external peers. By artificially lengthening the AS_PATH attribute on the BGP advertisements sent over a specific link, you exploit the BGP best-path algorithm rule that prefers a shorter AS path. When you prepend your own AS number multiple times to the update sent to the "less preferred" peer, that peer’s BGP routers will see a longer path compared to the alternative link and will naturally prefer the shorter, unprepended route.

It is important to distinguish why other options are incorrect for this specific goal:

Local Preference (Option D): This is a well-known discretionary attribute used to influence outbound traffic. It is not advertised to EBGP peers; therefore, your upstream neighbor cannot see your local preference settings.

Origin Code (Option B): While the origin code (IGP, EGP, or Incomplete) is a tie-breaker in the selection process, it is rarely used for traffic engineering and lacks the granular control provided by prepending.

Route Reflector (Option A): This is an Internal BGP (IBGP) scaling mechanism used to reduce the need for a full mesh of peers within an AS; it does not directly influence external path selection by an upstream provider.

Junos OS allows you to easily implement prepending via routing policies applied as an "export" policy to the EBGP neighbor. By using the as-path-prepend action within a policy term, you can selectively degrade a path's attractiveness to manage your inbound bandwidth.

When troubleshooting OSPF in a service provider environment, distinguishing between "stuck" adjacencies and "flapping" adjacencies is the first step. A session that transitions frequently between Full and Down indicates that the relationship can be established successfully (meaning parameters match), but it cannot be maintained.

According to Juniper Networks documentation, the most common cause for a session to drop from Full to Down is the expiration of the Dead Interval . If a router does not receive a Hello packet within the Dead Interval (usually 40 seconds), it tears down the adjacency. A physical interface flapping (Option A) is the primary trigger for this. If the physical link or the underlying transport (like a leased line or a microwave link) goes down even momentarily, the OSPF process immediately detects the interface failure, flushes the neighbors, and moves the state to Down. As soon as the interface comes back up, the routers perform the Hello exchange and reach the Full state again, creating the flapping cycle.

Analysis of other options:

MTU Mismatch (Option D): This typically causes the adjacency to get "stuck" in the Exchange or ExStart state. The routers can exchange small Hello packets, but when they try to send larger Database Description (DBD) packets that exceed the MTU, the packets are dropped, preventing the session from ever reaching "Full."

Area ID Mismatch (Option C): This prevents the adjacency from even reaching the Init state; the routers will never form a neighbor relationship.

Route Preference (Option B): This affects which route is chosen for the forwarding table but has no impact on the OSPF neighbor state machine itself.

In the context of the Label Distribution Protocol (LDP) , the method by which a router advertises labels to its neighbors is defined by its Label Advertisement Mode . According to Juniper Networks documentation and industry standards (RFC 5036), there are two primary modes: Downstream Unsolicited (DU) and Downstream on Demand (DoD) .

In Downstream Unsolicited (DU) mode, which is the default behavior for Junos OS and most service provider implementations, an LSR (Label Switching Router) does not wait for a specific request from its neighbors. Instead, as soon as the LSR learns a prefix through its Interior Gateway Protocol (IGP) and establishes an LDP session, it automatically generates a label for that prefix and advertises it to all of its LDP peers. This explains the scenario where labels appear for every loopback address in the IGP as soon as LDP is enabled. DU mode is highly efficient for fast convergence because the labels are alread y present in the neighbors' databases before they are even needed for traffic forwarding.

By contrast, Downstream on Demand (DoD) requires a router to explicitly request a label for a specific prefix from its next-hop neighbor. Ordered Control (Option B) and Independent Control refer to the timing of label creation (whether a router waits for the next-hop to provide a label before creating its own), while Conservative Retention (Option A) refers to how a router stores labels it receives but doesn't currently use for forwarding. In the Junos default environment, LDP utilizes Downstream Unsolicited advertisement combined with Ordered Control and Liberal Retention to ensure a robust and rapidly converging MPLS control plane.

When implementing Multiprotocol BGP (MP-BGP) for IPv6, several architectural constants remain consistent with the original BGP design, while others have evolved to accommodate larger network scales.

Router ID (Option C):

A critical point in Juniper's Service Provider documentation is that the BGP Router ID remains a 32-bit value , even when the protocol is carrying 128-bit IPv6 prefixes. The Router ID is typically represented in dotted-quad notation (e.g., 192.168.1.1). In an IPv6-only environment, a Juniper router cannot automatically derive this ID from an interface address, so it must be manually defined under [edit routing-options]. This 32-bit ID is essential for BGP tie-breaking and loop prevention within the AS.

Autonomous System Number (Option D):

The Autonomous System Number (ASN) was originally a 16-bit value (0 to 65535). However, to address the exhaustion of available ASNs, the standard was extended to 32-bit ASNs (documented in RFC 6793). In Junos OS, you can configure BGP using either the older 16-bit format or the newer 32-bit format (often represented in "asplain" or "asdot" notation). While the question mentions a 64-bit value, there is currently no standard for a 64-bit ASN in BGP; the transition from 16-bit to 32-bit satisfies current global scalability needs. Therefore, Option D is the most accurate within the context of current networking standards, as it acknowledges the coexistence of different ASN lengths.
