The Enterprise Routing and Switching Professional (JNCIP-ENT) (JN0-649)

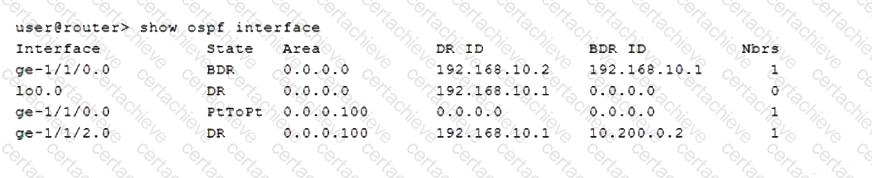

" Secondary interfaces are supported for LAN interfaces (the primary interface can be a LAN interface, but any secondary interfaces are treated as point-to-point unnumbered links over the LAN). In this scenario, you must ensure that there are only two routing devices on the LAN or that there are only two routing devices on the LAN that have secondary interfaces configured for a specific OSPF area. " [https://www.juniper.net/documentation/us/en/software/junos/ospf/topics/topic-map/configuring-ospf-areas.html#id-example-configuring-multiarea-adjacency-for-ospf]

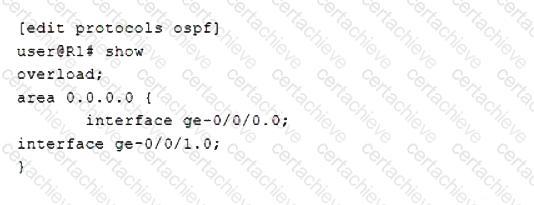

- Configure the local routing device so that it appears to be overloaded. You might do this when you want the routing device to participate in OSPF routing, but do not want it to be used for transit traffic. - Traffic destined to directly attached interfaces continues to reach the routing device. - When configured, the transit interface metrics are set to the maximum value of 65535. https://www.juniper.net/documentation/us/en/software/junos/ospf/topics/ref/statement/overload-edit-protocols-ospf.html

https://www.juniper.net/documentation/us/en/software/junos/ospf/topics/topic-map/configuring-ospf-route-control.html#id-understanding-ospf-overload-function

Junos OS supports both underlay and ingress replication for BUM (Broadcast, Unknown unicast, and Multicast) traffic forwarding in EVPN-VXLAN deployments. Ingress replication is used for efficient multicast traffic distribution in networks where underlay multicast is not available.

References:

EVPN-VXLAN Configuration Guide, Juniper Networks

Juniper Networks Documentation on EVPN-VXLAN

Understanding the Problem:

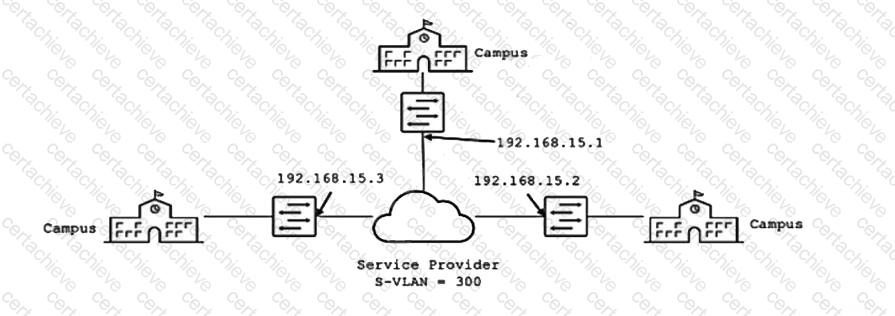

The requirement is to provide Layer 2 connectivity between campus sites using Ethernet switches through a metro Ethernet service provider who is using Q-in-Q tagging.

Design Considerations:

VXLAN Implementation:

VXLAN (Virtual Extensible LAN) can be used to extend Layer 2 networks over Layer 3 networks. It is often used to provide scalability and flexibility in modern data center networks. In this case, VXLAN could be used to encapsulate Layer 2 frames within UDP packets, allowing them to be transported over the service provider’s network.

S-Tag Configuration:

Q-in-Q tagging, also known as 802.1ad, involves an outer tag (S-Tag) and an inner tag (C-Tag). The service provider network uses the S-Tag to identify and segregate customer traffic. Therefore, each campus switch must have the correct S-Tag (300 in this case) configured to ensure the service provider can correctly handle and route the traffic.

References:

Juniper Networks: Understanding VXLAN

Configuring Q-in-Q Tagging

Multitenancy with Routing Instances:

In a multitenant network, different tenants are isolated using routing instances.

Each routing instance can have its own routing table and policies.

BGP and Load Balancing:

BGP (Border Gateway Protocol) is often used for interconnecting different autonomous systems or for internal routing.

Load balancing in BGP can be achieved using the multipath feature, which allows the installation of multiple paths to the same destination in the routing table.

Additionally, configuring per-packet load balancing ensures that traffic is distributed across multiple paths more granularly.

Configuring Multipath in BGP:

Hierarchy Considerations: The multipath option must be configured at appropriate hierarchies to ensure it applies to the correct scope (either globally or within a specific routing instance).

Detailed Configuration:

Statement C: Configure a load-balance per-packet policy and apply it at the [edit routing-options forwarding-table] hierarchy.

Correct : Configuring a load-balance per-packet policy ensures that packets are distributed evenly across multiple paths. This is crucial for achieving effective load balancing.

Configuration Example:

shell

Copy code

set routing-options forwarding-table export load-balance-per-packet

Policy Definition Example:

shell

Copy code

set policy-options policy-statement load-balance-per-packet term 1 then load-balance per-packet

Statement D: Configure the multipath option at the [edit routing-instances < instance-name > routing-options] hierarchy.

Correct : Configuring multipath within a routing instance ensures that the load balancing feature is applied specifically to that instance, which is crucial in a multitenant environment.

Configuration Example:

shell

Copy code

set routing-instances < instance-name > routing-options multipath

References:

Useful Juniper Commands

Juniper Routing Instances and Multipath Configuration

These configurations ensure that load balancing is achieved within each routing instance, leveraging both per-packet load balancing and the multipath feature in Junos OS for BGP. By configuring at the forwarding-table and routing-instance levels, you ensure the load balancing behavior is correctly applied to achieve the desired network performance and redundancy.

Analyzing BGP Route Information:

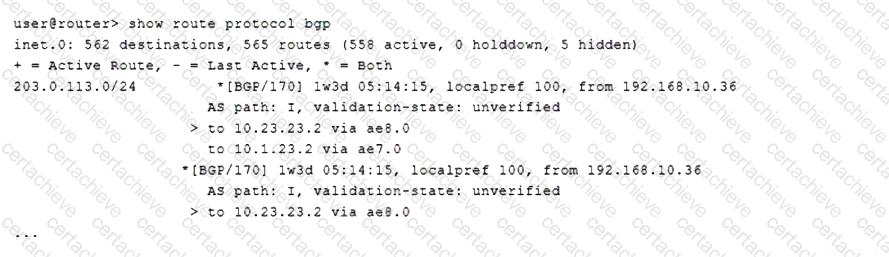

The exhibit shows BGP route information for the prefix 203.0.113.0/24.

Both paths to this prefix are learned from the same BGP peer with IP address 192.168.10.36.

Understanding BGP Neighbors:

The presence of multiple paths for the same prefix does not necessarily indicate multiple neighbors.

In this case, the routes to 203.0.113.0/24 are both learned from a single neighbor (192.168.10.36), but via different interfaces (ae8.0 and ae7.0).

Conclusion:

The BGP routes in the exhibit indicate that the prefix is learned from one neighbor but via different interfaces.

References:

BGP route analysis

Understanding BGP multi-path and neighbor relationships

To troubleshoot why ISP peers are not receiving any routes in a multihomed BGP setup, the following steps are essential:

Verify Active BGP Routes : Ensure that the BGP routes are active in the routing table. Only active routes can be advertised to BGP peers.

shell

Copy code

show route protocol bgp

Verify Export Policies : Check the export policies configured on your router. The export policies determine which routes are advertised to BGP peers. If these policies are incorrectly configured or missing, routes will not be advertised.

shell

Copy code

show configuration policy-options policy-statement < policy-name >

show configuration protocols bgp group < group-name > export

References:

Useful Juniper Commands.txt

Tech Ops Managed Router Juniper Install Guide

Single supplicant mode authenticates only the first end device that connects to an authenticator port. All other end devices connecting to the authenticator port after the first has connected successfully, whether they are 802.1X-enabled or not, are permitted access to the port without further authentication. If the first authenticated end device logs out, all other end devices are locked out until an end device authenticates. Single-secure supplicant mode authenticates only one end device to connect to an authenticator port. No other end device can connect to the authenticator port until the first logs out

A modified deficit round-robin (MDRR) scheduler is defined by the following three variables:

Priority (A):

Priority determines the importance of the queue, influencing the order in which packets are serviced. Higher priority queues are serviced before lower priority queues.

Transmit rate (C):

The transmit rate controls the amount of bandwidth allocated to each queue. It determines how quickly packets from a queue can be transmitted.

Buffer size (E):

Buffer size defines the amount of memory allocated to each queue for storing packets before they are transmitted. Larger buffer sizes can accommodate more packets but may introduce more latency.

References:

Detailed information on MDRR and its variables can be found in Juniper ' s QoS configuration guides and related networking documents​​​​.
