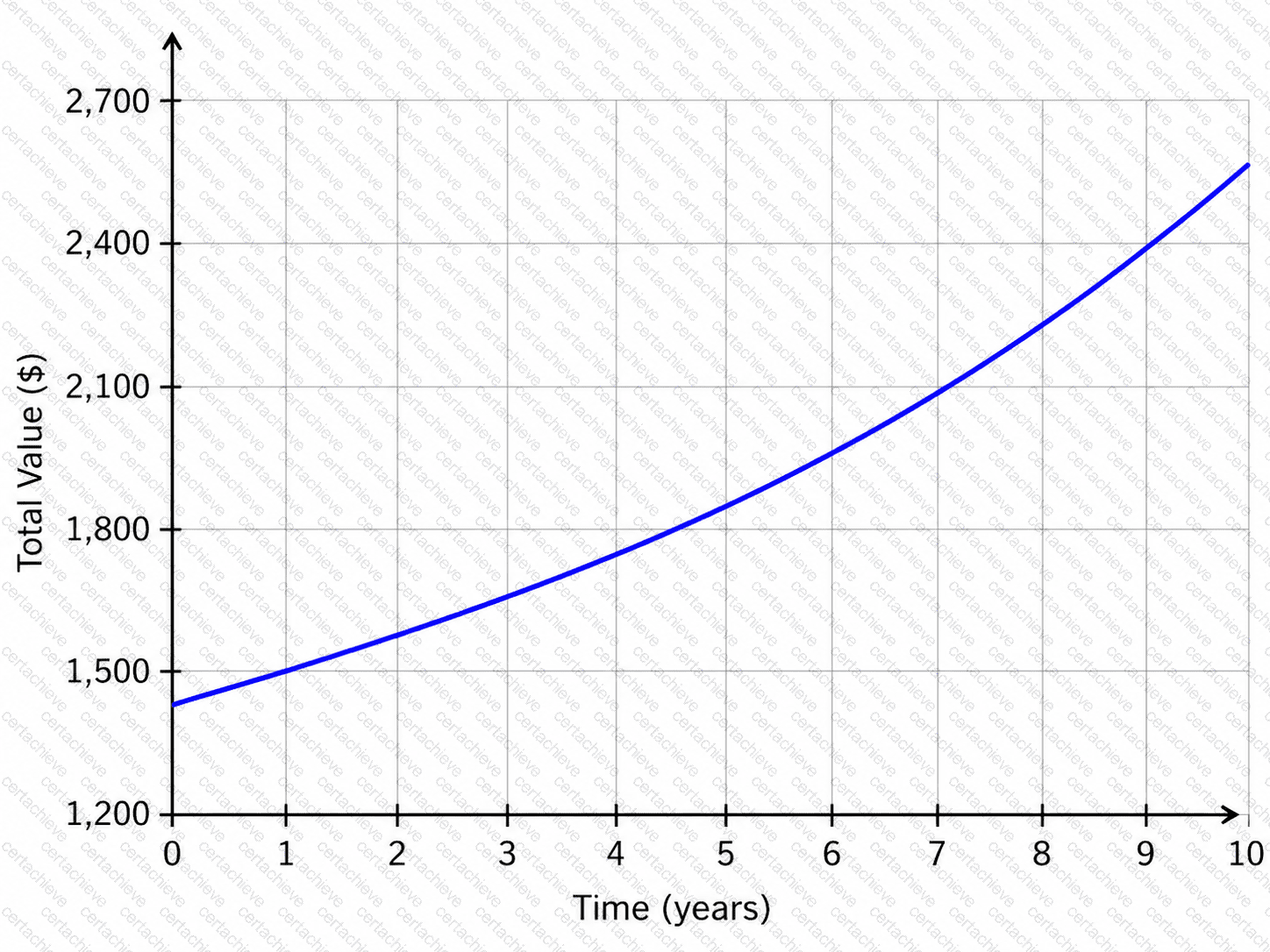

The function a(x)represents the total value of an investment account.

The horizontal axis represents:

x= " time in years "

The vertical axis represents:

a(x)= " total account value in dollars "

We are asked to find the total value when:

x=4

To answer this from the graph:

Locate x=4on the horizontal axis.

Move vertically upward until reaching the blue graph.

Read the corresponding value on the vertical axis.

From the graph, when x=4, the value is slightly above $1,800, approximately:

a(4)≈1,830.59

So the total value of the investment account after 4 years is approximately:

$1,830.59

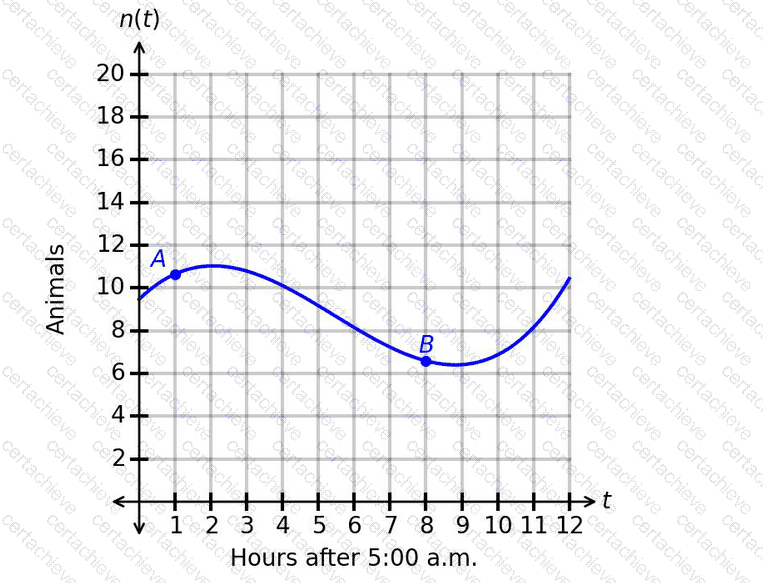

The average rate of change tells how much the output changes per one unit of input.

Here:

t= " hours after 5:00 a.m. "

and

n(t)= " number of animals "

The two given points are:

A=(1,10.6)

and

B=(8,6.59)

Use the average rate of change formula:

(y_2-y_1)/(x_2-x_1 )

Substitute the coordinates:

(6.59-10.6)/(8-1)

=(-4.01)/7

≈-0.573

The negative sign means the number of animals is decreasing.

So the correct interpretation is:

" The number of animals at the station decreases at an average rate of " 0.573 " animals per hour. "

Therefore, the correct answer is:

▭ ( " B " )

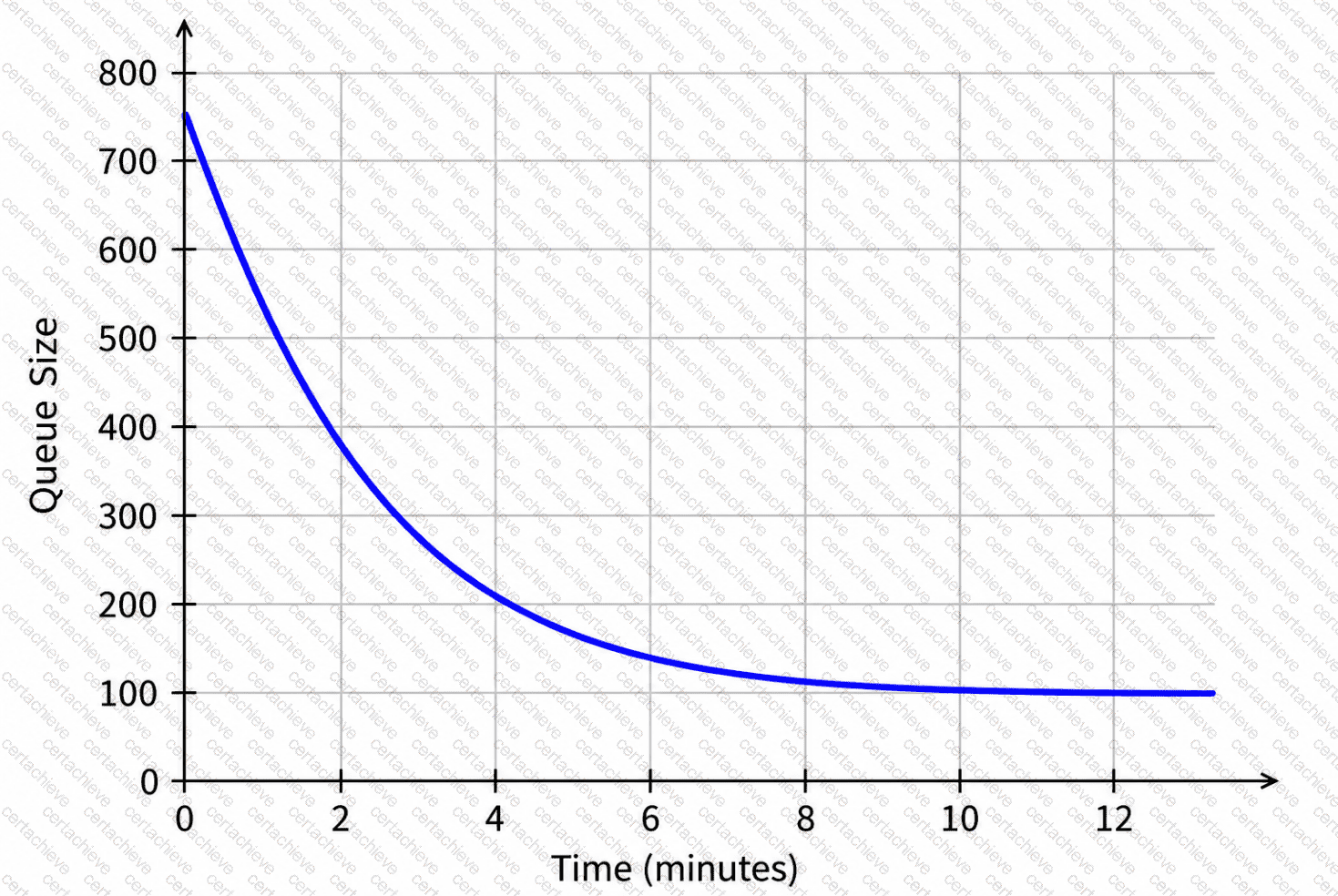

The graph shows the queue size changing over time.

The horizontal axis represents:

" Time in minutes "

The vertical axis represents:

" Queue size "

The graph is a decreasing exponential curve. It starts near 750people and decreases quickly at first. Then the curve begins to flatten near:

y=100

A horizontal asymptote is the horizontal line that the graph approaches as time continues.

Here, the graph approaches the horizontal line:

y=100

This means that as time passes, the number of people in the virtual queue gets closer and closer to 100.

It does not mean the queue decreases to 0, because the graph levels off near 100, not near 0.

Therefore, the correct interpretation is:

" As time passes, the number of people in the queue approaches 100. "

We are told that the number of people expected to audition this year is 4 times the number of people who auditioned last year.

Let:

t=number of people who auditioned last year

and

A(t)=number of people expected to audition this year

Since this year’s number is 4 times last year’s number, the function is:

A(t)=4t

The question says that 330 people auditioned last year, so:

t=330

Now substitute 330 into the function:

A(330)=4(330)

A(330)=1320

So, the correct function notation is:

A(330)=1,320

This means: when 330 people auditioned last year, 1,320 people are expected to audition this year.

Therefore, the correct answer is:

B

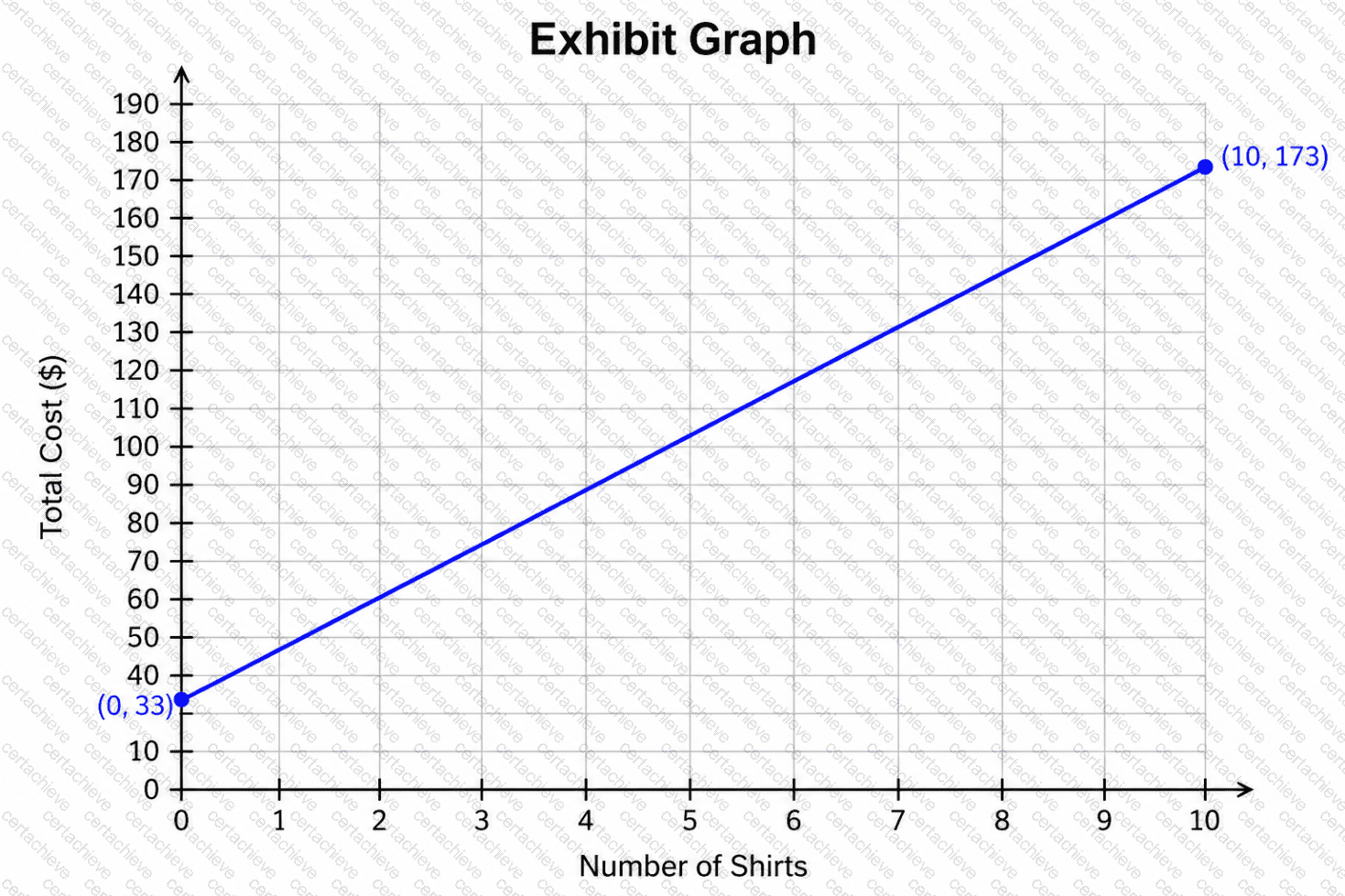

This question asks for the cost of each additional shirt, which means we need to find the rate of change of the linear function.

On a graph, the rate of change is the slope:

" slope " = " change in total cost " / " change in number of shirts "

From the graph, two labeled points are:

(0│33)

and

(10│173)

This means:

When 0shirts are ordered, the cost is $33.

When 10shirts are ordered, the cost is $173.

Now find the slope:

m=(173-33)/(10-0)

m=140/10

m=14

So the cost increases by:

$14

for each additional shirt.

The $33represents a fixed starting cost, not the cost per shirt.

The function is:

D(t)=48t+23

This is a linear function because it has the form:

D(t)=mt+b

where:

48

is the rate of change, and:

23

is the starting distance from the rest stop.

We need to find:

D(1.7)

That means substitute:

t=1.7

into the function.

D(1.7)=48(1.7)+23

First multiply:

48(1.7)=81.6

Now add 23:

D(1.7)=81.6+23

D(1.7)=104.6

So the vehicle is:

104.6 miles

from the rest stop after 1.7 hours.

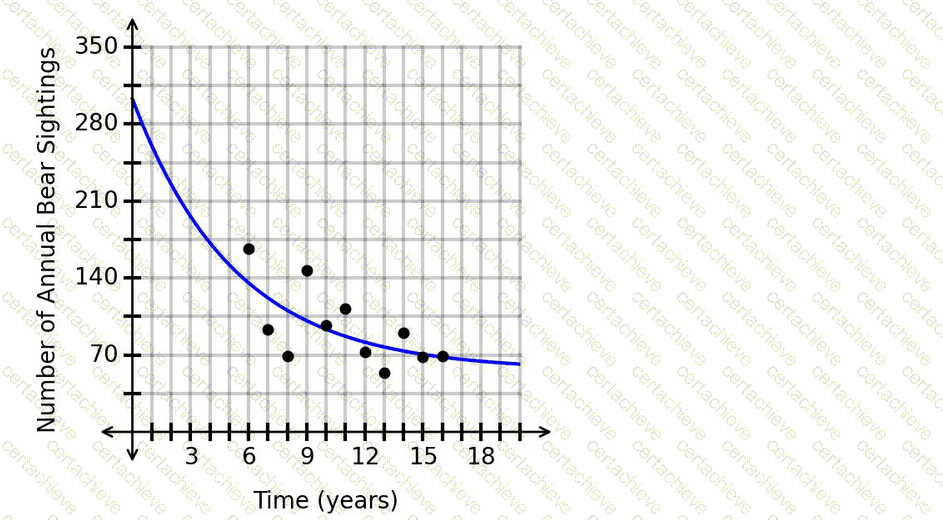

The model has:

r^2=0.42

This indicates a moderate fit, not a strong fit.

The prediction is being made at:

x=19.5

From the scatterplot, the observed data values appear to extend only to about:

x=16

So x=19.5is beyond the observed data range.

Because the model has only a moderate fit and the prediction is too far beyond the observed data, the prediction is not appropriate.

The correct interpretation is:

" No. The " r^2 " value indicates a moderate fit, but " x=19.5 " is more than " 25% " of the range beyond the maximum value. "

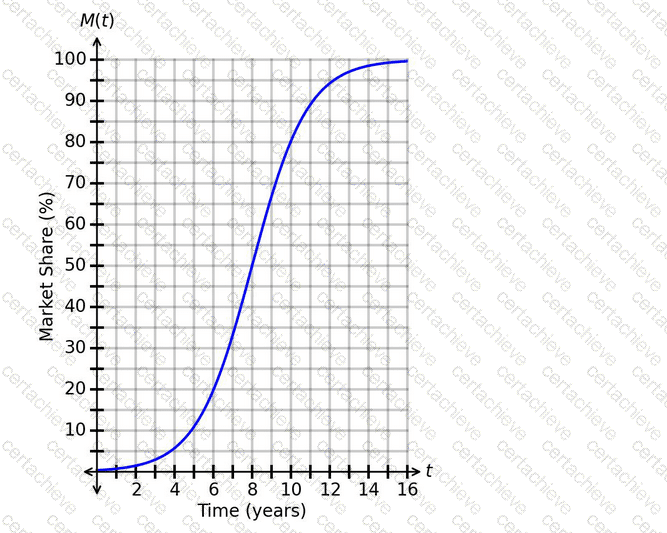

The function M(t)represents the company’s market share after tyears.

The horizontal axis represents:

t= " time in years "

The vertical axis represents:

M(t)= " market share percentage "

We need to find when the market share reaches:

40%

From the graph, locate 40on the vertical axis. Then move horizontally to the blue curve and read the corresponding value on the horizontal axis.

The curve reaches 40%at approximately:

t=7.4

So the company should expect to have a market share of 40%after about:

7.4 " years "

Therefore, the correct answer is:

▭ ( " C " )

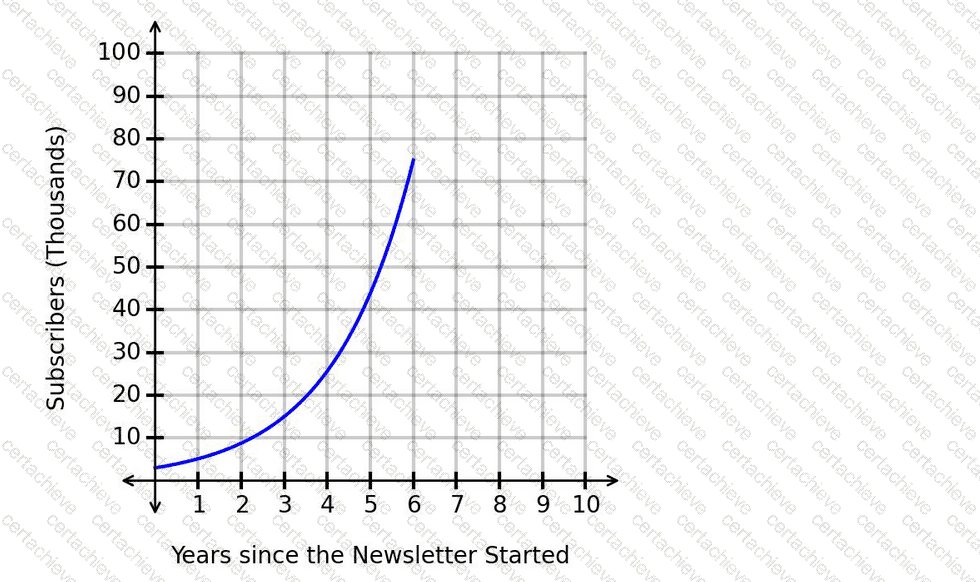

The graph shows an increasing exponential curve.

The number of subscribers is going up as time passes, so the function is increasing.

Also, the graph becomes steeper as time increases. This means the rate of increase is getting larger.

So the number of subscribers is:

" increasing faster and faster "

This is a key feature of exponential growth.
