The CompTIA A+ Core 1 Exam (2026) (220-1201)

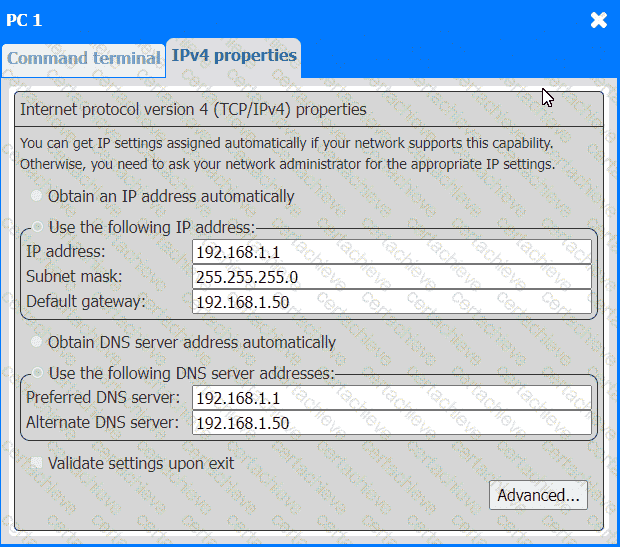

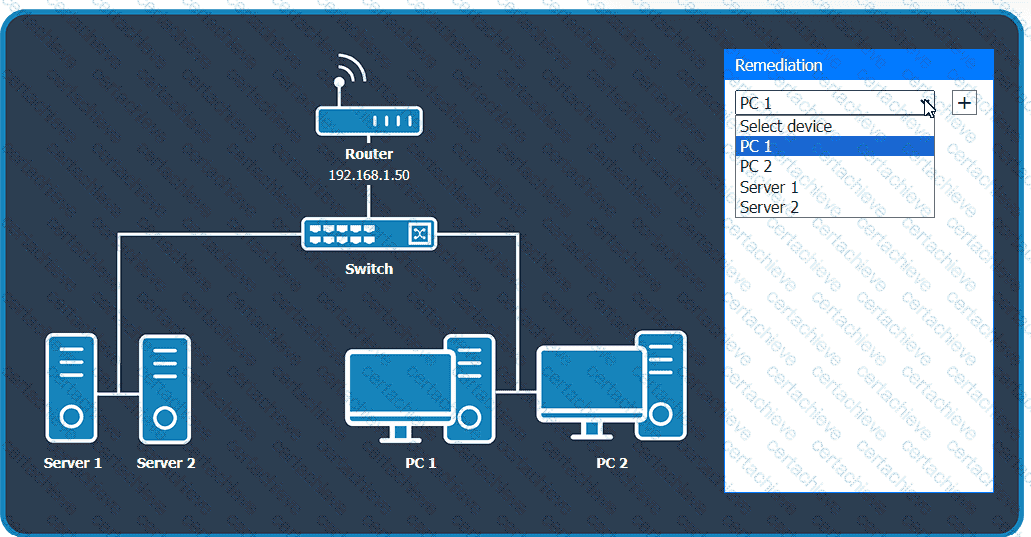

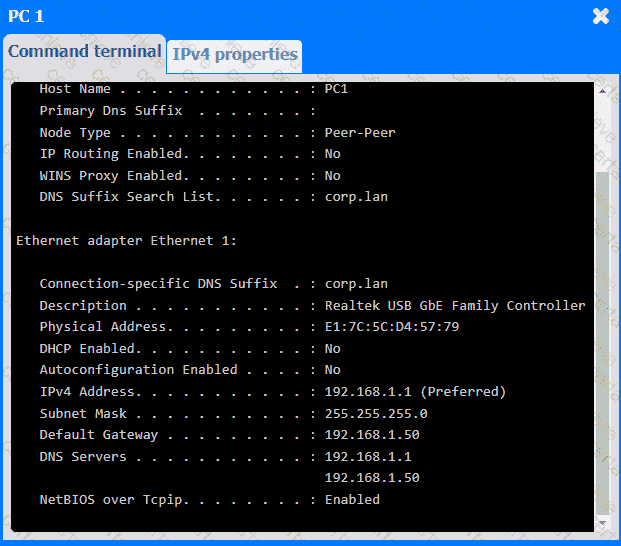

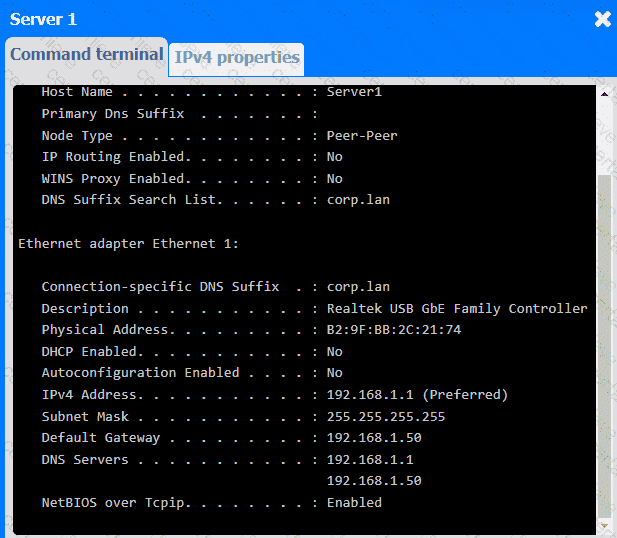

Looking at the network configurations and outputs from both PCs and servers, here are the possible issues and solutions:

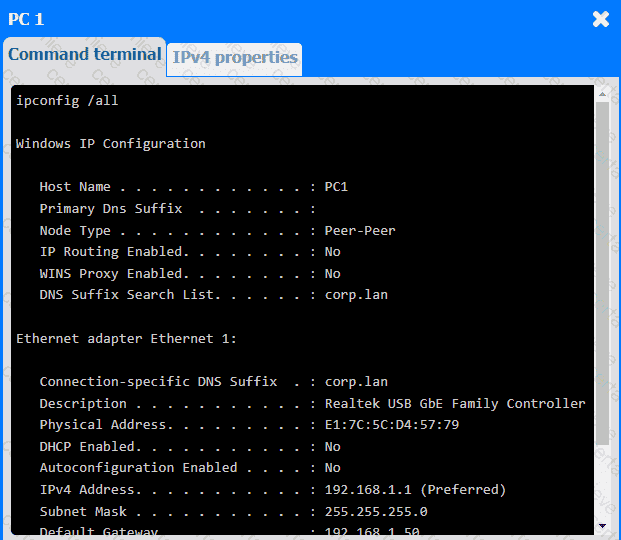

1. PC 1

Issue: The IP address for PC1 is 192.168.1.1, which conflicts with Server 1 (which also uses 192.168.1.1).

Solution: Change the IP address on PC1 to a unique one within the range, like 192.168.1.3.

2. PC 2

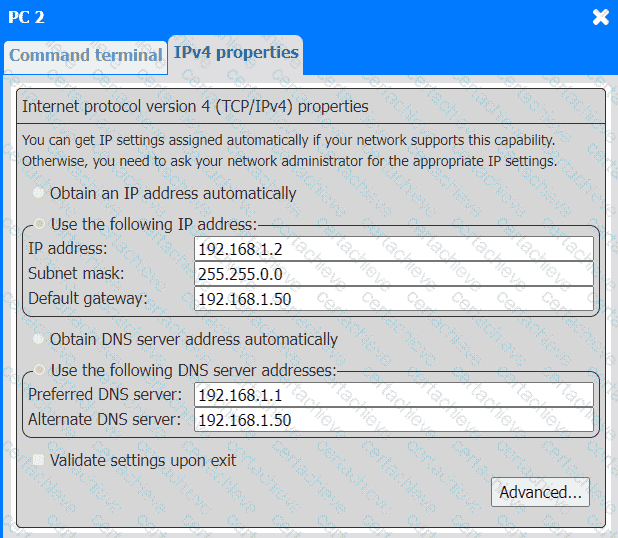

Issue: PC 2 is configured with 192.168.1.2, which conflicts with Server 2 that has the same IP address.

Solution: Update the IP address on PC 2 to something unique, like 192.168.1.4.

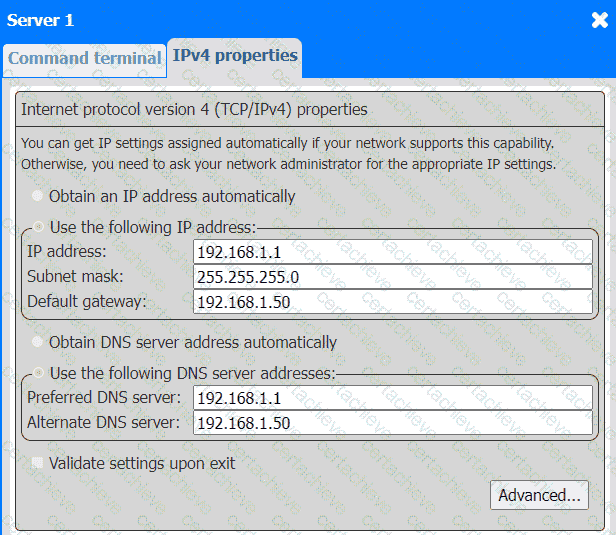

3. Server 1

Issue: The IP address for Server 1 is 192.168.1.1, which conflicts with PC1.

Solution: Since Server 1 and PC1 are using the same IP address, change one of them. For Server 1, you could change the IP address to 192.168.1.5.

4. Server 2

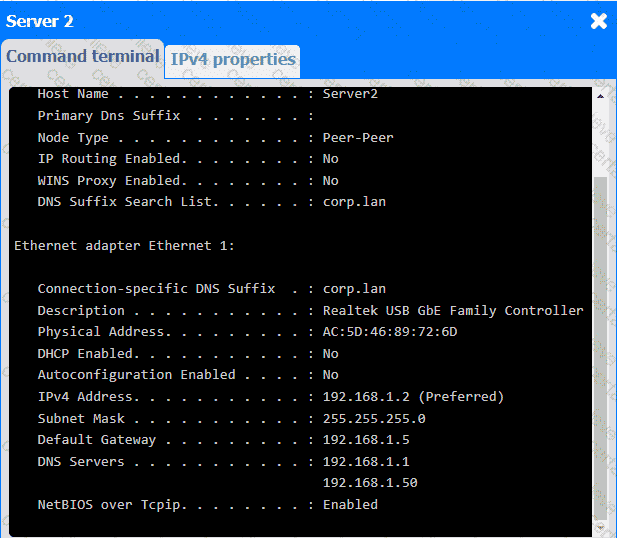

Issue: Server 2 is using the IP address 192.168.1.2, which conflicts with PC2.

Solution: Update Server 2 to use a different IP address, such as 192.168.1.6.

General Remediation:

The primary problem here is overlapping IP addresses, leading to connectivity issues. Each device on the network must have a unique IP address. After making these changes, ensure that all devices can communicate properly by testing the connection between devices and verifying they can access shared resources.

A printer with text boxes AI-generated content may be incorrect.

CompTIA A+ Core 1 (220-1201) display technology objectives emphasize that contrast ratio is strongly influenced by how well a screen can produce true black. OLED (Organic Light-Emitting Diode) panels are known for the highest contrast ratios because each pixel is self-emissive—meaning it generates its own light. When an image requires black, OLED can turn individual pixels completely off, producing near-perfect black levels and extremely high (often “infinite”) contrast in practical terms.

By comparison, LCD panels require a backlight, so black areas still allow some light leakage through the liquid crystal layer, reducing contrast. LED in this context is typically an LED-backlit LCD, not a fundamentally different pixel technology; it improves brightness and efficiency but still relies on backlighting, so contrast is limited by backlight bleed and panel design. QLED is also a type of LCD technology that uses a quantum dot layer to enhance color and brightness, but it still uses a backlight, so it cannot match OLED’s per-pixel shutoff for black levels. Therefore, OLED is the best choice for the highest contrast ratios.

A router is a network device that forwards data between different networks by examining packet headers, specifically the IP address information contained in Layer 3 (Network Layer) of the OSI model. According to the CompTIA A+ Core 1 (220-1201) networking objectives, routers use routing tables and packet header analysis to determine the best path for data to travel from a source network to a destination network. When a packet arrives at a router interface, the router reads the destination IP address in the packet header, compares it against its routing table, and then forwards the packet to the appropriate next hop or network interface. This function allows routers to connect multiple networks such as LANs, WANs, and the internet.

The other options do not perform this function. A hub operates at Layer 1 (Physical Layer) and simply broadcasts incoming signals to all connected ports without inspecting any packet information. A repeater also operates at the physical layer and is used only to regenerate or amplify signals to extend network distance. An unmanaged switch operates mainly at Layer 2 (Data Link Layer) and forwards frames based on MAC addresses, not IP packet headers. Because only routers analyze packet headers and forward traffic between different networks, Router is the correct answer.

In CompTIA A+ Core 1 (220-1201) cloud concepts, the key differentiator between cloud deployment models is where the service is hosted and who owns/uses the underlying infrastructure. If a company’s directory services server (for example, a domain controller providing authentication/authorization and centralized identity management) is located on premises, that points to infrastructure that is owned and operated by the organization for its own internal use. This aligns best with a private cloud model, which is defined as cloud resources dedicated to a single organization and can be implemented on-premises (internally hosted) or in a dedicated off-site environment.

It is not a public cloud because public cloud services are hosted by a third-party provider and shared across multiple customers. It is not hybrid cloud because hybrid requires a mix of on-prem resources and public cloud resources working together (the question only specifies on-prem). It is not community cloud because that involves shared infrastructure among multiple organizations with common needs.

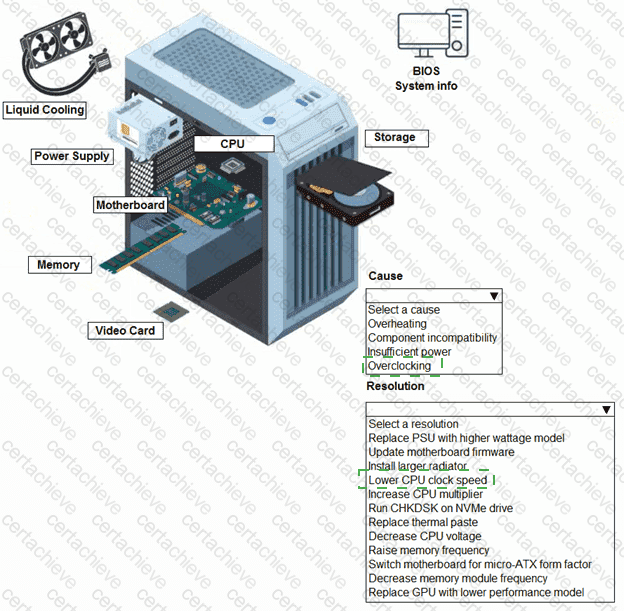

correct answer is " Overclocking " and " Reduce CPU Clock speed " CPU is at 4.5 Ghz when normal is 3.2 Ghz. Overclocking too much can cause freezes, and this is a gaming computer sothe user probably took it too far. http://blog.logicalincrements.com/2018/12/4-troubleshooting-tips-overclocking-pc/

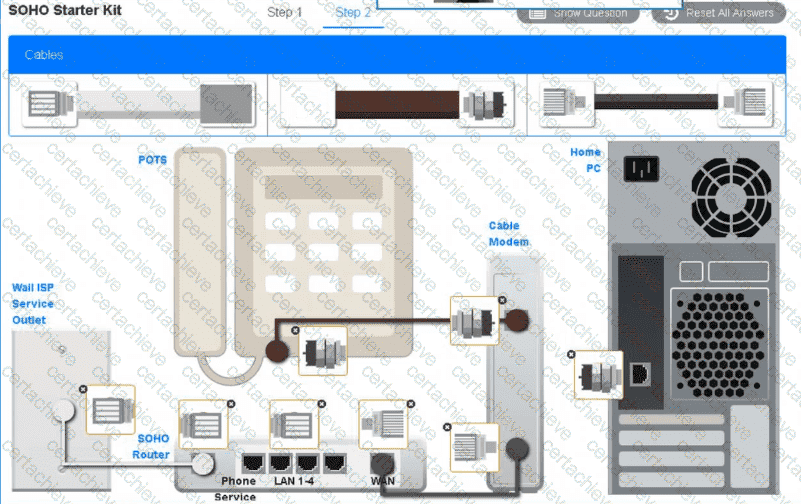

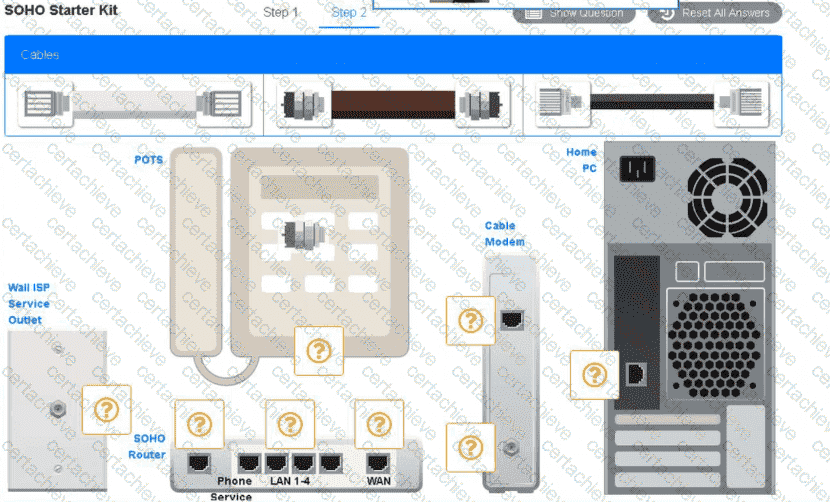

Answer of both steps below.

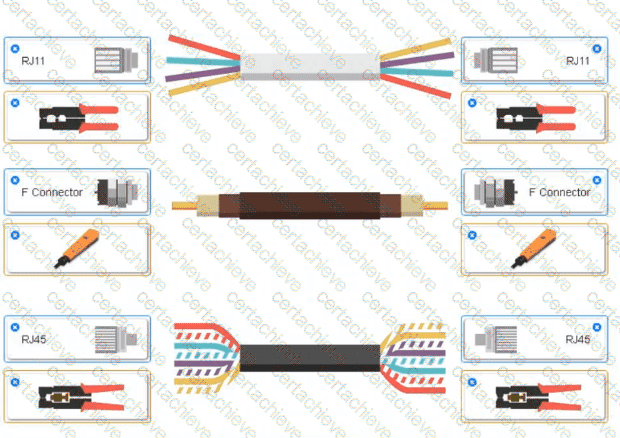

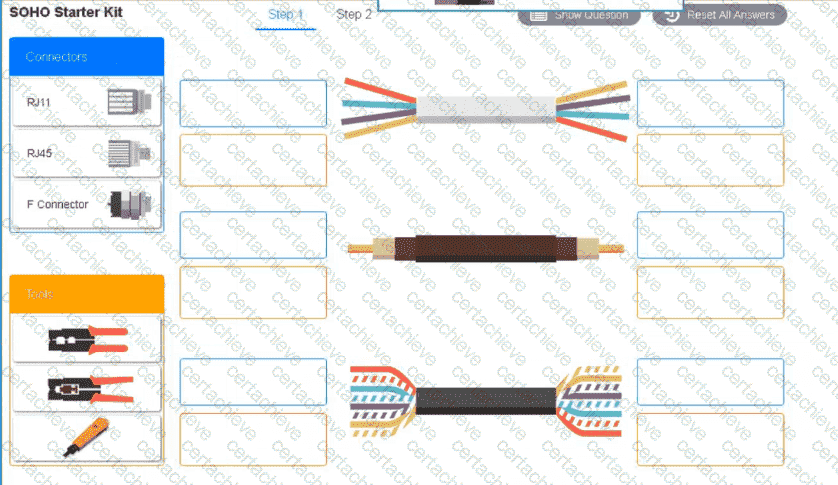

A group of wires with different colors AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

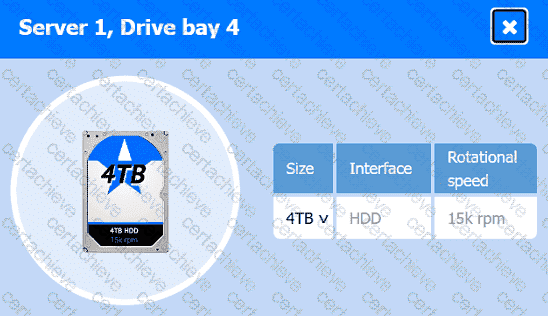

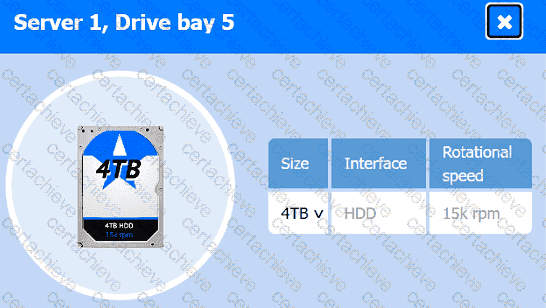

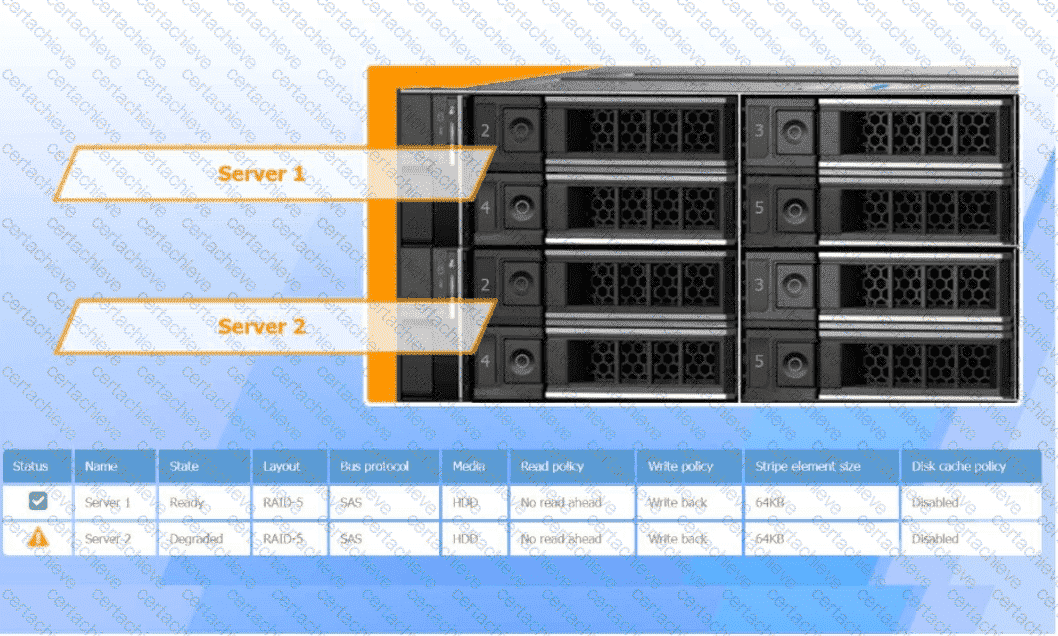

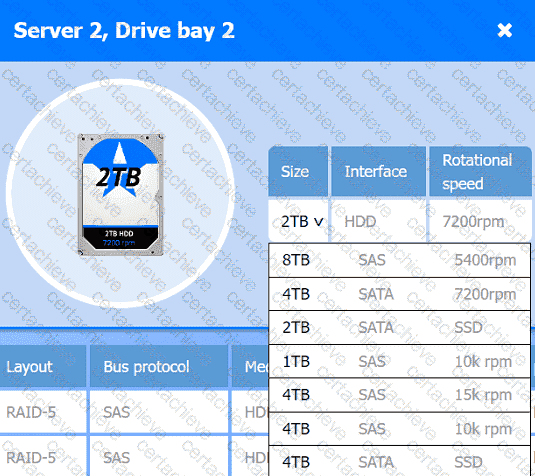

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.

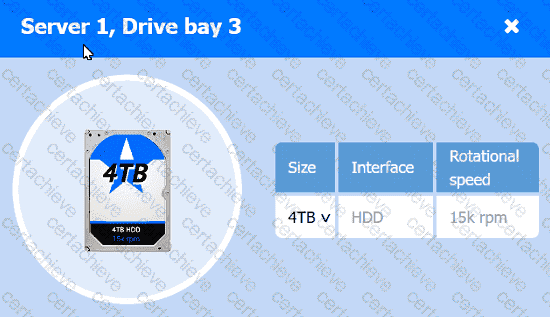

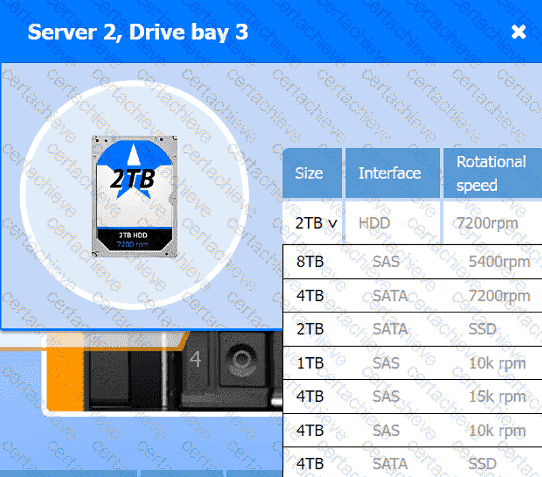

Recommended Replacement Drive:

To minimize performance degradation, the replacement drive should be:

SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).

Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.

In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications.

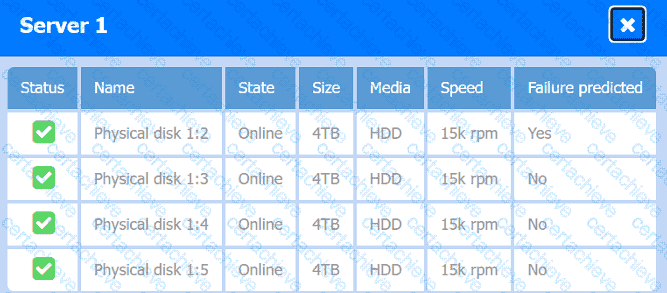

A user reports poor performance on the

application server.

INSTRUCTIONS

Click on Server 1 and Server 2 and review

the information presented in each chart to

determine which drives need to be replaced.

Select the appropriate replacement drive

that should be used, for the least

performance degradation to the server.

A computer server with many black and silver parts AI-generated content may be incorrect.A computer server with many black boxes Description automatically generated with medium confidence

A screen shot of a computer AI-generated content may be incorrect.A screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated
