The Fortinet NSE 6 - FortiClient EMS 7.4 Administrator (FCP_FCT_AD-7.4)

Based on the FortiClient EMS 7.2/7.4 Administration Guide and the EMS Administrator Study Guide , the integration with Active Directory (AD) provides several automated management capabilities.

1. Analysis of the True Statements:

B. FortiClient installations on domain endpoints can be deployed from FortiClient EMS:

FortiClient EMS allows administrators to create Deployment Profiles specifically for Windows endpoints discovered via AD.

By providing AD administrator credentials within the deployment profile, EMS can remotely push the FortiClient MSI installer to domain-joined endpoints that do not yet have the software installed.

C. Endpoint profiles can be assigned to endpoints based on domain groups:

The core benefit of AD integration is the ability to map Endpoint Policies to specific AD Organizational Units (OUs) or Security Groups .

When an endpoint policy is assigned to an AD group, all FortiClient endpoints belonging to that group automatically receive the associated security profiles (Antivirus, Web Filter, VPN, etc.) defined within that policy.

2. Why Other Options are Incorrect/Secondary:

A. FortiClient EMS has full read-write access on the AD server:

The curriculum states explicitly that the LDAP/AD connection is read-only .

EMS cannot modify AD objects, create users, or change group memberships; it only synchronized information from the AD server to the EMS database.

D. Imported AD endpoints cannot be directly deleted on FortiClient EMS:

While technically true in a functional sense (deleting a synced endpoint will result in it being re-added during the next sync unless it is removed from the AD OU), the curriculum typically prioritizes B and C as the primary functional "features" of the integration.

Note that the guide specifies the "Delete" action in the Endpoints pane is restricted to non-domain devices to prevent synchronization conflicts.

3. Summary of Integration Features:

Sync Schedule: EMS periodically syncs with AD (default every 10 minutes) to update the endpoint list.

Policy Automation: Moving a user or computer to a different group in AD will cause EMS to automatically update their security posture based on the new group's assigned policy.

Block Malicious Website has nothing to do with infected files. Since Realtime Protection is OFF, it will be allowed without being scanned.

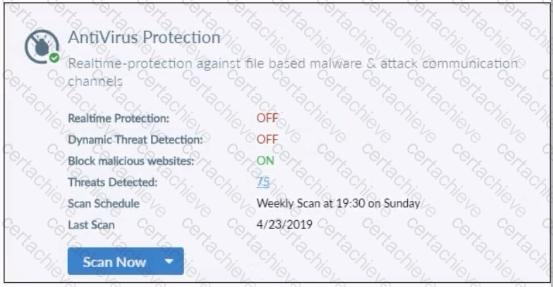

Based on the settings shown in the exhibit:

Realtime Protection: OFF

Dynamic Threat Detection: OFF

Block malicious websites: ON

Threats Detected: 75

The "Realtime Protection" setting is crucial for preventing infected files from being downloaded and executed. Since "Realtime Protection" is OFF, FortiClient will not actively scan files being downloaded. The setting "Block malicious websites" is intended to prevent access to known malicious websites but does not scan files for infections.

Therefore, when a user tries to download an infected file, FortiClient will allow the file to download without scanning it due to the Realtime Protection being OFF.

References

FortiClient EMS 7.2 Study Guide, Antivirus Protection Section

Fortinet Documentation on FortiClient Real-time Protection Settings

When FortiClient is installed on a Windows Server, the default behavior for real-time protection control is:

Real-time protection is disabled: By default, FortiClient does not enable real-time protection on server installations to avoid potential performance impacts and because servers typically have different security requirements compared to client endpoints.

Thus, real-time protection is disabled by default on Windows Server installations.

References

FortiClient EMS 7.2 Study Guide, Real-time Protection Section

Fortinet Documentation on FortiClient Default Settings for Server Installations

Understanding ZTNA Rule Configuration:

The ZTNA rule configuration shown in the exhibit defines how traffic is managed and controlled based on specific tags and conditions.

Evaluating Rule Components:

The rule includes security profiles to protect traffic by applying various security checks (A).

The rule also enforces access control by determining which endpoints can access the specified resources based on the ZTNA tag (D).

Eliminating Incorrect Options:

SNAT (Source Network Address Translation) is not mentioned as part of this ZTNA rule.

The rule does not define the access proxy but uses it to enforce access control.

Conclusion:

The correct statements about the ZTNA rule are that it applies security profiles to protect traffic (A) and enforces access control (D).

Understanding ZTNA:

Zero Trust Network Access (ZTNA) requires defining tags for identifying and managing endpoint access.

Evaluating Components:

FortiClient EMS is responsible for managing and defining ZTNA tag information within the Security Fabric.

Conclusion:

The correct component that defines ZTNA tag information in the Security Fabric integration is FortiClient EMS.

According to the FortiClient EMS Administrator Study Guide and official Technical Tips from Fortinet, when the web console is inaccessible (e.g., timing out), the administrator must use tools available directly on the server's operating system (CLI) to gather diagnostic information.

1. Why the CLI Diagnostic Tool (Answer A) is the Correct Choice:

Availability during Outage: When the GUI is unreachable, the standard "Generate Diagnostic Logs" option within the EMS interface is also unavailable.

Windows-based EMS: The administrator can manually run the EMSDiagnosticTool.exe located at C:\Program Files (x86)\Fortinet\FortiClientEMS\. This tool collects server information, Windows events, and EMS-specific logs into a compressed file for investigation.

Linux-based EMS (v7.4+): For newer versions running on Linux, the administrator can use the CLI command: sudo /opt/forticlientems/bin/diagnostic_tool -o /tmp/diag to generate a diagnostic package.

Service Verification: The CLI also allows administrators to verify if critical services (like fcems, apache2, or postgres) are running or if remote access has been disabled using the emscli utility.

2. Why Other Options are Incorrect:

B. Download webserver logs from PostgreSQL: PostgreSQL is the database engine for EMS, not the web server. While database logs are useful, they are not the primary method for gathering general "diagnostic information" and would typically be collected as part of the CLI diagnostic tool output rather than downloaded directly from the DB.

C. Diagnostic logs option from the GUI: This option is impossible to use if the administrator has lost web access and the page is timing out.

D. Download log generator from support site: While Fortinet provides various tools on their support site, the EMS Diagnostic Tool is natively installed with the FortiClient EMS software and is the primary, documented method for troubleshooting the EMS server itself.

Understanding Quick Scan Function:

The quick scan option on FortiClient is designed to scan certain elements of the system quickly for threats.

Evaluating Scan Scope:

The quick scan specifically targets executable files, DLLs, and drivers that are currently running, providing a rapid assessment of the active components of the system.

Conclusion:

The correct answer is D, as it accurately describes the function of the quick scan option on FortiClient.

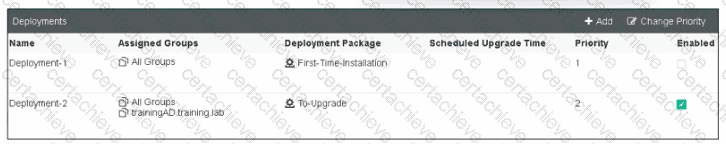

Deployment Profiles Analysis:

Deployment-1 has the "First-Time-Installation" package and is assigned to "All Groups" with a priority of 1 but is not enabled.

Deployment-2 has the "To-Upgrade" package, is assigned to both "All Groups" and "trainingAD.training.lab," with a priority of 2 and is enabled.

Evaluating Deployment-2:

Deployment-2 will upgrade FortiClient on both "All Groups" and "trainingAD.training.lab" since it is enabled and assigned to these groups. This includes both AD (Active Directory) groups and workgroups.

Conclusion:

Since Deployment-2 is set to upgrade FortiClient on all the assigned groups and workgroups, the correct answer is A.

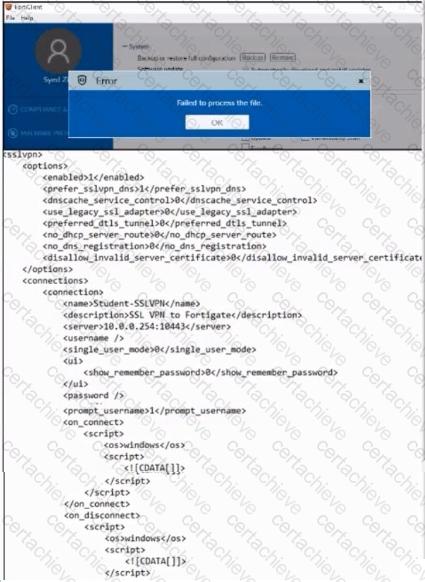

Based on the error message and the XML configuration file shown in the exhibit:

The error "Failed to process the file" typically indicates an issue with the XML syntax.

Upon reviewing the XML content, it is crucial to ensure that all tags are correctly formatted, properly opened and closed, and that there are no syntax errors.

Resolving any XML syntax errors will allow FortiClient to successfully process and restore the configuration file.

Therefore, the administrator must resolve the XML syntax error to fix the issue.

References

FortiClient EMS 7.2 Study Guide, Configuration File Management Section

General XML Syntax Guidelines and Best Practices
