The Nutanix Certified Professional - Cloud Integration - Azure (NCP-CI-Azure v6.7) (NCP-CI-Azure)

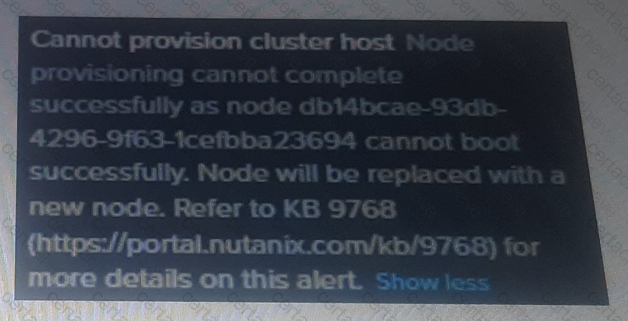

Error Message Analysis: The error message indicates that the node cannot boot successfully and will be replaced with a new node. This points towards an issue related to the specific node type or configuration.

Bare Metal Node Support: One common cause for such deployment failures is selecting a bare metal node type that is not supported in the chosen deployment region. Azure has specific regions where certain node types are available, and attempting to use an unsupported node type in a region can result in provisioning failures.

References:

Nutanix KB 9768 for troubleshooting deployment issues: KB 9768

Azure Region Availability Documentation

Nutanix NC2 on Azure Deployment Guide

To collect the appropriate logs (Cluster_agent, Host_agent, and Hostsetup) for diagnosing the deployment issue with Nutanix Support, the administrator should:

Log in to Prism Element to access the Controller VM (CVM) console.

Run the logbay collect command from the CVM console. This command collects the necessary logs and packages them for support.

This method ensures that the correct logs are gathered in a format that Nutanix Support can analyze. References

Nutanix Support Documentation on Log Collection

BGP Gateway Deployment: The BGP gateway is deployed as Azure native VMs within the Prism Central VNet. This deployment ensures seamless integration with Azure's networking infrastructure.

Route Advertisement: The BGP gateway advertises the externally routable IP addresses to the Azure Route Server. This setup allows for dynamic routing and efficient traffic management.

Flow Gateways (FGW) as Next Hops: Each active Flow Gateway's external IP address is used as the next hop. This configuration ensures that southbound traffic is correctly routed to the appropriate Flow Gateway, providing efficient and reliable connectivity.

References:

Nutanix NC2 Networking Guide

Azure Route Server and BGP Documentation

To efficiently terminate a Nutanix cloud cluster, the NC2 (Nutanix Cloud Clusters) Console should be used. The NC2 Console provides the necessary tools and interface specifically designed for managing and terminating Nutanix clusters within cloud environments, ensuring a seamless and efficient process. References

Nutanix Cloud Clusters Documentation

When selecting the NC2 subscription plan from the Nutanix billing portal, the available options are:

Pay-as-you-Go (PayG): Allows you to pay for the services as you use them, providing flexibility and avoiding upfront costs.

Bring your own License (BYOL): Enables you to use your existing Nutanix licenses within the cloud environment, offering cost savings if you already have licenses.

These options provide flexibility in how you can manage and pay for your Nutanix cloud clusters. References

Nutanix Cloud Clusters Pricing and Plans

Scenario Analysis :

A. Connectivity between sites already provides encryption : Using VTEP in this scenario is advantageous because VTEP does not inherently provide encryption. If encryption is already provided, VTEP can be effectively used without additional security concerns.

D. Multiple remote Availability Zones exist to add to the same VTEP-based extended Layer 2 subnet : VTEP is well-suited for scenarios where multiple remote Availability Zones need to be connected to the same extended Layer 2 subnet. This allows for efficient management and seamless connectivity across different zones.

Scenarios B and C :

B. Only one remote Availability Zone exists that needs the subnet extended : This scenario does not leverage the strengths of VTEP, as it is better suited for multiple zones.

C. Connectivity between sites already does not provide encryption : Using VTEP without existing encryption is not ideal as VTEP itself does not encrypt the traffic.

Conclusion : VTEP is advantageous when encryption is already in place and when multiple remote zones need to be connected to the same extended subnet.

References :

Nutanix NC2 Networking Guide

Azure Networking Documentation

Azure Private Endpoint: A Private Endpoint provides secure connectivity to Azure resources by enabling private access through the Azure backbone network. This ensures that the traffic does not traverse the internet, providing enhanced security and performance.

Delegated Subnet: By creating an Azure Private Endpoint for VMs in a delegated subnet, the administrator ensures that the VMs can access Azure resources directly and securely without using the public internet.

References:

Azure Private Endpoint Documentation

Nutanix NC2 Networking Configuration Guide

NATed Path Configuration : When using the NATed Path, it is essential to ensure that traffic can flow out of the Flow gateway VM to external networks.

Default Route : Adding a default route on the Nutanix User VPC ensures that all outbound traffic is directed to the appropriate network gateway.

Configuration Steps :

Navigate to the routing settings of the Nutanix User VPC.

Add a default route with the destination of 0.0.0.0/0, pointing to the External Overlay network.

Security Group Settings :

Ensure that the External Flow Gateway Security Group on the External NIC allows outbound traffic.

Ensure that the Internal Flow Gateway Security Group on the internal NIC allows outbound traffic (if needed for internal network flows).

Conclusion : Properly configuring the default route on the Nutanix User VPC enables outbound traffic flow via the NATed Path through the External Overlay network.

References :

Nutanix Flow Gateway Configuration Guide

Azure VPC Routing Documentation

Azure Directory Service Role : Azure Directory Service must be able to resolve specific Nutanix URLs to ensure proper communication and functionality during the deployment of an NC2 cluster.

Critical Endpoint : The address "Gateway-external-api.cloud.nutanix.com" is critical for establishing external API communications required for the deployment and management of the NC2 cluster.

DNS Resolution : Proper DNS resolution of this address ensures that the Azure Directory Service can interact with Nutanix services and APIs necessary for cluster operations.

Verification Process :

Ensure that DNS settings allow resolution of "Gateway-external-api.cloud.nutanix.com".

Test connectivity and resolution prior to deployment to avoid issues.

Importance : Without resolving this address, the deployment process might face connectivity issues, leading to potential deployment failures.

References :

Nutanix NC2 on Azure Setup Guide

Azure Active Directory Integration
