The Dell Information Storage and Management Foundations v2 Exam (D-ISM-FN-01)

A stub file is a small placeholder file that remains on primary storage after data has been archived or moved to secondary storage.

It contains a pointer or address of the archived data’s location.

When accessed, the data is transparently retrieved from the archive.

Address of the source file and other options do not accurately describe a stub file’s purpose.

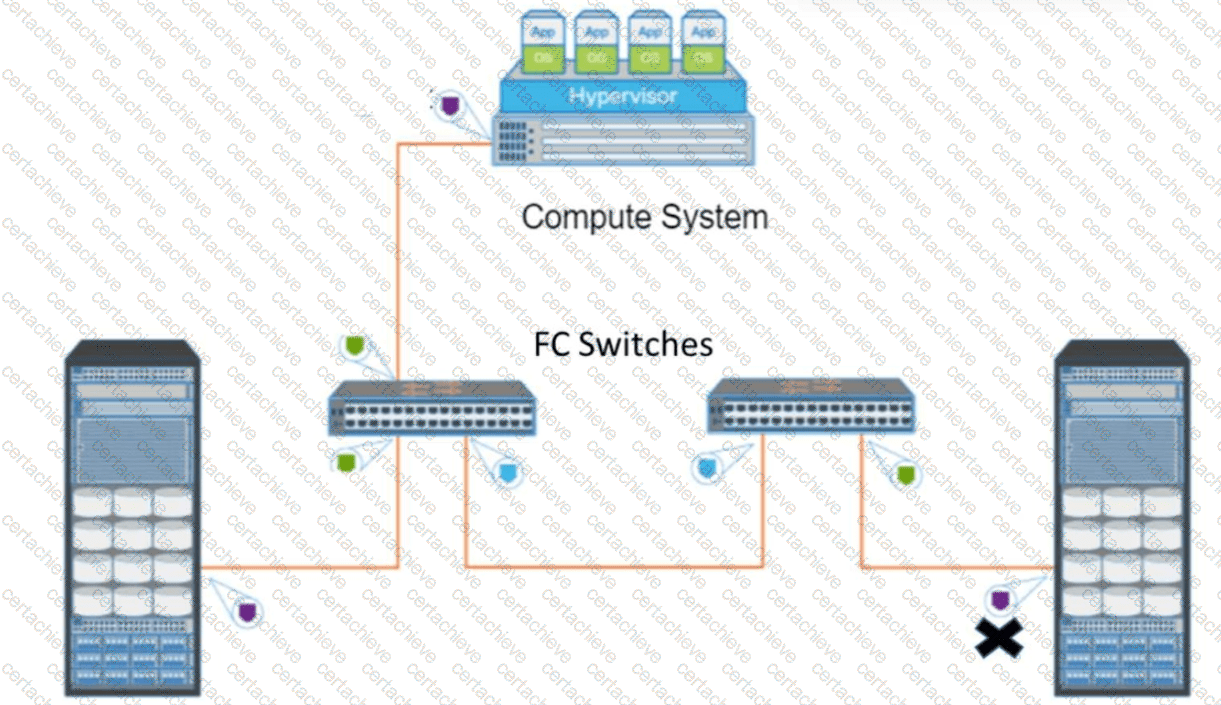

The exhibit shows a Fibre Channel (FC) switch connected to another FC switch. The port "X" is used for inter-switch link (ISL) connectivity, which is characteristic of an E_port (Expansion Port) .

F_port (Fabric port): Connects an N_port (host or storage device) to a switch.

N_port (Node port): End device port in FC networks (like HBA in hosts or storage).

NL_port (Node Loop port): Used for Arbitrated Loop topologies.

E_port: Connects two FC switches together for ISL, which is exactly what's shown in the exhibit.

Full Detailed Explanation with Step by Step Solutions:

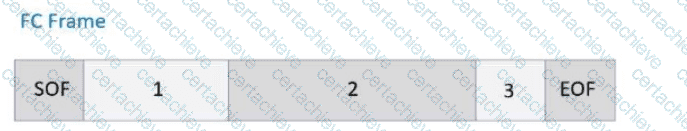

A standard Fibre Channel (FC) frame consists of several fields in a specific order. The typical sequence for an FC data frame is:

1️ ⃣ Frame header: Contains control and addressing information.

2️ ⃣ Data field: Carries the actual payload (up to 2112 bytes).

3️ ⃣ CRC (Cyclic Redundancy Check): Ensures data integrity of the frame.

The diagram in the exhibit shows exactly this ordering:

SOF (Start of Frame) – marks the beginning of the frame.

1 (Frame header) – the control and addressing info.

2 (Data field) – the main data payload.

3 (CRC) – for error checking.

EOF (End of Frame) – marks the end of the frame.

Configuration Management is the process that ensures all configuration items (CIs) are identified, tracked, and maintained throughout their lifecycle. It maintains a Configuration Management Database (CMDB) that records the relationships and configurations of various components in the IT environment.

In continuous data protection (CDP), journal space stores all the changes made to data over time. The amount of journal space determines the retention window, i.e., how far back in time data can be recovered. A larger journal allows for a longer recovery window.

Amount of space the source and replica volumes require: Relates to storage capacity, not recovery time.

Length of time required to recover the data: Depends on system performance and data size.

Amount of data that can be restored to a specific point: Depends on the changes captured in the journal.

Infrastructure as a Service (IaaS) is a cloud computing model that provides virtualized computing resources over the internet. It offers fundamental infrastructure services such as compute, storage, and networking, which users can provision and manage through a self-service portal. This model allows organizations to scale resources as needed and pay only for what they use.

The Transport layer (Layer 4) of the OSI model ensures reliable data transfer between systems by providing:

End-to-end connections – manages communication sessions

Sequencing – orders data packets

Integrity – error detection and correction

Session (Layer 5) : Manages sessions and controls dialogues between systems.

Data Link (Layer 2) : Deals with local network frame delivery.

Presentation (Layer 6) : Translates data formats (like encryption, compression).

VM cloning allows administrators to create exact copies of a virtual machine quickly.

Saves time compared to manually configuring new VMs.

Useful for testing, development, and scaling environments.

Each clone can be independently modified after creation.

Same IP address is typically not the case (clones get unique addresses).

Snapshots provide rollback points, not full VM clones.

Performance does not improve because of cloning itself.

Cloud-based backup solutions are managed by third-party providers and offer easy scalability, flexibility, and reduced IT management overhead. They allow businesses to focus on operations while the provider manages infrastructure, updates, and capacity.

Image-based backup: Captures entire system images but may still require local storage and management.

Agent-based backup: Deploys agents to servers, requiring management of the agents.

Tape-based backup: Involves hardware and manual processes for storage, increasing management burden.
