The Fortinet NSE 7 - Enterprise Firewall 7.6 Administrator (FCSS_EFW_AD-7.6)

Comprehensive and Detailed 150 to 200 words of Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:

According to the FortiOS 7.6 Administration Guide and the FortiGate Infrastructure study materials, inter-VDOM communication can be achieved using either software-based VDOM links or hardware-accelerated NPU VDOM links (vlinks).

While standard VDOM links (Option B) allow traffic to pass between VDOMs, they are processed by the system CPU, which can become a bottleneck in high-throughput environments. To ensure accelerated internet access as specified in the requirements, NPU vlinks (Option C) must be used. NPU vlinks are virtual interfaces created in pairs that allow traffic to be offloaded to the FortiGate’s Network Processor (NP6, NP7, etc.), significantly reducing latency and CPU overhead.

In the provided exhibit, the root VDOM has direct internet access, while VDOM1 and VDOMn do not. By configuring NPU vlinks between the non-root VDOMs and the root VDOM, you create a hardware-accelerated path. Traffic from the internal VDOMs is sent through the vlink to the root VDOM, which then forwards it to the Internet. This " hub-and-spoke " VDOM architecture, powered by NPU acceleration, ensures that all VDOMs share the internet connection without sacrificing performance.

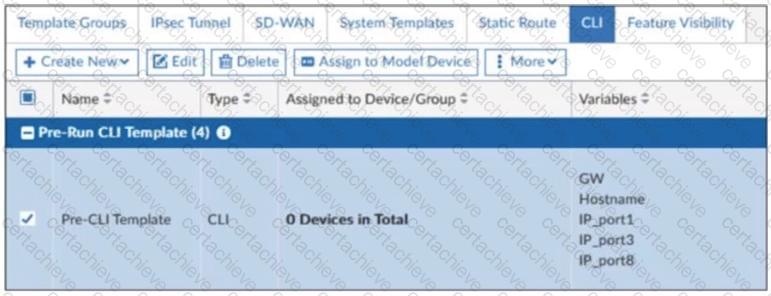

In FortiManager, pre-run CLI templates are used in Zero-Touch Provisioning (ZTP) and Low-Touch Provisioning (LTP) to configure a FortiGate device before it is fully managed by FortiManager.

These templates apply configurations when a device is initially provisioned. Once the pre-run CLI template is executed, FortiManager automatically unassigns it from the device because it is not meant to persist like other policy configurations. This prevents conflicts and ensures that the FortiGate configuration is not repeatedly applied after the initial setup.

According to the FortiOS 7.6 Infrastructure study guide and High Availability (HA) documentation, FortiGate units in an HA cluster use a virtual MAC address to ensure seamless failover. The structure of this virtual MAC address is strictly defined by the Fortinet HA protocol.

For a standard HA cluster, the virtual MAC address format is 00:09:0f:09: < group-id_hex > : < vcluster_port_hex > . However, when VDOMs are enabled, the virtual MAC address prefix changes to e0:23:ff to accommodate the additional complexity of multiple virtual domains. Therefore, the prefix e0:23:ff in the suspicious MAC address e0:23:ff:fc:00:86 confirms that the packet originated from a cluster with VDOMs enabled (Option A).

Regarding the interface identification, the last byte (86) is calculated as follows:

The 0x80 bit indicates virtual-cluster 2 (vcluster 2). Since $0x86 = 0x80 + 0x06$, we know the packet is from vcluster 2.

The remaining value 0x06 represents the interface index. In FortiOS, the index starts at 0 (port1 = 0, port2 = 1, port3 = 2, port4 = 3, port5 = 4, port6 = 5, port7 = 6). Therefore, the index 6 corresponds exactly to port 7 (Option D).

The fourth byte (fc) represents the HA Group ID (252 in decimal). While this is indeed lower than 255, the specific logic of the virtual MAC composition in a VDOM-enabled environment points specifically to the port identification and vcluster status as the primary diagnostic conclusions.

The Fortinet FGSP (FortiGate Session Life Support Protocol) cluster allows session synchronization between two FortiGate devices to provide seamless failover. However, ICMP (ping) is a connectionless protocol, and by default, FortiGate does not synchronize connectionless sessions unless explicitly enabled.

In the exhibit:

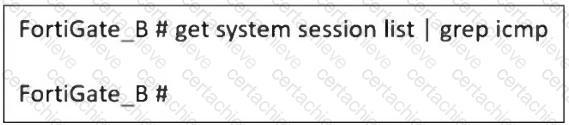

● The command get system session list | grep icmp on FortiGate_B returns no output, meaning that ICMP sessions are not being synchronized from FortiGate_A.

● If session-pickup-connectionless is disabled, FortiGate_B will not receive ICMP sessions, causing packet loss during failover.

When using IPsec VPNs and VXLAN, additional headers are added to packets, which can exceed the default 1500-byte MTU. This can lead to fragmentation issues, dropped packets, or degraded performance.

To resolve this, the MTU (Maximum Transmission Unit) should be adjusted only if all devices in the network path support it. Otherwise, some devices may still drop or fragment packets, leading to continued issues.

Why adjusting MTU helps:

● VXLAN adds a 50-byte overhead to packets.

● IPsec adds additional encapsulation (ESP, GRE, etc.), increasing the packet size.

● If packets exceed the MTU, they may be fragmented or dropped, causing intermittent connectivity issues.

● Lowering the MTU on interfaces ensures packets stay within the supported size limit across all network devices.

Comprehensive and Detailed 150 to 200 words of Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:

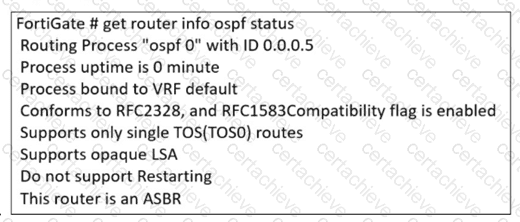

Based on the FortiOS 7.6 Infrastructure study guide and official documentation regarding OSPF monitoring, the command output get router info ospf status provides critical details about the OSPF process.

Injecting External Information (Option D): The last line of the exhibit explicitly states, " This router is an ASBR " (Autonomous System Boundary Router). By definition in the OSPF protocol, an ASBR is a router that connects the OSPF network to another routing domain (such as BGP, Static, or Connected routes) and is responsible for injecting external routing information into the OSPF domain.

OSPF ECMP Support (Option B): The output indicates that the OSPF process " Conforms to RFC2328 " . RFC 2328 is the standard for OSPFv2, which includes the capability for Equal-Cost Multi-Path (ECMP). In FortiOS, the OSPF engine supports multi-path routing by default, allowing the device to utilize multiple paths to the same destination if they share the same cost.

Option A is incorrect because the output does not indicate the router ' s DR/BDR election status on a specific segment. Option C is incorrect because " ID 0.0.0.5 " refers to the Router ID, not the OSPF Area ID.

The OSPF database optimization is necessary to reduce unnecessary routing information and improve network performance. In the given topology, Area 0.0.0.1 is a non-backbone area connected to Area 0.0.0.0 (the backbone area) through an Area Border Router (ABR).

To optimize OSPF in this scenario, configuring Area 0.0.0.1 as a Stub Area will:

● Reduce the size of the OSPF database by preventing external routes (from outside OSPF) from being injected into Area 0.0.0.1.

● Allow only intra-area and inter-area routes, meaning routers in Area 0.0.0.1 will rely on a default route for external destinations.

● Improve convergence time and reduce router processing load since fewer LSAs (Link-State Advertisements) are exchanged.

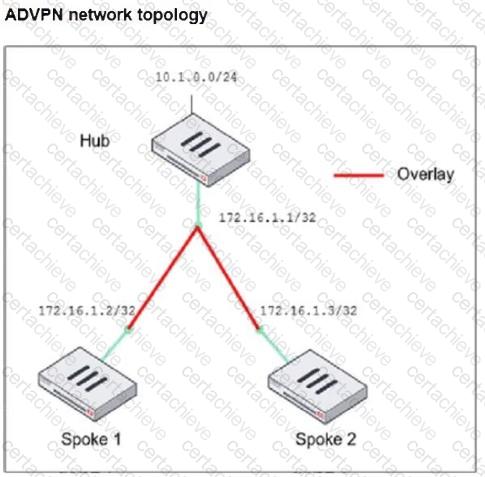

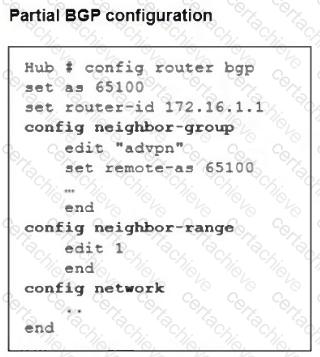

When designing an ADVPN (Auto-Discovery VPN) network for a large enterprise with spokes that have varying numbers of internet links, the main challenge is to minimize the number of peer connections and routes at the hub while maintaining scalability and efficiency.

Using a dynamic routing protocol (such as BGP or OSPF) with loopback interfaces helps in several ways:

● Reduces the number of peer connections at the hub by using a single loopback address per spoke instead of individual physical interfaces.

● Enables simplified route advertisement by dynamically learning and propagating routes instead of manually configuring static routes.

● Supports multiple internet links per spoke efficiently, as dynamic routing can automatically adjust to the best available path.

● Allows seamless failover if a spoke’s internet link fails, ensuring continuous connectivity.

Based on the packet capture provided in the exhibit and Fortinet ' s Enterprise Firewall 7.6 inspection standards:

Web Filtering Effectiveness (B): The exhibit shows the Server Name Indication (SNI) extension within the Client Hello, specifically indicating the hostname www.fortinet.com. When a firewall policy is configured for SSL Certificate Inspection , the FortiGate does not decrypt the payload but instead relies on the SNI or the certificate ' s Subject/SAN fields to identify the website. Therefore, a web filtering profile can effectively categorize and block/allow this traffic based on the domain name found in the SNI.

TLS Version Support (D): The supported_versions extension is a feature introduced with TLS 1.3 to negotiate the version of the handshake. In the exhibit, the extension explicitly lists two versions: TLS 1.3 (0x0304) and TLS 1.2 (0x0303) . This tells the FortiGate exactly which protocols the client is capable of using for this session.

Why A is incorrect: Antivirus profiles require Deep SSL Inspection (full decryption) to scan the actual files and payload of the session. Since the policy is using Certificate Inspection , the FortiGate cannot see the cleartext data, rendering the antivirus profile ineffective for this encrypted traffic.

Why C is incorrect: While the Subject Alternative Name (SAN) is a common way to identify a site, it is found in the server ' s certificate. In this specific capture, the SNI (Server Name Indication) is already present in the Client Hello, which allows the FortiGate to apply security profiles even before the server ' s certificate is seen.
