The Fortinet NSE 7 - Security Operations 7.6 Architect (NSE7_SOC_AR-7.6)

Exact Extract: “If there is more than one subpattern, you must specify the logic between the subpatterns and define the subpattern relationship and constraints.”

Exact Extract: “FortiSIEM also supports rules with multiple subpatterns… Subpattern X was FOLLOWED BY subpattern Y within the time window.”

Exact Extract: “This slide shows a multiple subpattern rule. The rule contains two subpatterns… with a FOLLOWED_BY operator… To ensure FortiSIEM is correlating the proper logs… [matching fields] must match. This is the relationship, also called a constraint, between the two subpatterns.”

The correct answers are C, D, and E . You need two subpatterns because the detection contains two different event patterns: repeated failed logins and a later successful login. You then need FOLLOWED_BY because the successful login must occur after the failed-login sequence, not merely within the same time range. Finally, you must define subpattern relationships and constraints , matching source IP address and user, so FortiSIEM does not correlate failed logins from one user or host with a successful login from a different user or host. A is wrong because failed-login and successful-login subpatterns normally require different filters and often different aggregate thresholds. B is not the best answer as written because the key requirement is the rule/subpattern relationship within the 15-minute correlation window, not simply assigning independent time windows to each subpattern.

Technical Deep Dive: The clean FortiSIEM logic is: failed-login subpattern with an aggregate such as COUNT(Matched Events) > = N, success-login subpattern with COUNT(Matched Events) > = 1, a FOLLOWED_BY operator, and constraints like FailedLogin Source IP = SuccessLogin Source IP and FailedLogin User = SuccessLogin User. The time window should represent 15 minutes, usually 900 seconds. This is correlation-engine behavior; FortiGate NP/CP hardware offload has no role because FortiSIEM is analyzing normalized log events, not accelerating packet forwarding.

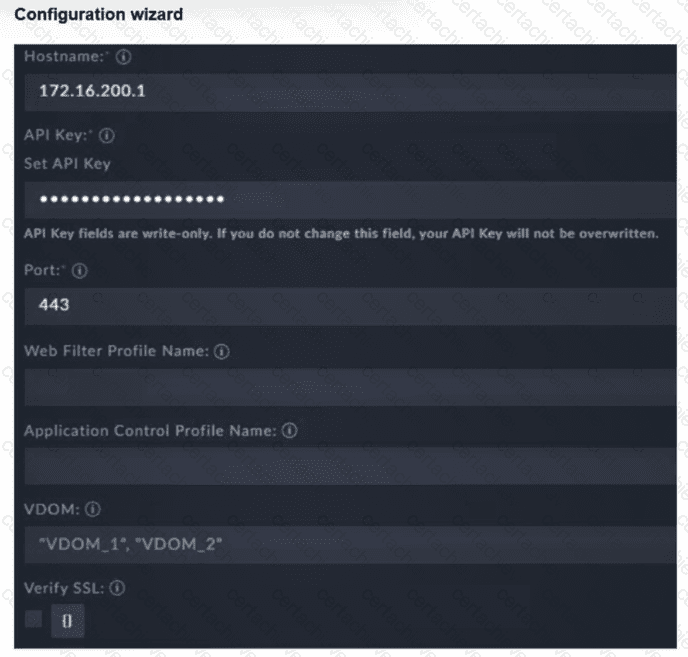

To establish a successful integration between FortiSOAR 7.6 and a FortiGate firewall via the FortiGate connector, specific administrative and network requirements must be met on the FortiGate side:

API Administrator and Key (D): FortiSOAR does not use standard UI login credentials. Instead, it requires a REST API Administrator account to be created on the FortiGate. This account must be assigned an administrative profile with the necessary permissions (e.g., Read/Write for Firewall policies or Address objects). Upon creation, the FortiGate generates a unique API Key , which must be entered into the " API Key " field of the FortiSOAR configuration wizard as shown in the exhibit.

HTTPS Management Access (C): The connector communicates with the FortiGate using REST API calls over HTTPS (port 443 by default). Therefore, the physical or logical interface on the FortiGate that corresponds to the " Hostname " IP (172.16.200.1) must have HTTPS enabled under " Administrative Access " in its network settings. If HTTPS is disabled, the connection will time out or be refused.

Why other options are incorrect:

Trusted hosts (A): While it is a best practice to restrict API access to specific IPs (like the FortiSOAR IP), the integration can technically function without " Trusted hosts " enabled if the network allows the traffic. However, the absence of an API key or HTTPS access will definitively cause a failure regardless of trusted host settings.

VDOM name (B): In the exhibit, the VDOM field contains multiple values ( " VDOM_1 " , " VDOM_2 " ). If VDOMs are disabled on the FortiGate, this field should generally be left blank or set to the default " root. " Setting it specifically to " VDOM_1 " when VDOMs are disabled is not a universal requirement for connectivity; the primary handshake depends on the API key and HTTPS connectivity.

Exact Extract: “Click a playbook step to display the input, output, and configuration for that step. You can click ENV to toggle between the environment in which the playbook was executed and the steps of the playbook.” The guide also states that the ENV view contains “the complete environmental context, including input, output, and variables across all steps.”

Exact Extract: “Click Error Details to view the reason for a playbook failure. This helps you identify the root cause of the error and troubleshoot.”

The correct answer is C . The goal is to continue execution from the failed point while preserving the already-built runtime context from steps 1 through 29. Rerun From Last Failed Step is specifically designed for this situation. It avoids repeating prior successful steps and continues with the original environment, variables, inputs, and outputs already generated before the failure.

Option A is wrong because mock input is for testing or debugging and can override real step output. Option B is only useful for testing Jinja expressions against an environment JSON; it does not continue playbook execution. Option D is a bad design change: manually rewiring the playbook bypasses intended workflow logic and does not reliably preserve prior execution context.

Technical Deep Dive: In FortiSOAR, long playbooks often build dependency chains where later connector actions rely on earlier outputs, variables, decisions, record IDs, and enrichment data. Starting over can duplicate records, re-run remediation, or overwrite evidence. The correct operational recovery is to use the executed playbook log and resume from the failed step after fixing the transient condition. FortiGate NP/CP offloading is irrelevant because this is SOAR workflow execution state, not firewall packet processing.

The Pyramid of Pain (David Bianco) is a core concept taught in FortiSIEM 7.3 and FortiSOAR 7.6 curriculum to help SOC analysts prioritize threat intelligence and detection logic. The model ranks indicators based on the " pain " or effort they cause an adversary to change:

IP Addresses (Easy): These are classified as " Easy " to change. An attacker can simply rotate through a proxy service, use a different VPS, or utilize a new compromised host to continue their campaign. While more valuable than a file hash, they provide relatively low-long term value to the defender because they are so ephemeral.

TTPs (Tough/Hard): This is the apex of the pyramid. TTPs (Tactics, Techniques, and Procedures) represent the fundamental way an adversary operates. If a defender successfully detects and blocks a Tactic (e.g., a specific way an attacker performs privilege escalation), the adversary is forced to reinvent their entire operational process, which is time-consuming and difficult.

Why other options are incorrect:

Artifacts (C): According to the pyramid, Network/Host Artifacts are classified as " Annoying " , not " Easy " . While an attacker can change them, it requires modifying their code or script behavior, which causes more friction than simply switching an IP address.

Tools (D): Tools are classified as " Challenging " . While alternatives exist, an adversary usually invests significant time mastering a specific toolset; losing the ability to use that tool effectively disrupts their efficiency significantly.

Understanding Automation Processes in FortiAnalyzer:

FortiAnalyzer can automate responses to detected security events, such as running commands on FortiGate devices.

Analyzing the Customer Requirement:

The customer wants to run a CLI command on FortiGate to block predefined URLs when a botnet C & C server IP is detected.

This requires an automated response triggered by a specific event.

Evaluating the Options:

Option A: Playbooks orchestrate complex workflows but are not typically used for direct event-triggered automation processes.

Option B: Data selectors filter logs based on criteria but do not initiate automation processes.

Option C: Event handlers can be configured to detect specific events (such as detecting a botnet C & C server IP) and trigger automation stitches to execute predefined actions.

Option D: Connectors facilitate communication between FortiAnalyzer and other systems but are not the primary mechanism for initiating automation based on log events.

Conclusion:

To start the automation process when a botnet C & C server IP is detected, you must use an Event handler in FortiAnalyzer.

Overview of Indicators of Compromise (IoCs) : Indicators of Compromise (IoCs) are pieces of evidence that suggest a system may have been compromised. These can include unusual network traffic patterns, the presence of known malicious files, or other suspicious activities.

FortiAnalyzer ' s Role : FortiAnalyzer aggregates logs from various Fortinet devices to provide comprehensive visibility and analysis of network events. It uses these logs to identify potential IoCs and compromised hosts.

Relevant Log Types :

DNS Filter Logs :

DNS requests are a common vector for malware communication. Analyzing DNS filter logs helps in identifying suspicious domain queries, which can indicate malware attempting to communicate with command and control (C2) servers.

In the context of the Fortinet Security Fabric, FortiAnalyzer performs Indicator of Compromise (IOC) detection by correlating various security logs against a threat intelligence database. 3 The IOC engine specifically analyzes the following logs of each end user to identify potentially compromised hosts:

Web Filter Logs (A): The engine parses web filtering logs to identify access attempts to blacklisted URLs, malicious domains, or IPs associated with known malware distribution sites. 4 If a match is found in the threat database, the host is flagged as compromised.

DNS Filter Logs (C): DNS requests are a primary indicator of a compromise. The engine monitors these logs for queries directed at known Command and Control (C2) servers or domains generated by Domain Generation Algorithms (DGA). 5

IPS Logs (E): Intrusion Prevention System (IPS) logs provide critical data on signature matches for known attacks. In newer Security Operations (SOC) curricula, IPS logs are used alongside Web and DNS logs to provide a high-fidelity assessment of whether a host is currently infected and attempting to communicate with an external threat actor.

Why other options are incorrect:

Email Filter Logs (B): While important for detecting phishing attempts (Initial Access), email logs are generally used for content filtering and antispam rather than being a primary source for the IOC engine ' s behavioral " calling home " detection in the FortiAnalyzer Compromised Hosts view.

Application Filter Logs (D): Application control logs provide visibility into software usage but are less commonly used by the core IOC engine for identifying blacklisted network destinations compared to Web and DNS filtering.

Understanding FortiAnalyzer Roles :

FortiAnalyzer can operate in two primary modes: collector mode and analyzer mode.

Collector Mode : Gathers logs from various devices and forwards them to another FortiAnalyzer operating in analyzer mode for detailed analysis.

Analyzer Mode : Provides detailed log analysis, reporting, and incident management.

Steps to Configure FortiAnalyzer as a Collector Device :

A. Enable Log Compression :

While enabling log compression can help save storage space, it is not a mandatory step specifically required for configuring FortiAnalyzer in collector mode.

Not selected as it is optional and not directly related to the collector configuration process.

B. Configure Log Forwarding to a FortiAnalyzer in Analyzer Mode :

Essential for ensuring that logs collected by the collector FortiAnalyzer are sent to the analyzer FortiAnalyzer for detailed processing.

Selected as it is a critical step in configuring a FortiAnalyzer as a collector device.

Step 1 : Access the FortiAnalyzer interface and navigate to log forwarding settings.

Step 2 : Configure log forwarding by specifying the IP address and necessary credentials of the FortiAnalyzer in analyzer mode.

According to the specialized threat hunting modules and frameworks within FortiSOAR 7.6 and the advanced analytics capabilities of FortiSIEM 7.3 , threat hunting is defined as a proactive, human-led search for threats that have bypassed automated security controls. The three selected activities are core components of this lifecycle:

Generate a hypothesis (C): This is the fundamental starting point of a " Structured Hunt. " Analysts develop a testable theory—based on recent threat intelligence (such as a new TTP identified by FortiGuard) or environmental risk—about how an attacker might be operating undetected in the network.

Enrich records with threat intelligence (A): During the investigation phase, hunters use the Threat Intelligence Management (TIM) module in FortiSOAR to enrich technical data (IPs, hashes, URLs) with external context. This helps determine if an anomaly discovered during the hunt is indeed malicious or part of a known campaign.

Perform packet analysis (D): Since advanced threats often live in the " gaps " between log files, hunters frequently perform deep-packet or network-flow analysis using FortiSIEM’s query tools or integrated NDR (Network Detection and Response) data to identify suspicious lateral movement or C2 (Command and Control) communication patterns that standard alerts might miss.

Why other options are excluded:

Automate workflows (B): While SOAR is designed for automation, the act of " automating " is a DevOps or SOC engineering task. Threat hunting itself is a proactive investigation; while playbooks can assist a hunter (e.g., by automating the data gathering), the act of hunting remains a manual or semi-automated cognitive process.

Tune correlation rules (E): Tuning rules is a reactive maintenance task or a " post-hunt " activity. Once a threat hunter finds a new attack pattern, they will then tune SIEM correlation rules to ensure that specific threat is detected automatically in the future. The tuning is the result of the hunt, not the activity of hunting itself.
