The Aruba Certified Campus Access Associate Exam (HPE6-A85)

In a 2.4GHz WLAN environment, channels 1, 6, and 11 are recommended for use simultaneously to avoid co-channel interference because these channels do not overlap with each other. Each of these channels is separated by enough frequency space to ensure that the signals do not interfere, which is not the case with other channel combinations.

ClientMatch is an Aruba patented technology that helps to move sticky clients—clients that stay connected to an AP even when there are better APs available—to a more appropriate AP. This technology ensures that clients are always connected to the best available AP, optimizing both the client's performance and the overall performance of the wireless network.

A static route is a route that is manually configured on a router or switch and does not change unless it is modified by an administrator. Static routes are used to specify how traffic should reach specific destinations that are not directly connected to the device or that are not reachable by dynamic routing protocols. In Aruba CX switches, static routes can be configured using the ip route command in global configuration mode. Based on the “show ip route” output on an Aruba CX 8400 switch, the route “10.1 20 0/24, vrf default via 10.1.12.2, [1/0]” is a static route because it has an administrative distance of 1 and a metric of 0, which are typical values for static routes. References: https://en.wikipedia.org/wiki/Static_routing https://www.arubanetworks.com/techdocs/AOS-CX_10_04/NOSCG/Content/cx-noscg/ip-routing/static-routes.htm https://www.arubanetworks.com/techdocs/AOS-CX_10_04/NOSCG/Content/cx-noscg/ip-routing/show-ip-route.htm

 EAP-TLS is an authentication method that requires client certificates when authenticating to the network. It provides mutual authentication between the client and the server using public key cryptography and digital certificates. References: https://www.arubanetworks.com/techdocs/ClearPass/6.9/Guest/Content/CPPM_UserGuide/EAP-TLS/EAP-TLS.htm

EAP-TLS (Extensible Authentication Protocol-Transport Layer Security) is an EAP method that requires both server-side and client-side certificates for authentication. It is considered one of the most secure EAP methods because it uses a mutual authentication process where both the user and the authentication server must prove their identities to each other through the use of certificates. Implementing user and device certificates via a Group Based Policy (GPO) aligns well with EAP-TLS requirements for client-side certificates.

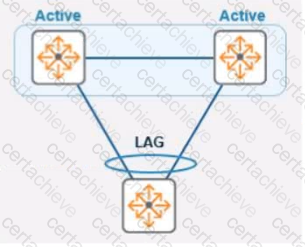

To provide an LACP connection with the maximum available bandwidth, one should configure a link aggregation group (LAG) using all available ports that can be used for data transfer. Since the SFP56 ports are used for stacking, the next best option is to use the 2 SFP28 ports and as many SmartRate 5G (SR5) ports as possible on each switch, which would allow for a 16-member LAG, with 2 SFP28 and 6 SR5 ports on each switch contributing to the LAG.

The correct command to add a static route to a class-c-network 10.2.10.0 via a gateway of 172.16.1.1 is ip-route 10.2.10.0/24 172.16.1.1 . This command specifies the destination network address (10.2.10.0) and prefix length (/24) and the next-hop address (172.16.1 .1) for reaching that network from the switch. The other commands are either incorrect syntax or incorrect parameters for adding a static route. References: https://www.arubanetworks.com/techdocs/AOS-CX_10_04/NOSCG/Content/cx-noscg/ip-routing/static-routes.htm

To add a static route in network devices, including Aruba switches, the correct command format generally includes the destination network, subnet mask (or CIDR notation for the mask), and the next-hop IP address. The command "ip route 10.2.10.0/24 172.16.1.1" correctly specifies the destination network "10.2.10.0" with a class C subnet mask indicated by "/24", and "172.16.1.1" as the next-hop IP address. This command is succinct and follows the standard syntax for adding a static route in many network operating systems, including ArubaOS-CX. The other options either have incorrect syntax or include additional unnecessary parameters that are not typically part of the standard command to add a static route.

The command that is used to set a default route to 10.4.5.1 on an Aruba CX switch when in-band management using an SVI is being used is ip route 0.0 0 0/0 10.4.5.1 . This command specifies the destination network address (0.0 0 0) and prefix length (/0) and the next-hop address (10.4.5.1) for reaching any network that is not directly connected to the switch. The default route applies to the default VRF Virtual Routing and Forwarding. VRF is a technology that allows multiple instances of a routing table to co-exist within the same router at the same time. VRFs are typically used to segment network traffic for security, privacy, or administrative purposes. , which is used for in-band management traffic that goes through an SVI Switch Virtual Interface. SVI is a virtual interface on a switch that allows the switch to route packets between different VLANs on the same switch or different switches that are connected by a trunk link.  An SVI is associated with a VLAN and has an IP address and subnet mask assigned to it 1 2 . References:  1  https://www.arubanetworks.com/techdocs/AOS-CX/10_08/HTML/ip_route_4100i-6000-6100-6200/Content/Chp_StatRoute/def-rou.htm  2   https://www.arubanetworks.com/techdocs/AOS-CX/10_08/HTML/ip_route_4100i-6000-6100-6200/Content/Chp_VRF/vrf-overview.htm

The signal to noise ratio (SNR) is a measure that compares the level of a desired signal to the level of background noise. SNR is defined as the ratio of signal power to the noise power, often expressed in decibels (dB).  A high SNR means that the signal is clear and easy to detect or interpret, while a low SNR means that the signal is corrupted or obscured by noise and may be difficult to distinguish or recover 3 . To calculate the SNR in dB, we can use the following formula:

SNR (dB) = Signal power (dBm) - Noise power (dBm)

In this question, we are given that the noise floor measures -90 dBm (0.000000001 milliwatts) and the receiver’s signal strength is -65 dBm (0.000316 milliwatts). Therefore, we can plug these values into the formula and get:

SNR (dB) = -65 dBm - (-90 dBm) SNR (dB) = -65 dBm + 90 dBm SNR (dB) = 25 dBm

Therefore, the correct answer is that the SNR is 25 dBm.

References:  3  https://en.wikipedia.org/wiki/Signal-to-noise_ratio

The 802.1x authentication process begins after the client device completes the 802.11 association with the access point but before the WPA 4-Way Handshake. This is part of the EAP (Extensible Authentication Protocol) process, which authenticates the device before allowing full network access.
