The Designing and Implementing a Microsoft Azure AI Solution (AI-102)

The wiki contains text in English, French and Portuguese.

Scenario: All planned projects must support English, French, and Portuguese.

The Document Extraction skill extracts content from a file within the enrichment pipeline. This allows you to take advantage of the document extraction step that normally happens before the skillset execution with files that may be generated by other skills.

Note: The Translator Text API will be used to determine the from language. The Language detection skill is not required.

Within a search service, synonym maps are a global resource that associate equivalent terms, expanding the scope of a query without the user having to actually provide the term. For example, assuming " dog " , " canine " , and " puppy " are mapped synonyms, a query on " canine " will match on a document containing " dog " .

Create synonyms: A synonym map is an asset that can be created once and used by many indexes.

Scenario: When the response confidence score is low, ensure that the chatbot can provide other response options to the customers.

When no good match is found by the ranker, the confidence score of 0.0 or " None " is returned and the default response is " No good match found in the KB " . You can override this default response in the bot or application code calling the endpoint. Alternately, you can also set the override response in Azure and this changes the default for all knowledge bases deployed in a particular QnA Maker service.

Choosing Ranker type: By default, QnA Maker searches through questions and answers. If you want to search through questions only, to generate an answer, use the RankerType=QuestionOnly in the POST body of the GenerateAnswer request.

Can search content in different formats, including video

Audio and video insights (multi-channels). When indexing by one channel, partial result for those models will be available.

Keywords extraction: Extracts keywords from speech and visual text.

Named entities extraction: Extracts brands, locations, and people from speech and visual text via natural language processing (NLP).

Topic inference: Makes inference of main topics from transcripts. The 2nd-level IPTC taxonomy is included.

Artifacts: Extracts rich set of " next level of details " artifacts for each of the models.

Sentiment analysis: Identifies positive, negative, and neutral sentiments from speech and visual text.

C: Analyze Receipt - Get Analyze Receipt Result.

Query the status and retrieve the result of an Analyze Receipt operation.

Request URL: https://{endpoint}/formrecognizer/v2.0-preview/prebuilt/receipt/analyzeResults/{resultId}

E: POST {Endpoint}/vision/v3.2/read/analyze

Use this interface to get the result of a Read operation, employing the state-of-the-art Optical Character Recognition (OCR) algorithms optimized for text-heavy documents.

Scenario: Contoso plans to develop a document processing workflow to extract information automatically from PDFs and images of financial documents

The document processing solution must be able to process standardized financial documents that have the following characteristics:

- Contain fewer than 20 pages.

- Be formatted as PDF or JPEG files.

- Have a distinct standard for each office.

*The document processing solution must be able to extract tables and text from the financial documents.

The document processing solution must be able to extract information from receipt images.

Scenario: All planned projects must support English, French, and Portuguese.

If a bot uses multiple LUIS models and QnA Maker knowledge bases (knowledge bases), you can use the Dispatch tool to determine which LUIS model or QnA Maker knowledge base best matches the user input. The dispatch tool does this by creating a single LUIS app to route user input to the correct model.

The requirements state:

All AI solution responses must have a confidence score ≥ 70%.

If the response confidence score is < 70%, the response must be improved by human input.

Members of the Consultant-Bookkeeper group must be able to process financial documents, which includes performing manual review when the AI confidence is below threshold.

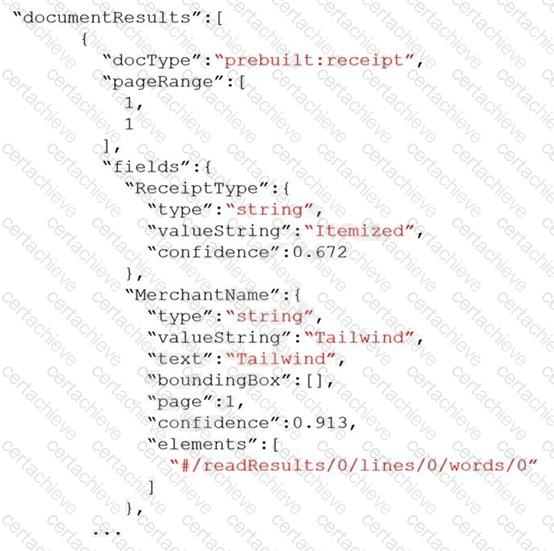

Looking at the provided JSON:

" fields " : {

" ReceiptType " : {

" type " : " string " ,

" valueString " : " Itemized " ,

" confidence " : 0.672

},

" MerchantName " : {

" type " : " string " ,

" valueString " : " Tailwind " ,

" confidence " : 0.913

}

}

ReceiptType.confidence = 0.672 → this is below 0.7.

MerchantName.confidence = 0.913 → this is above 0.7.

Therefore, the correct condition for triggering manual review is:

documentResults.fields. < field > .confidence < 0.7

Now, evaluating the options:

A. documentResults.docType == " prebuilt:receipt "

Always true for receipts, does not check confidence. Not correct.

B. documentResults.fields.*.confidence < 0.7

This is the correct general expression: trigger manual review whenever any field confidence is below 0.7.

C. documentResults.fields.ReceiptType.confidence > 0.7

This would bypass manual review when ReceiptType has high confidence. The requirement is to trigger review when confidence < 0.7, so this is the opposite.

D. documentResults.fields.MerchantName.confidence < 0.7

This only checks one field (MerchantName). In the JSON, MerchantName has confidence 0.913 ( > 0.7), so this condition would not trigger, but ReceiptType clearly needs review. Too narrow.

Correct Answer: B. documentResults.fields.*.confidence < 0.7

Microsoft References

Azure AI Document Intelligence – Confidence scores

Human-in-the-loop for Document Intelligence

The requirement is to optimize the reading experience for users with dyslexia and learning differences .

Azure AI Immersive Reader is specifically designed to make text more accessible, improving comprehension by enabling features like text-to-speech, line focus, and translation.

Translator (A) is for translating text, not accessibility.

Document Intelligence (B) is for extracting information from documents.

Azure AI Language (D) is for NLP tasks, not improving reading accessibility.

Microsoft References:

Azure AI Immersive Reader overview

You have an Azure AI Document Intelligence resource named AIDoc1 in the S0 tier .

You need to identify which files can be uploaded to Document Intelligence Studio for training a custom extraction model.

Supported formats: PDF, TIFF, JPG, PNG, BMP.

Maximum file size: 500 MB per document.

Password-protected documents: Not supported.

S0 tier limits: Same as above (50 pages per document limit also applies).

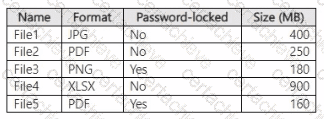

Now checking the given files:

File1 (JPG, 400 MB, No password) → Supported (under 500 MB, allowed format).

File2 (PDF, 250 MB, No password) → Supported.

File3 (PNG, 180 MB, Password-protected) → Not supported (password locked).

File4 (XLSX, 900 MB) → Not supported (format not supported, exceeds 500 MB).

File5 (PDF, 160 MB, Password-protected) → Not supported (password locked).

Correct Answer: C. File1, File2, and File4 only → Wait, check again: XLSX is not supported, so File4 is invalid. Only File1 and File2 are valid.

Correct Final Answer: A. File1, and File2 only
