The NetApp Certified Support Engineer ONTAP Specialist (NS0-593)

 = The correct action to bring the cluster online and allow Node02 to serve data is to perform a takeover with the storage failover takeover -ofnode Node01 -option force command. This command will force Node02 to take over the resources of Node01 and serve the data from both nodes. This is necessary because Node01 is not responding and cannot initiate a graceful takeover.  The other options are not correct because they will either destroy the existing cluster configuration (A and D) or reboot the node without taking over the resources of the other node (B).  References  =  1  Halt or reboot a node without initiating takeover in a two-node cluster - NetApp Documentation  2  Solved: Graceful shut down - NetApp Community

The question refers to a scenario where the shelf firmware for an NS224 shelf has not been upgraded on one of the NVMe shelf modules (NSM) after a week of installation.

The NSM is responsible for managing the communication between the drives and the I/O modules (IOM) in the shelf 1 .

The shelf firmware for the NSM is automatically updated when the NSM is inserted into the shelf or when the system is rebooted 2 .

If the automatic update does not work, the manual update process involves reseating the NSM, which means removing it from the shelf and inserting it back 3 .

Reseating the NSM triggers the firmware update and also resets the NSM’s state 3 .

The other options are not correct, because:

B.  Reseating the disk in Bay 0 will not affect the NSM firmware update, as the disk is not connected to the NSM 1 .

C.  Power cycling the shelf will disrupt the I/O operations and may cause data loss or corruption 4 .

D.  Reseating the PSU of the shelf will not affect the NSM firmware update, as the PSU is not connected to the NSM 1 .  References :

NS224 NVMe drive shelf overview - NetApp

Shelf firmware update process - NetApp

Module firmware upgrade stuck on NS224 shelf - NetApp Knowledge Base

Power cycle a disk shelf - NetApp

The question describes a scenario where the controller and client have a significant difference in their reported latency for the same datastores.

The controller’s latency is 1 ms, which is within the normal range for ONTAP-based datastores 1 .

The client’s latency is 15 ms, which is much higher than the controller’s latency and could indicate a performance issue on the client side 2 .

Therefore, the next step is to investigate the client that reports high latency and identify the possible causes, such as network congestion, misconfiguration, resource contention, or application issues 2 3 .

The other options are not relevant or appropriate for this scenario, because:

A. The cluster is not responding slowly, as the controller’s latency is low and QoS output confirms the same.

C.  The cluster interconnects are not likely to be the cause of the latency difference, as they are used for communication between nodes within the cluster, not between the controller and the client 4 .

D.  A sync core is a diagnostic tool that captures the state of the system at a given point in time, and is not a troubleshooting step for performance issues 5 .  References :

ONTAP 9 Performance - Resolution Guide - NetApp Knowledge Base

Performance troubleshooting - NetApp

How to troubleshoot performance issues in Data ONTAP 8 7-mode

Cluster interconnect network - NetApp

How to generate a sync core on a node - NetApp

 The iSCSI service must be enabled on the network interfaces that are used for iSCSI communication. If the iSCSI service is disabled on an interface, the incoming connection requests from the iSCSI initiator will be discarded and the event log will show the message “ISCSI: network interface identifier disabled for use; incoming connection discarded”. To enable the iSCSI service on an interface, you can use the System Manager or the CLI command  network interface modify -vserver vserver_name -lif lif_name -data-protocol iscsi .  References  =  Configure the iSCSI protocol with System Manager , [ONTAP 9 Network Management Guide]

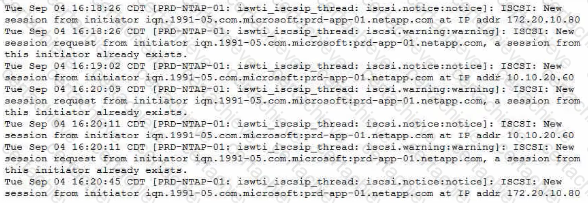

IQN stands for iSCSI Qualified Name, which is a unique identifier for an iSCSI initiator or target 1 .

ONTAP uses IQN to authenticate and authorize iSCSI sessions 2 .

If two hosts have the same IQN, they will cause a conflict and ONTAP will reject the new session request from the second host 3 .

This will result in the host losing the connection to the iSCSI target and then reporting that the session was reestablished, as shown in the exhibit.

To avoid this problem, each host should have a unique IQN.  References :

iSCSI Qualified Name (IQN) - NetApp

iSCSI authentication and authorization - NetApp

Troubleshooting iSCSI issues - NetApp

[Configuring iSCSI initiators - NetApp]

FabricPool is an ONTAP feature that enables tiering of cold data from SSD aggregates to low-cost object storage, either on-premises or in the cloud 1 .  FabricPool requires a license to be installed on the cluster, and the license type depends on the cloud tier being used 2 .  In this scenario, the cloud tier is another ONTAP cluster (FAS8300), which is not supported by the new Cloud Tiering license that is used for most FabricPool configurations 3 .  Therefore, the old FabricPool license that is retained for dark sites or MetroCluster systems using FabricPool Mirror must be used 3 .  The FabricPool license defines the amount of capacity that can be tiered to the cloud tier, and it can be increased by add-on orders 4 .  References :

1 : FabricPool overview 5

2 : FabricPool requirements 6

3 : Install a FabricPool license 2

4 : ONTAP FabricPool (FP) Licensing Overview 1

 FlexGroup requires CIFS shares to use the Continuously Available Feature, which enables transparent failover and recovery of SMB sessions in the event of a node failure or takeover. This feature is only supported by Windows 8 and later clients, and some printers and scanners may not support it either. Therefore, these older Windows XP clients and some printers and scanners are unable to access a FlexGroup over CIFS.  References  =  Supported and unsupported configurations for FlexGroup volumes ,  NetApp ONTAP FlexGroup volumes — Best practices and implementation guide  (page 24)

 According to the NetApp Knowledge Base, packet traces are stored in the /etc/log/packet_traces directory of the node hosting the LIF. This applies to ONTAP 9.10 and above systems. For ONTAP 9.2 to 9.9 systems, the procedure to capture packet traces is similar, but the command syntax is slightly different. For ONTAP pre-9.2 systems, the procedure is different and requires the use of the tcpdump command.  References  =  How to capture packet traces on ONTAP 9.10+ systems ,  How to capture packet traces (tcpdump) on ONTAP 9.2 to 9.9 systems ,  How to capture packet traces in ONTAP pre-9.2

A B2B type consistency point (CP) occurs when a new CP is triggered before the previous CP is completed, due to the second memory buffer reaching a watermark. This can cause write latency to increase as user write operations are not replied until a write buffer frees up. However, this only affects the aggregate that is undergoing the B2B processing, and not the other aggregates on the same node. Therefore, the performance of the client operations on the data aggregates will not be affected by B2B processing on the root aggregate.  References  =  What is the Back-to-Back (B2B) Consistency Point Scenario? ,  What are the different Consistency Point types and how are they measured in ONTAP 9? ,  What are the different Consistency Point types and how are they measured?
