The Dell Unity Deploy 2023 Exam (D-UN-DY-23)

A feature that can be configured for a Dell Unity XT file system NFS share is the Host Access Level. This feature allows the user to specify the access permissions for each host or host group that is allowed to access the NFS share. The access permissions can be set to Read/Write, Read Only, or No Access. The Host Access Level feature can be used to control the security and performance of the NFS share. Access-Based Enumeration, Protocol Encryption, and Distributed File System are features that can be configured for a Dell Unity XT file system SMB share, not NFS share.

The Dell UnityVSA is a software-defined storage solution that runs the Dell Unity operating environment on a VMware ESXi server. The Dell UnityVSA provides the same features and functions as the Dell Unity hardware platform, such as block and file storage, snapshots, thin clones, data reduction, replication, and encryption. Some of the features of the Dell UnityVSA are:

iSCSI Connectivity: The Dell UnityVSA supports iSCSI connectivity for block storage access. The iSCSI protocol enables hosts to communicate with the Dell UnityVSA over an IP network and access LUNs as SCSI devices. The Dell UnityVSA can support up to 64 iSCSI interfaces and up to 256 iSCSI sessions per interface.

Asynchronous Replication: The Dell UnityVSA supports asynchronous replication for block and file storage. Asynchronous replication is a feature that copies data from a source storage resource to a destination storage resource over a network at scheduled intervals. Asynchronous replication can be used for disaster recovery, data migration, or backup purposes. The Dell UnityVSA can support up to 256 replication sessions per system.

A drive partnership group is a colle ction of drives of the same drive type that have been combined into a hidden dynamic pool object. Each drive within a dynamic pool can only be part of a single drive partnership group, and a drive will never change the drive partnership group. The maximum size of a drive partnership group is 32 drives, regardless of the drive type or size. When expanding a dynamic pool, the system will automatically create new drive partnership groups as needed, and distribute the drives evenly across the groups.  The number of drive partnership groups in a dynamic pool is equal to the number of drives divided by 32, rounded up to the nearest integer.  References : Dell Unity: Dynamic Pool s 2 , page 5.

The Unity 380/380F system supports two types of I/O modules: 12 Gb/s SAS back-end and 10 GbE Base-T front-end. The 12 Gb/s SAS back-end module provides connectivity to the disk drives and expansion enclosures, while the 10 GbE Base-T front-end module provides network connectivity to the hosts and clients. The Unity 380/380F system has four I/O module slots, two for each SP. The 12 Gb/s SAS back-end module must be installed in slot 0 of each SP, and the 10 GbE Base-T front-end module can be installed in slot 1 of each SP. Therefore, the correct answer is C. 12 Gb/s SAS 10 GbE Base-T.  References :

Dell EMC Unity: Hardware Information Guide

Dell EMC Unity: Installation Guide

The preferred FC Port for synchronous replication for a Dell Unity XT 380 system is Fibre Channel Port 4 of SPA and SPB. This port is dedicated for synchronous replication traffic and has the highest priority and bandwidth allocation. Synchronous replication is a method of replicating data between two Dell Unity systems with zero recovery point objective (RPO). It requires a low-latency and high-bandwidth network connection between the source and destination systems.

When deploying Dell UnityVSA OVA, the recommended disk format is Thick Provision Eager Zeroed, which allocates and zeroes out all the space for the virtual disks at the time of creation. This ensures better performance and avoids potential issues with thin provisioning on the underlying storage. Thin Provision and Thick Provision Lazy Zeroed are not recommended, as they may cause performance degradation and unexpected out-of-space errors.

FAST VP (Fully Automated Storage Tiering for Virtual Pools) is a feature that automatically moves data within a storage pool based on the performance requirements and access patterns of the data. FAST VP data relocation runs in the background according to a user-defined schedule and rate. The schedule determines when the data relocation starts and ends, and the rate determines how much system resources are used for the data relocation. Users can set the Fast VP data relocation rate to High, Medium, Low, or None. High means that the data relocation has the highest priority and uses the most system resources, while None means that the data relocation is disabled. Fast VP data relocation does not run at all times, but only during the scheduled window. Fast VP optimizes data placement by moving 256 MB slices between disk tiers, not 1 GB slices. Users cannot enable or disable FAST VP at the LUN level, but only at the storage pool level.

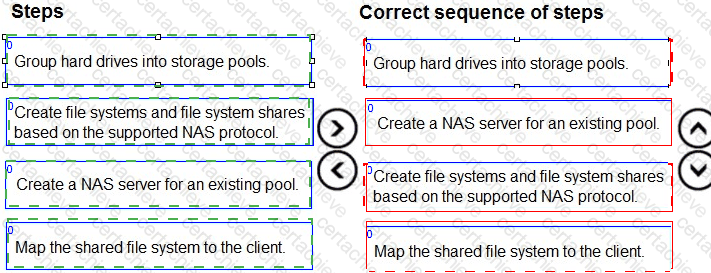

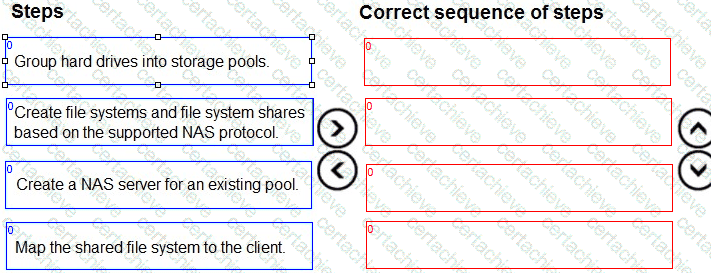

The correct sequence of steps to provision storage for SMB NAS clients is:

Grou p hard drives into storage pools. This allows you to create a pool of storage resources that can be allocated to different types of storage objects, such as NAS servers, file systems, and LUNs. You can create different pools based on the performance and capacity requirements of your applications 1

Create a NAS server for an existing pool. A NAS server is a logical entity that provides file-level access to clients using SMB, NFS, or FTP/SFTP protocols. You need to create a NAS server before you can create file systems and shares. You can specify the pool, network settings, domain membership, and other properties for the NAS server 2

Create file systems and file system shares based on the supported NAS protocol. A file system is a logical container that stores files and folders on a NAS server. A file system share is a logical representation of a file system that can be accessed by clients using a specific p rotocol. For SMB NAS clients, you need to create SMB file system shares that support the SMB protocol. You can configure the share name, permissions, ac cess policies, and other settings for the SMB share 3

Map the shared file system to the client. This allows the client to access the files and folders on the SMB share using a drive letter or a UNC path. You can use the Windows Explorer or the net use command to map the shared file system to the client 4
