The Fortinet NSE 6 - Network Security 7.6 Support Engineer (FCSS_NST_SE-7.6)

The administrator is running a packet sniffer with the filter ' udp port 500 or udp port 4500 or esp ' . The result is " no output, " even though the VPN is attempting to establish (failing).

A. The VPN is configured to use IKE over TCP:

Standard IPsec IKE negotiation uses UDP port 500 (IKE) and UDP port 4500 (NAT-T).

However, if IKEv2 over TCP (RFC 8229) or Fortinet ' s proprietary IKE over TCP is configured (often used to bypass firewalls that block UDP), the traffic will use TCP (often port 4500 or 443).

The sniffer filter explicitly looks for udp or esp (IP Protocol 50).

If the traffic is encapsulated in TCP, it matches tcp protocol, not udp or esp (raw ESP). Therefore, the sniffer sees zero packets matching the filter.

Why other options are incorrect:

B: esp is a valid argument for diagnose sniffer packet. It is equivalent to filtering for IP protocol 50.

C: If the ISP were blocking traffic, the sniffer (running on the local FortiGate) would still see the outbound packets generated by the FortiGate trying to initiate the connection. " No output " implies the local device isn ' t even generating packets matching that filter.

D: Mismatched IKE versions would still generate IKE negotiation packets (proposals/errors) that would be captured by the sniffer.

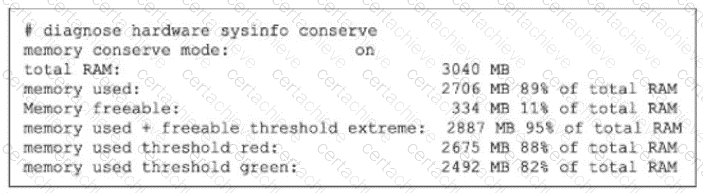

The exhibit shows:

memory conserve mode: on

memory used: 2706 MB 89% of total RAM

memory used threshold red: 2675 MB 88% of total RAM

memory used + freeable threshold extreme: 2887 MB 95% of total RAM

The study guide states that the default thresholds are:

Extreme = 95%

Red = 88%

Green = 82%

So this FortiGate is in conserve mode because memory usage is 89% , which is above the red threshold (88%) , but it has not yet reached the extreme threshold (95%) .

The study guide then explains exactly what happens during conserve mode:

“For traffic that requires proxy-based inspection (and if memory usage has not exceeded the extreme threshold):

config system global

set av-failopen [off | pass | one-shot]

pass (default): All new sessions pass without inspection”

It also says:

“The av-failopen setting also applies to flow-based antivirus inspection.”

And the same page adds:

“If memory usage exceeds the extreme threshold, all new sessions that require inspection (flow-based or proxy-based) are blocked.”

Therefore, with default settings and with memory usage below the extreme threshold , FortiGate is allowing new sessions that require inspection, but bypassing inspection . That matches C .

Why the other options are wrong:

A is wrong because the default behavior is not to block proxy-based inspected sessions; the default is pass , meaning they pass without inspection

B is wrong because if memory rises another 6% , it reaches 95% , which is the extreme threshold . At that point, the study guide says all new sessions that require inspection are blocked

D is wrong because FortiGate blocks all new inspected sessions only when memory usage exceeds the extreme threshold , and the exhibit shows it is currently at 89% , not 95%

The debug flow message iprope_in_check() check failed, drop specifically indicates a failure in the Local-In Policy check. The " iprope " (IP ROouting Policy Enforcement) engine handles policy lookups. The _in_check suffix confirms that the decision is regarding traffic destined to the FortiGate itself (Local-In traffic), rather than traffic passing through it.

D. The packet was dropped because the requested service is not enabled on FortiGate:

This is the most common cause. When a packet arrives destined for the FortiGate ' s interface IP (e.g., an HTTPS or SSH request), the kernel checks if that specific service is enabled in the interface settings (set allowaccess). If the service is not enabled (e.g., trying to Ping an interface where PING access is disabled), the iprope_in_check function fails and drops the packet immediately.

C. The packet was dropped because the trusted host list is misconfigured:

Even if the service (e.g., HTTPS) is enabled on the interface, the FortiGate checks the Administrator settings. If Trusted Hosts are configured, the source IP of the incoming packet is compared against the allowed list. If the IP is not on the list, the Local-In policy check (iprope_in_check) fails, and the packet is dropped to secure the management plane.

Why other options are incorrect:

A: If traffic is dropped by a standard Firewall Policy (traffic passing through the device from one interface to another), the debug message will typically state denied by policy x or no matching policy. It would generally be a forward check (iprope_fwd_check or similar), not an _in_check.

B: If there is no route to the source, the error is a Reverse Path Forwarding (RPF) failure. The debug flow logs this explicitly as reverse path check fail, drop.

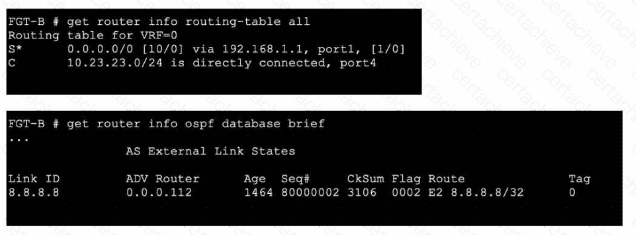

To understand why Type 5 LSAs (AS External LSAs) are missing from the Link-State Database (LSDB), we must look at how OSPF generates and propagates them:

A. There is no autonomous system border router (ASBR) in the network:

Reason: Type 5 LSAs are exclusively generated by an ASBR to advertise routes redistributed from other protocols (like Static, BGP, or RIP) into the OSPF domain. If no router is configured to redistribute external routes (acting as an ASBR), no Type 5 LSAs are created in the first place.

C. The local router is located in a stub area:

Reason: By definition, a Stub Area (and a Totally Stubby Area) prevents Type 5 LSAs from entering. The Area Border Router (ABR) connecting the stub area to the backbone filters out all Type 5 LSAs to reduce the size of the LSDB and routing table for routers inside that area. Instead, a default route is usually injected.

Why other options are incorrect:

B: While database filtering exists, standard prefix-list filtering typically affects the routing table (RIB) generation, not the underlying LSDB propagation of Type 5 LSAs, or it is less common than the architectural reasons (Stub/No ASBR).

D: IP Protocol 89 is the transport for OSPF itself. If this were blocked, the OSPF adjacency would not form at all, meaning the router would receive no LSAs (Type 1, 2, etc.), not specifically just Type 5.

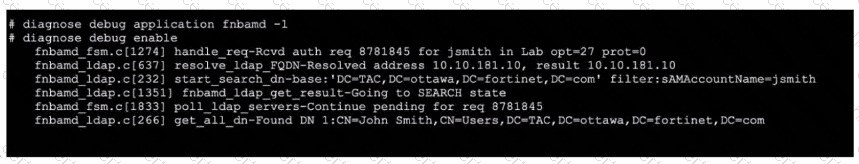

The exhibit shows these key lines:

handle_req-Rcvd auth req ... for jsmith in Lab

start_search_dn-base: ' DC=TAC,DC=ottawa,DC=fortinet,DC=com ' filter:sAMAccountName=jsmith

get_all_dn-Found DN 1:CN=John Smith,CN=Users,DC=TAC,DC=ottawa,DC=fortinet,DC=com

The study guide explicitly shows the same LDAP real-time debug pattern and says the request line includes the LDAP server object name:

handle_req-Rcvd auth req ... for jsmith in Lab ...

That supports A : Lab is the configured LDAP server name being used for this authentication request.

For the LDAP flow stage, the study guide states:

“An fnbamd_ldap_build_dn_search_req-base message indicates that FortiGate is performing step two: searching for the user in the LDAP tree.” It also says that if the LDAP server finds the user, the output shows the user’s full DN.

That matches the exhibit’s start_search_dn-base ... filter:sAMAccountName=jsmith and Found DN ... CN=John Smith... lines, so D is correct.

Why the other options are wrong:

B is wrong because the exhibit shows FortiOS has found the user DN CN=John Smith,..., but that does not mean the user is already authenticating with that DN in this step. The study guide says this DN is discovered in step 2 , and only in step 3 does FortiGate bind using the user DN.

C is wrong because the exhibit is showing step 2 (Search Request) , not step 3 (Bind Request) . The study guide separates these steps clearly and shows step 3 with fnbamd_ldap_build_userbind_req-Trying DN ... and __ldap_build_bind_req-Binding to ' CN=John Smith,... '

The correct answer is B .

The study guide explicitly states: “IKE version 2 does not interoperate with IKE version 1, but they share enough of the header format that both versions can unambiguously operate over the same UDP port.”

That directly proves B .

Why the other options are wrong:

A is wrong because the study guide shows authentication methods as Asymmetric for IKEv2 and Symmetric for IKEv1

C is wrong because the study guide does not say they use the same TCP port; instead, it specifically says they can operate over the same UDP port

D is wrong because the study guide states: “IKEv2 does not use the concept of phase 1 or phase 2” , even though FortiOS CLI/GUI still uses those terms for configuration purposes

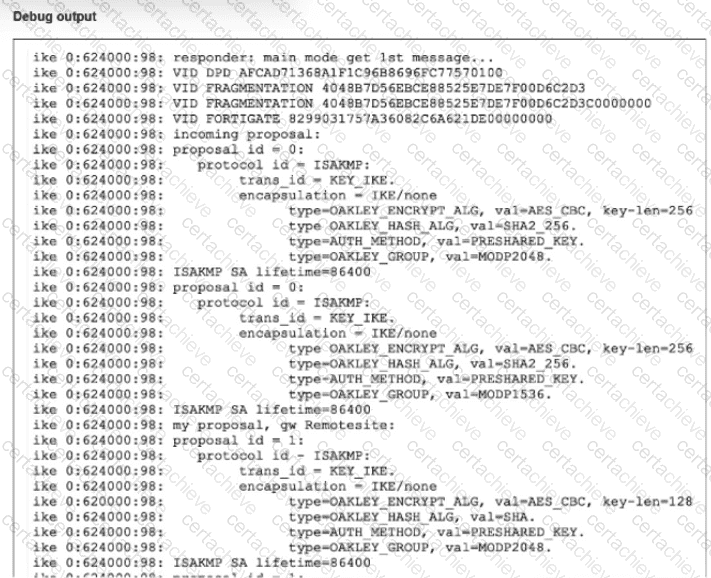

To determine the correct conclusions, we analyze the specific lines in the IKE real-time debug output provided in the exhibit:

Analysis for Option A (The remote peer is the initiating peer):

Evidence: The very first line of the debug output reads: ike 0:624000:98: responder: main mode get 1st message...

The keyword responder indicates that this local FortiGate is receiving the connection request. Consequently, the remote peer must be the initiator sending the request. The phrase " get 1st message " confirms the local unit is receiving the initial packet of the negotiation sequence.

Conclusion: This statement is True.

Analysis for Option B (This is a phase 1 negotiation):

Evidence: The same line mentions main mode.

In IPsec VPNs, Main Mode and Aggressive Mode are exclusively used for Phase 1 (IKE SA) negotiations. Phase 2 (Child SA) negotiations use Quick Mode. The presence of " main mode " definitively identifies this as a Phase 1 exchange.

Conclusion: This statement is True.

Analysis for Option C (There is a Diffie-Hellman group mismatch):

Evidence:

Incoming proposal (Remote): Lists type=OAKLEY_GROUP, val=MODP2048 (Group 14) in the first proposal proposal.

My proposal (Local): Lists type=OAKLEY_GROUP, val=MODP2048 (Group 14).

Since both the remote peer and the local gateway support and are proposing MODP2048 (Group 14), there is no Diffie-Hellman group mismatch. The actual mismatch visible in the logs is between the Encryption/Hash algorithms (Remote proposes AES-256/SHA2-256, while Local proposes AES-128/SHA), but the DH groups match.

Conclusion: This statement is False.

Analysis for Option D (This is a phase 2 negotiation):

As established in the analysis for Option B, " Main Mode " is a Phase 1 protocol. If this were Phase 2, the debug would show " Quick Mode " .

Conclusion: This statement is False.

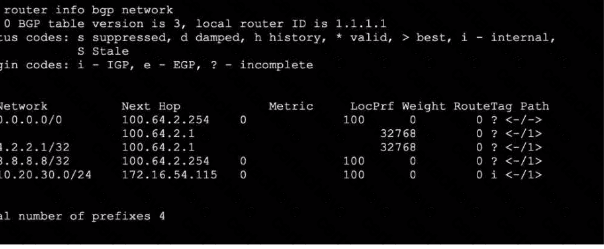

For Option A:In Fortinet BGP (and standard BGP), when a prefix is displayed with an " i " (lowercase i) in the Path column, it represents an internal prefix that originated from the local router, typically configured via the BGP " network " command. In the exhibit, the prefix 10.20.30.0/24 is listed with a Path value of i, indicating it was injected into BGP by the local router using the network statement, not via redistribution from another routing protocol. The same logic applies to i as documented: " Origin code ' i ' means the route was injected via the network command. "

For Option D:The get router info bgp network output is a summary table displaying both local and received BGP routes. It lists all known routes to the BGP process, whether received from peers or originated locally. The exhibit shows all BGP prefixes known to the local router, matching the official admin guide’s description of this command’s output.

Explanation for B and C:

The phrase “legacy route advertisement” is not formalized in BGP documentation or Fortinet’s admin guide; the output uses standard BGP mechanics.

If a route was redistributed into BGP from another routing protocol, the Path field would display a " ? " (question mark) for incomplete (redistributed) origin. Here the /24 route has " i " so it is NOT a redistribution.

To solve this high CPU usage scenario involving the ipsengine, we must understand the specific functions of the diagnose test application ipsmonitor commands shown in the troubleshooting steps.

Analyze the Situation:

Exhibit: The diagnose sys top output shows the ipsengine process is in a run state (R) consuming 99% CPU.

Previous Action: The administrator already ran diagnose test application ipsmonitor 5.

Result: The CPU usage did not drop.

Understand the Commands:

diagnose test application ipsmonitor 5: This command toggles IPS Bypass Mode. When enabled, the IPS engine lets traffic pass through without inspection.

Implication: If the CPU was high due to traffic volume, enabling bypass would drop the CPU load immediately.

Failure: Since the CPU remained at 99% after bypass, the ipsengine process is likely frozen, stuck, or in an internal infinite loop unrelated to the current traffic flow. The process itself is the problem, not the traffic volume.

Evaluate the Solution (Option B):

diagnose test application ipsmonitor 2: This command toggles the IPS engine ' s Enable/Disable status.

Because the engine is stuck (bypass failed to relieve pressure), the " Immediate action " required is to stop or restart the process entirely.

Running option 2 effectively disables/kills the stuck IPS engine instance, which will immediately drop the CPU usage to near zero. (It can then be toggled again to restart it).

Why other options are incorrect:

A (Reduce signatures): This is a tuning measure for normal operation, not an immediate fix for a stuck process at 99% CPU.

C (Disable IPS on policies): This is a configuration change that takes time and requires a commit; it is not the most immediate diagnostic tool available.

D (Bypass all IPS engines): This describes the action of command 5 (Bypass), which the prompt explicitly states was already performed and failed.
