The Designing and Implementing Enterprise Network Assurance(300-445 ENNA) (300-445)

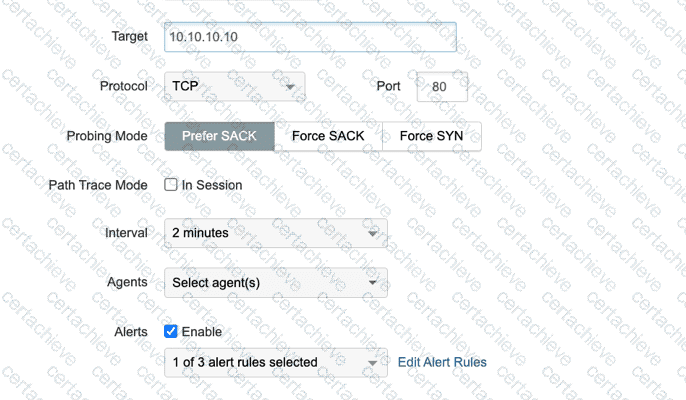

As shown in Exhibit 4.1-1 (image_6e19fb.png), the alert rule is configured for the BGP layer with the name "AS origin AS 1234". The critical logic is defined in the Alert Conditions section, which specifies: BGP Origin meets all of: ASN not in 1234.

This specific configuration is the standard method used in ThousandEyes to detect BGP hijacking (Option C). BGP hijacking occurs when an unauthorized Autonomous System (AS) announces a network prefix that it does not own, effectively stealing the traffic meant for the legitimate owner. By setting an alert that triggers when a monitored prefix is seen originating from an Autonomous System Number (ASN) that is not the expected authorized ASN (in this case, AS 1234), ThousandEyes provides immediate notification of a routing takeover.

Identifying this via BGP Origin alerts is superior to simple connectivity checks because it catches the issue at the routing control plane.

DNS Issues (Options B and D): These involve the translation of names to IPs and would be detected via DNS-specific tests rather than BGP Origin checks.

Route Poisoning (Option A): This is a generic term often referring to the manipulation of distance-vector protocol metrics to make a route unreachable; while related to routing, BGP Origin checks are the specific tool for detecting external prefix hijacks.

By monitoring the ASN origin, network engineers can quickly distinguish between a local ISP outage and a global security event where their traffic is being misdirected to an illegitimate network.

In the context of Designing and Implementing Enterprise Network Assurance (300-445 ENNA) , measuring the "lived experience" of an end-user requires data collection from the actual device being used to access the services. Unlike server-side or infrastructure-side monitoring, user experience (UX) monitoring must account for local variables like Wi-Fi signal quality, CPU/memory usage, and browser-level pe 21 rformance.

The Endpoint Agent (Option D) is the correct choice for this architecture. It is a lightweight software service installed directly on Windows or macOS workstations, as well as RoomOS devices. The Endpoint Agent provides a dual-monitoring approach: Real User Monitoring (RUM) and Scheduled Synthetic Tests . 24 RUM captures actual browser sessions to SaaS (e.g., Salesforce, Microsoft 365) or internal apps, providing a "Experience Score" and a detailed waterfall view of page load components. 25 Simultaneously, the agent can run background synthetic network tests to measure latency and path visualization from the user's specific location, whether they are in a branch office, at home on a VPN, or in a coffee shop.

Comparing other agents:

Enterprise Agents (Option B) can simulate a user at a branch office, but they cannot provide insight into the specific health of an individual's laptop or their unique Wi-Fi environment.

Cloud Agents (Option C) are entirely outside the user's network and cannot measure the performance of internal web applications or the "last mile" connectivity of the employee.

Synthetic Agent (Option A) remains a distractor term.

By deploying Endpoint Agents , the architect ensures they have granular, contextual data that correlates application performance directly with the user’s device and local network environment.

Detailed Explanation:

In the IT Operations Dashboard, performance metrics are displayed per agent to facilitate granular troubleshooting. By reviewing the latest metrics table, the Mexico City Mexico (TelMex) agent displays a Connect time of 0.51 ms, which is significantly lower (and therefore "better") than the corresponding time for the San Jose CA agent. Connect time measures the duration for the TCP three-way handshake; a lower value indicates faster network-layer establishment.

Establishing an accurate baseline is a cornerstone of the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) methodology. A baseline must represent the "typical" behavior of the network across its standard operating cycle to be useful for anomaly detection and capacity planning. When monitoring interface utilization on a critical link, it is vital to capture both peak and off-peak traffic patterns (Option C).

Most enterprise networks exhibit cyclical traffic patterns, often referred to as "diurnal" cycles, where utilization spikes during business hours (peak) and drops significantly at night or on weekends (off-peak). If an engineer only collects data during the lowest volume period (Option A), the baseline will be unrealistically low, leading to "false positive" alerts when normal business traffic returns. Conversely, only capturing peak data might hide background synchronization tasks or backup windows that occur during off-hours.

By selecting a representative time period—typically one full week or a month—the engineer ensures the baseline accounts for variations such as Monday morning "logon storms," mid-week steady states, and weekend maintenance. This comprehensive view allows the assurance platform (such as Cisco Catalyst Center or ThousandEyes ) to calculate a standard deviation and establish dynamic thresholds. If utilization deviates from these historically representative norms, the system can trigger an alert based on a true anomaly rather than a predictable daily surge. Aligning with a financial year (Option B) is irrelevant to technical performance, and limiting the data (Option D) compromises the baseline's statistical validity.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, isolating performance issues on end-user machines requires a combination of application-layer experience data and local system telemetry. When an architect suspects that local hardware constraints, such as high CPU usage, are degrading the digital experience, the Endpoint Agent is the required vantage point.

The correct combination is Real User Tests > Endpoint, CPU utilization ≥ % (Option C). This alert configuration is effective for several reasons:

Targeted Visibility: It directly monitors the user's device (Endpoint) where the hardware bottleneck is suspected to reside.

Real-Time Context: By utilizing Real User Tests (RUM) , the agent gathers performance data during actual user activity (e.g., browsing the web application). This ensures that the CPU spikes are correlated with active application usage, providing a representative view of the impact on experience.

Threshold Alerting: The condition monitors for CPU utilization exceeding a defined percentage threshold (≥ %). This allows IT teams to be notified only when the CPU load reaches problematic levels that are known to cause application sluggishness or browser "freezing".

Alternative options are less effective for this specific troubleshooting goal:

Option A: Monitors network loss, which would not identify a local CPU bottleneck.

Option B: Monitors path length (hops), which is a routing metric irrelevant to local hardware performance.

Option D: Monitors memory load during scheduled tests. While memory is a factor, the specific suspicion in this scenario is CPU utilization, and scheduled tests do not always capture the same load impact as a real user interacting with the browser.

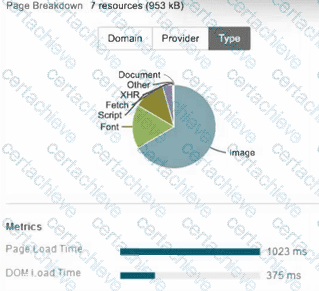

In the context of Designing and Implementing Enterprise Network Assurance (300-445 ENNA) , analyzing page-load metrics within Cisco ThousandEyes requires identifying the primary bottlenecks that contribute to the Total Page Load Time . The provided screenshot displays a "Page Breakdown" of 7 resources totaling 953 kB. A critical observation of the pie chart reveals that Images (the teal-colored segment) constitute the vast majority of the page's payload and resource count.

When the goal is to reduce the page-load time from 1023 ms to below 500 ms , the engineer must target the heaviest components. Lazy loading is a design pattern that defers the initialization of non-critical resources at page load time. Instead of loading all images simultaneously when the user first navigates to the URL, lazy loading ensures that images are only downloaded as they are about to enter the viewport. This significantly reduces the initial DOM load time and the total Page Load Time because the browser does not have to wait for large image files to be fully retrieved before declaring the page "loaded."

Alternative options are less effective in this specific scenario based on the data:

AJAX (XHR/Fetch): The chart shows that XHR and Fetch resources represent a negligible sliver of the total weight; optimizing them would yield minimal gains.

Moving IMG elements: While moving scripts to the bottom can help with rendering, moving image elements to the bottom of the body does not stop the browser from initiating the download requests immediately, thus failing to significantly reduce the total load time.

CDN for Fonts: The "Font" category is also a small fraction of the total 953 kB. While a CDN is a best practice for latency, it does not address the primary "weight" issue caused by the images.

Therefore, implementing lazy loading (Option C) is the most impactful recommendation. It directly addresses the largest resource consumer (Images) identified in the ThousandEyes Page Breakdown, allowing the engineer to reach the sub-500 ms performance target.

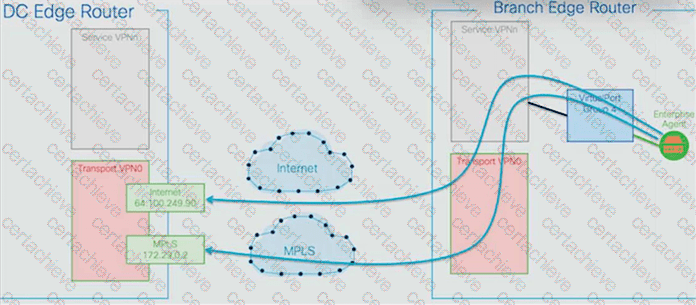

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, understanding the visibility gap between the SD-WAN overlay and the transport underlay is a core competency. The provided exhibit illustrates a ThousandEyes Enterprise Agent deployed on a Branch Edge Router performing tests across two distinct paths: Internet (reaching a destination at 64.100.249.90) and MPLS (reaching a destination at 172.29.0.2).

According to the ENNA architecture guidelines, ThousandEyes is primarily utilized to provide hop-by-hop visibility into the underlay network. While SD-WAN controllers like vManage provide native monitoring for the overlay—the logical IPsec tunnels (Option B) that form the SD-WAN fabric—they often lack granular visibility into the physical service provider paths (the underlay) that carry those tunnels. The exhibit specifically highlights the agent probing the transport networks (Transport VPN0) directly, bypassing the overlay tunnels to measure the raw performance of the ISP and MPLS circuits.

By monitoring the underlay (Option A), the engineer can identify if high latency or packet loss is caused by a specific hop within the service provider's infrastructure or at a peering point. This "underlay visibility" is critical for troubleshooting SD-WAN performance issues where the overlay may report a tunnel down, but the root cause lies in a BGP routing change or physical fiber cut in the provider network. ThousandEyes Enterprise Agents, natively integrated into Catalyst 8000 and ISR 4000 platforms, allow for this persistent underlay monitoring without additional hardware.

Overlay (Option C): While ThousandEyes can monitor overlay performance, the exhibit's focus on the raw IP addresses (Internet and MPLS) in the transport VPN indicates an underlay test.

IPsec/GRE Tunnels (Options B & D): These represent the transport mechanisms of the overlay. ThousandEyes probes the path under these tunnels to ensure the transport health is sufficient to support the fabric.

The architecture for Designing and Implementing Enterprise Network Assurance (300-445 ENNA) specifies that ThousandEyes WAN Insights relies on deep integration with the Cisco SD-WAN management stack. To generate its predictive path recommendations, the platform must ingest specific telemetry data that reflects both the network's behavior and the applications traversing it.

The first essential data source is historical network performance metrics collected by vAnalytics (Option B). Before WAN Insights can be activated, vAnalytics must be enabled to collect and enrich raw network telemetry from the edge routers. 34 This data includes granular metrics for every SD-WAN tunnel, such as packet loss, latency, and jitter. 35 WAN Insights analyzes these historical trends to forecast future path quality and determine which transport circuits are most likely to meet application SLAs over a long-term period.

The second essential data source is application traffic flow data (Option D). WAN Insights must understand which applications are currently active in the fabric to prioritize recommendations for "business-critical" services like Office 365, Webex, or custom internal apps. 38 This information is ingested as flow records from the SD-WAN data plane and categorized based on the Application Lists defined in Cisco Catalyst SD-WAN Manager (vManage) .

Options A and E are configuration or logging data that, while useful for general management, are not the raw telemetry inputs used by the WAN Insights predictive engine. Option C is incorrect because WAN Insights explicitly uses infrastructure telemetry rather than ThousandEyes agent-based synthetic data for its SD-WAN fabric calculations. By combining vAnalytics performance metrics and application flow data , WAN Insights can provide the "Predictive Path Recommendatio 41 ns" that are a hallmark of modern network assurance.

The Designing and Implementing Enterprise Network Assurance (300-445 ENNA) framework highlights the integration between ThousandEyes and Cisco Meraki as a solution for "cross-domain assurance". 5 The primary purpose of this integration is to monitor external applications and services from SD-WAN sites (Option B).

In a distributed Meraki environment, IT teams often struggle with visibility into the "Internet as a WAN," where performance issues may occur outside the local network perimeter. By embedding ThousandEyes Enterprise Agents natively within Meraki MX appliances , organizations can bridge the gap between internal LAN metrics and external service health. 6 This integration allows for proactive monitoring of SaaS platforms (like Microsoft 365, Salesforce, and Webex) and other public-facing dependencies using synthetic probes. It complements the native Meraki Insight (MI) , which provides passive monitoring of real user traffic, by adding active path visualization and hop-by-hop analysis across the Internet.

Key advantages of this integration include:

One-Click Activation: Enabling the ThousandEyes agent directly from the Meraki Dashboard without additional hardware. 7

Pre-configured Templates: Using built-in test templates for common SaaS applications to accelerate troubleshooting. 8

Isolation of Fault Domains: Quickly determining if a user's lag is caused by a local Wi-Fi issue (via Meraki wireless metrics) or an ISP routing problem (via ThousandEyes path data). 9

While ThousandEyes does provide visibility for VPN and security, Options A, C, and D are not the primary focus of the specific Meraki-ThousandEyes integration architecture, which is centered on extending application performance assurance to distributed branch locations.
