The Securing Networks with Cisco Firepower (300-710 SNCF) (300-710)

" In routed firewall mode, broadcast and multicast traffic is blocked even if you allow it in an access rule... " " The bridge group does not pass CDP packets packets... " https://www.cisco.com/c/en/us/td/docs/security/asa/asa913/configuration/general/asa-913-general-config/intro-fw.html

Passing Traffic Not Allowed in Routed Mode

In routed mode, some types of traffic cannot pass through the ASA even if you allow it in an access rule. The bridge group, however, can allow almost any traffic through using either an access rule (for IP traffic) or an EtherType rule (for non-IP traffic):

IP traffic—In routed firewall mode, broadcast and " multicast traffic is blocked even if you allow it in an access rule, " including unsupported dynamic routing protocols and DHCP (unless you configure DHCP relay). Within a bridge group, you can allow this traffic with an access rule (using an extended ACL).

Non-IP traffic—AppleTalk, IPX, BPDUs, and MPLS, for example, can be configured to go through using an EtherType rule.

Note

" The bridge group does not pass CDP packets packets, or any packets that do not have a valid EtherType greater than or equal to 0x600. An exception is made for BPDUs and IS-IS, which are supported. "

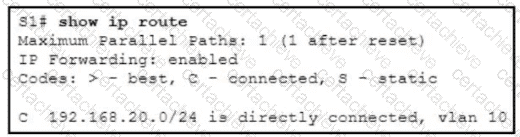

A static-route command follows the structure ip route destination-network subnet-mask next-hop administrative-distance. The required destination is 192.168.10.0/24, which corresponds to subnet mask 255.255.255.0. The next-hop address must be 192.168.20.1, and the routing-table exhibit confirms that the 192.168.20.0/24 network is directly connected through VLAN 10. The final value must be 2 because the question explicitly requires an administrative distance of 2. Option A uses the correct destination and next hop but sets the distance to 1. Options B and D incorrectly reverse the destination and next-hop networks. Consequently, only option C contains all four required elements and installs the route through the connected 192.168.20.0/24 network with the specified preference.

================

When connectivity issues are detected between Cisco Secure Firewall Management Center (FMC) and Cisco Secure Firewall Threat Defense (FTD) devices, and initial troubleshooting indicates that heartbeats and events are not being received, the engineer can run the following commands to resolve the issue by re-establishing secure channels and checking process statuses:

manage_procs.pl:This script is used to manage and restart processes on the FTD device. Running this script can help restart any malfunctioning processes and re-establish connectivity between the FMC and FTD.

sudo stats_unified.pl:This command provides detailed statistics and status of the unified system processes. It helps in diagnosing and resolving issues related to the secure channel and event reporting.

Steps:

Access the FTD CLI.

Run the commandmanage_procs.plto restart processes.

Run the commandsudo stats_unified.plto gather detailed process statistics and verify the status.

These commands help resolve connectivity issues by ensuring that all necessary processes are running correctly and secure channels are re-established.

The content keyword is used to specify a string or pattern to search for in the payload or stream of a packet. The string must be enclosed in quotation marks and can use modifiers such as nocase, depth, offset, and so on. The string can also use hexadecimal notation by using a pipe symbol (|) before and after the hexadecimal characters. For example, content: " |45 5* 26 27 4 0A| " will match any payload or stream that contains the hexadecimal bytes 45 5 26 27 4 0A followed by any number of bytes2

To determine if a host is infected with malware, the network administrator can look at the Indications of Compromise (IOC) feature in Cisco FMC. The IOC feature analyzes network and endpoint data collected by Firepower sensors and AMP for Endpoints connectors, and identifies hosts that exhibit signs of compromise or infection. The IOC feature uses predefined rules based on Cisco Talos intelligence and other sources to detect IOCs on hosts. One of these rules is CnC Connected, which indicates that a host has communicated with a command-and-control (CnC) server that is known to be associated with malware activity2.

To view the IOC information for a host, the network administrator can navigate to Analysis > Hosts > Indications of Compromise in Cisco FMC, and select a host from the table. The IOC Details page will show the IOC events for that host, including the CnC Connected event, along with other information such as severity, timestamp, source, destination, protocol, and rule name. The network administrator can also view more details about each IOC event by clicking on it2.

The other options are incorrect because:

Analysis > Files > Malware Events shows information about files that have been detected as malware by Firepower sensors or AMP for Endpoints connectors. This does not show information about hosts that are infected with malware or have communicated with CnC servers3.

Analysis > Hosts > Host Attributes shows information about hosts that have been discovered by Firepower sensors, such as IP address, MAC address, operating system, applications, users, vulnerabilities, and so on. This does not show information about IOCs or CnC connections on hosts4.

Analysis > Files > Network File Trajectory shows information about files that have traversed your network and have been detected by Firepower sensors or AMP for Endpoints connectors. This allows you to track where a file came from, where it went, and what happened to it along the way. This does not show information about hosts that are infected with malware or have communicated with CnC servers5.
