The Implementing and Operating Cisco Service Provider Network Core Technologies (350-501 SPCOR) (350-501)

The service provider must implement a QoS configuration that includes traffic policing to enforce the contracted bandwidth limits. Option B is the correct choice because it specifies a committed information rate (CIR) of 512 kbps, which matches the customer’s contracted rate. The configuration also includes a burst size that accommodates the Tc value of 125 ms, allowing for brief periods of higher traffic without dropping packets.  This setup ensures that under peak conditions, any traffic exceeding the contracted rate is either marked or dropped, thus preventing the customer from exceeding the agreed-upon bandwidth.  References  := For more detailed information on QoS configurations for Frame Relay networks, refer to the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials, which cover the principles of traffic policing and shaping in service provider environments

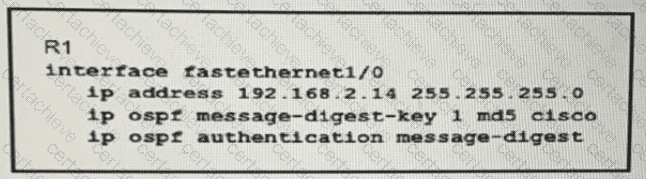

 In OSPF, for two routers to establish communication, they must have the same key ID and key value on their interfaces. This ensures secure communication between the OSPF peers. The key ID and value are part of the OSPF authentication mechanism that helps in validating the identity of OSPF peers before exchanging routing information.  References : Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) -  Cisco SPCOR Training & Certification

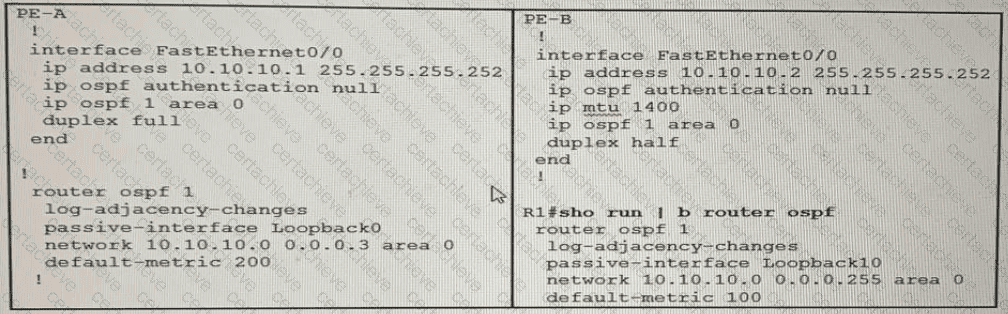

The OSPF neighbor relationship is not establishing due to a mismatch in MTU (Maximum Transmission Unit) settings on the interfaces of PE-A and PE-B routers. On PE-A, there is no MTU configuration under the interface FastEthernet0/0, which means it is using the default MTU setting. However, on PE-B, the MTU is explicitly set to 1400 bytes with “ip mtu 1400” command under interface FastEthernet0/0. OSPF requires that both ends of a point-to-point link have matching MTU sizes to form a neighbor relationship; otherwise, OSPF adjacency will not be established.

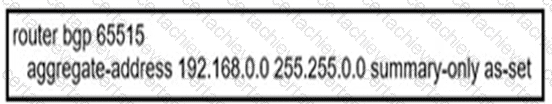

The configuration snippet in the exhibit shows that BGP summarization is configured with the “aggregate-address” command followed by an IP address and a subnet mask, and then the “summary-only” and “as-set” options. The IP address is 192.168.0.0, and the subnet mask is 255.255.0.0, which corresponds to a /16 prefix length (indicating that the first 16 bits of the IP address are the network portion). However, there seems to be a typo in option B as it’s not a valid IP address format; hence option A is correct with an assumption of typo error.

 The number “2” in the SNMP server configuration “snmp-server community ciscotest ro 2” refers to the numeric name of the Access Control List (ACL) that contains the list of SNMP managers with access to the agent. In this context, “ro” stands for read-only access, meaning that SNMP managers can only read but not modify data on the device. The ACL identified by number “2” specifies which SNMP managers are authorized to access SNMP data on this device using the community string “ciscotest”.

To view login history for users who activated a session, the network administrator can use the  show netconf-yang sessions  command. This command provides information about active NETCONF/YANG sessions, including the login times for each user.

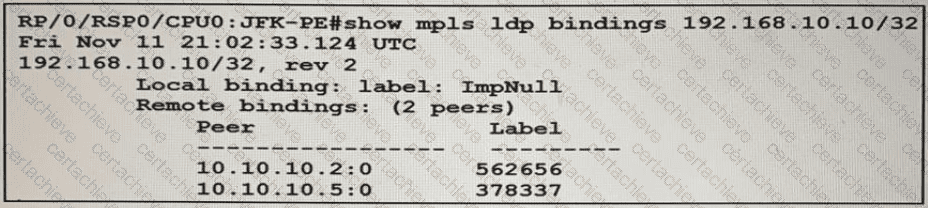

The term ‘ImpNull’ in the CLI output indicates that Label 0, also known as the “Implicit Null” label, is used for the prefix displayed. This label instructs the penultimate router in an MPLS network to pop the label before forwarding the packet to the ultimate hop, which is the egress router. Therefore, Label 0 will not be part of the MPLS label stack for packets destined for 192.168.10.10 (Option A). This process is known as Penultimate Hop Popping (PHP) and is used to optimize the forwarding process by reducing one level of lookup at the egress router (Option D).

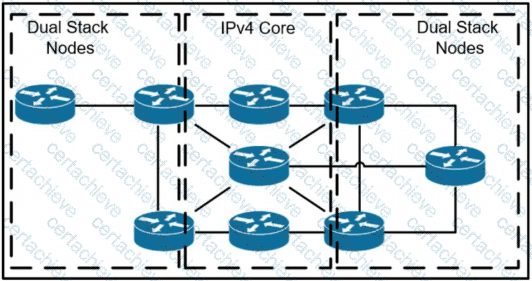

The network operator needs to provide connectivity between two IPv4 and IPv6 dual-stacked networks using specific assigned IPv6 space.  NAT46  (Network Address Translation 46) is the appropriate technology for this scenario. It allows translation between IPv4 and IPv6 addresses, enabling communication between the dual-stack networks. NAT46 maps IPv6 addresses to IPv4 addresses and vice versa, facilitating seamless communication across different address families.  References : Implementing and Operating Cisco Service Provider Network Core Technologies

When implementing LDP NSF on your network, enabling NSF for the link-state routing protocol in use on the network is essential to ensure continuous forwarding of packets during a failure scenario. Additionally, enabling NSF for BGP ensures that BGP sessions are not dropped during a switchover, maintaining network stability and uptime.
