The FCP - FortiWeb 7.4 Administrator (FCP_FWB_AD-7.4)

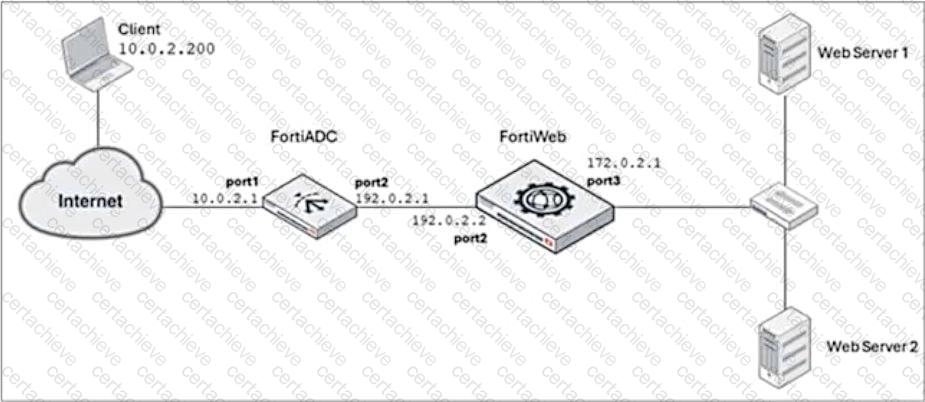

Place FortiWeb in front of FortiADC: This configuration change places FortiWeb between the client and FortiADC, so that FortiWeb can directly inspect and protect the incoming traffic before FortiADC applies SNAT (Source Network Address Translation). By placing FortiWeb in front, it will have access to the real client IP addresses, and it will be able to properly identify and handle attack traffic without blocking legitimate client traffic.

Enable and configure the Use X-Forwarded-For setting on FortiWeb: This setting allows FortiWeb to extract the original client IP address from the X-Forwarded-For header in the HTTP request, which is inserted by FortiADC when performing SNAT. With this setting enabled, FortiWeb will be able to block traffic based on the original client IP address rather than the SNATed IP address (192.0.2.1), preserving the accuracy of the security measures.

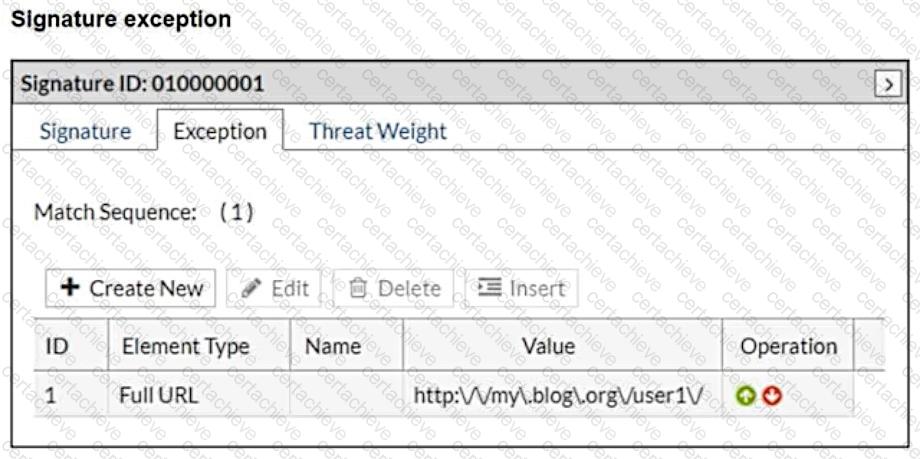

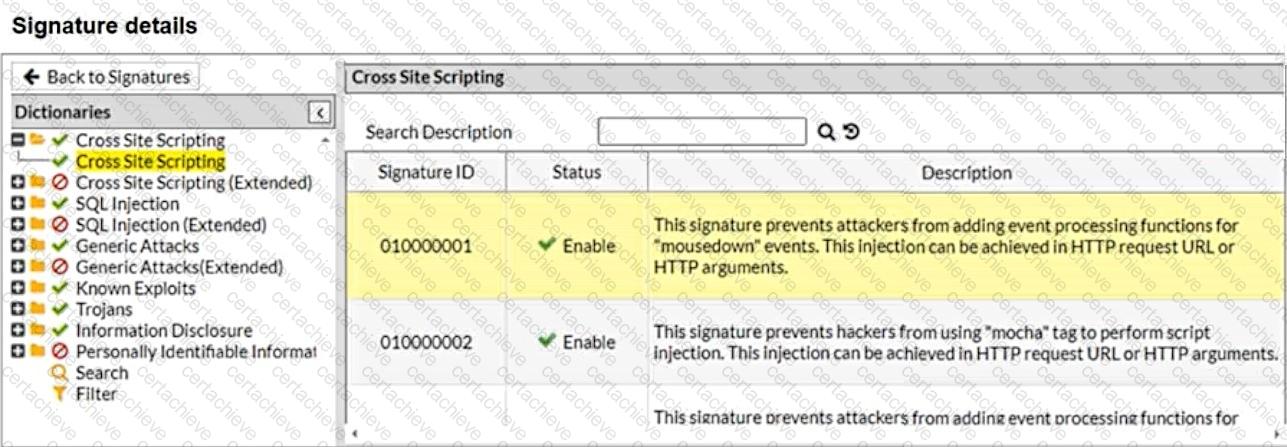

In the provided configuration, the signature exception has been set for the URL http://my.blog.org/user1V. This means that any request to this specific URL will bypass the signature ID 01000001, which is designed to block cross-site scripting (XSS) attacks using the mousedown event. As the request comes from the URL http://my.blog.org/userl1/blog.php, which does not match the exception rule for http://my.blog.org/user1V, the attack will be allowed through.

Therefore, the connection will be allowed because the exception rule bypasses protection for the specified URL.

If a client has been incorrectly blocked due to a period block, the FortiWeb administrator can manually release the IP address from the blocklist. This allows the client to access the application again before the block expires naturally.

In Fortinet's high availability (HA) configurations, integrating FortiWeb with a traffic distributor like FortiADC is best achieved using the Active-Active HA mode. This mode allows multiple FortiWeb appliances to operate simultaneously, distributing traffic loads and enhancing both performance and redundancy.​

FortiWeb supports several HA modes:​

Active-Passive : One appliance actively handles all traffic, while the other remains on standby, ready to take over if the active unit fails.​

Active-Active : Multiple appliances actively process traffic concurrently, sharing the load and providing redundancy.​

High Volume Active-Active : An enhanced version of Active-Active, designed for environments with exceptionally high traffic volumes.​

When integrating with a traffic distributor like FortiADC, the Active-Active mode is particularly advantageous. FortiADC can intelligently distribute incoming traffic across multiple active FortiWeb appliances, optimizing resource utilization and ensuring high availability. This setup not only balances the load but also provides fault tolerance; if one appliance becomes unavailable, FortiADC can redirect traffic to the remaining active units without service interruption.​

This collaborative approach between FortiWeb and FortiADC ensures that web applications remain secure, performant, and resilient against failures.

In SAML (Security Assertion Markup Language) deployments, the Identity Provider (IdP) is responsible for storing and managing user authentication credentials, such as usernames and passwords. The IdP authenticates the user and then issues a SAML assertion to the Service Provider (SP), which allows the user to access services without needing to re-enter credentials.

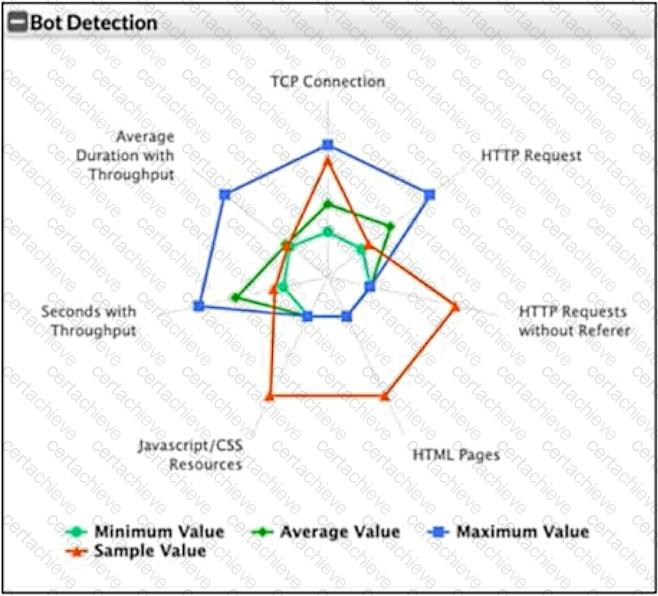

In the SVM plot of potential bot activity, you can see that the sample value (orange) is significantly different from the average value (green) and the maximum value (blue) in most of the metrics. This suggests unusual or abnormal behavior, indicating that the connection might be a bot. Typically, bots exhibit patterns that diverge from normal user activity, such as higher frequencies of certain types of requests, abnormal throughput, or an unusual pattern of HTTP requests (such as requests without referers or excessive TCP connections).

When FortiWeb is deployed upstream of a device performing source network address translation (SNAT) or load balancing, the original client IP address may be lost. To preserve the original client IP address, you must enable and configure the Preserve Client IP setting on FortiWeb. This allows FortiWeb to retain and pass the client's original IP address to the backend servers for accurate logging and processing.

The best way to limit brute force login attacks on FortiWeb is to configure a brute force login custom policy. FortiWeb provides the ability to detect and mitigate brute force login attempts by automatically limiting the number of failed login attempts within a specific time period. This approach allows you to block or rate limit suspicious IP addresses while still allowing legitimate users access, based on your configuration.

The quickest detection for an SQL injection attack like the one described ('root'; --) would be through known signatures. FortiWeb utilizes signature-based detection to match incoming traffic against predefined attack patterns. Since SQL injection attacks are commonly known and have specific patterns (such as 'root'; --), known signatures would immediately recognize and flag this type of attack.
